2 x BEAM LED 150 + RACK
99PAV013

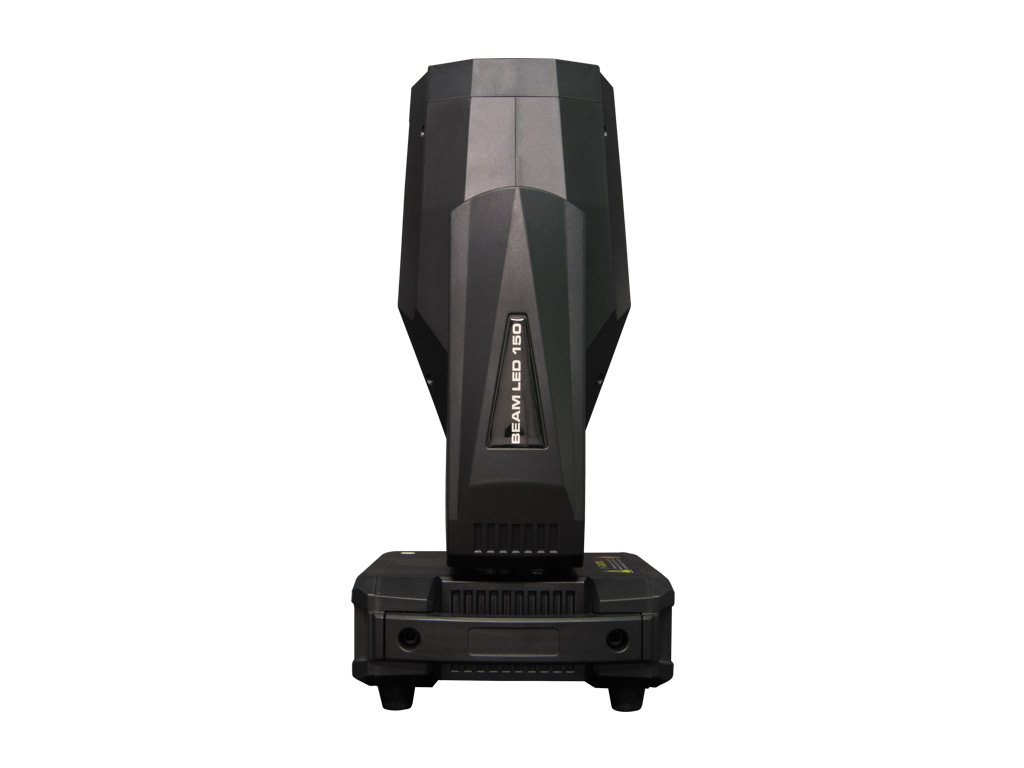

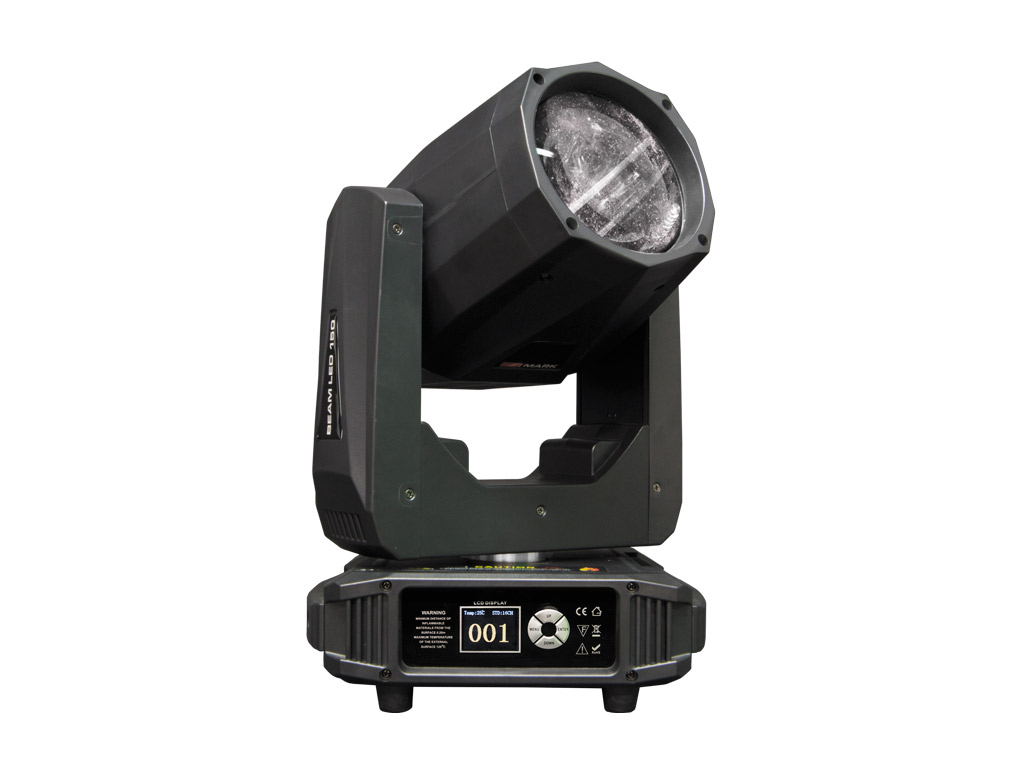

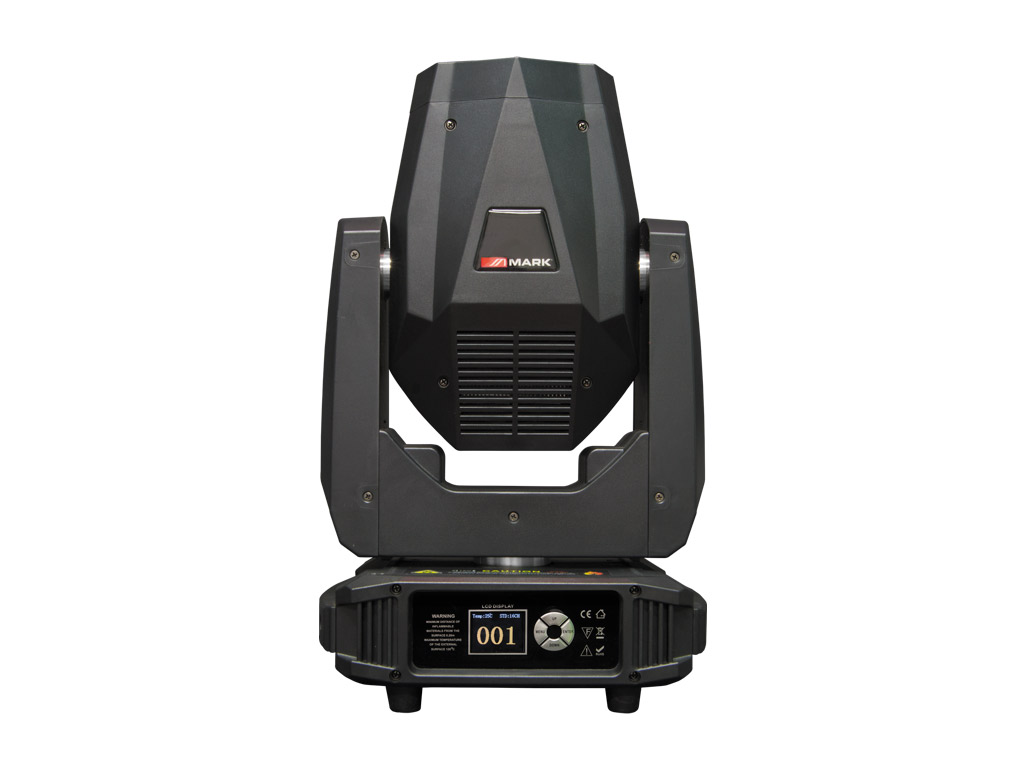

Beam moving LED head.
BEAM LED 150 is a moving head that combines advanced technology and a wide range of functionalities for the creation of all kinds of lighting events. It has 1 colour wheel with 13 colours + white, and an 11 gobo + spot wheel, including shaking function. It integrates 2 rotating prisms, functions such as strobe and focus. Its LCD display and buttons allow you to navigate through a complete menu system, including device information (internal temperature, motor check, PAN/TILT inversion, etc.). Includes 2 units of BEAM LED 150 and transport flightcase.
Features
- Moving head with spot functionality.
- 16/20 DMX channels.
- 13 colours + white.

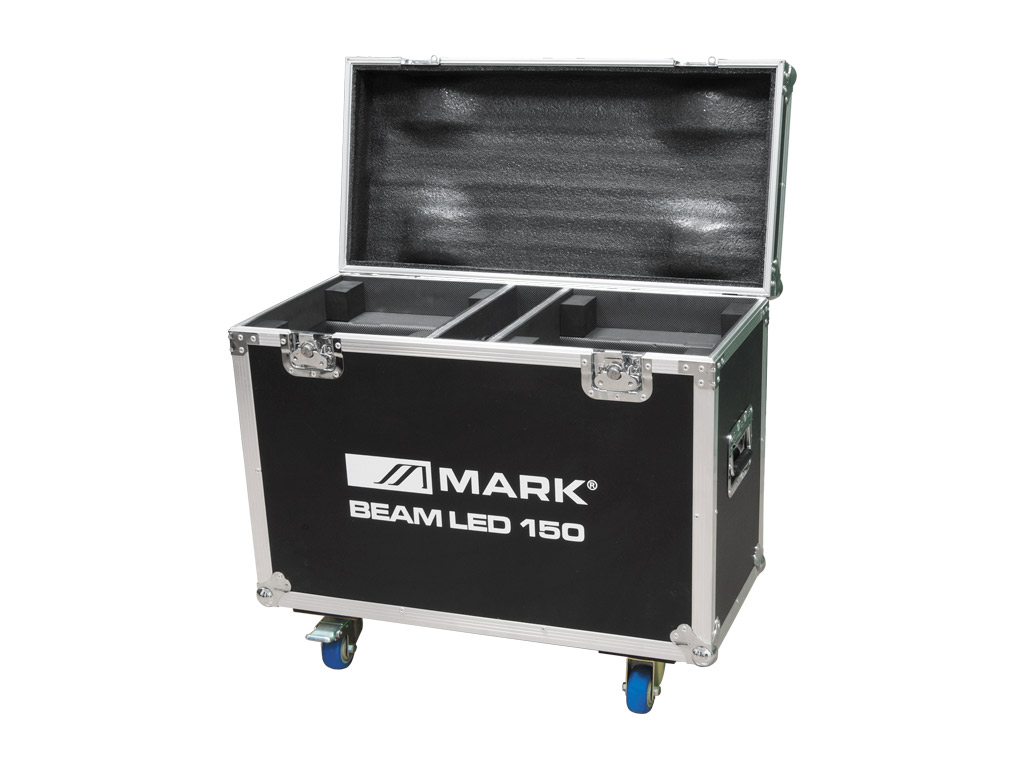

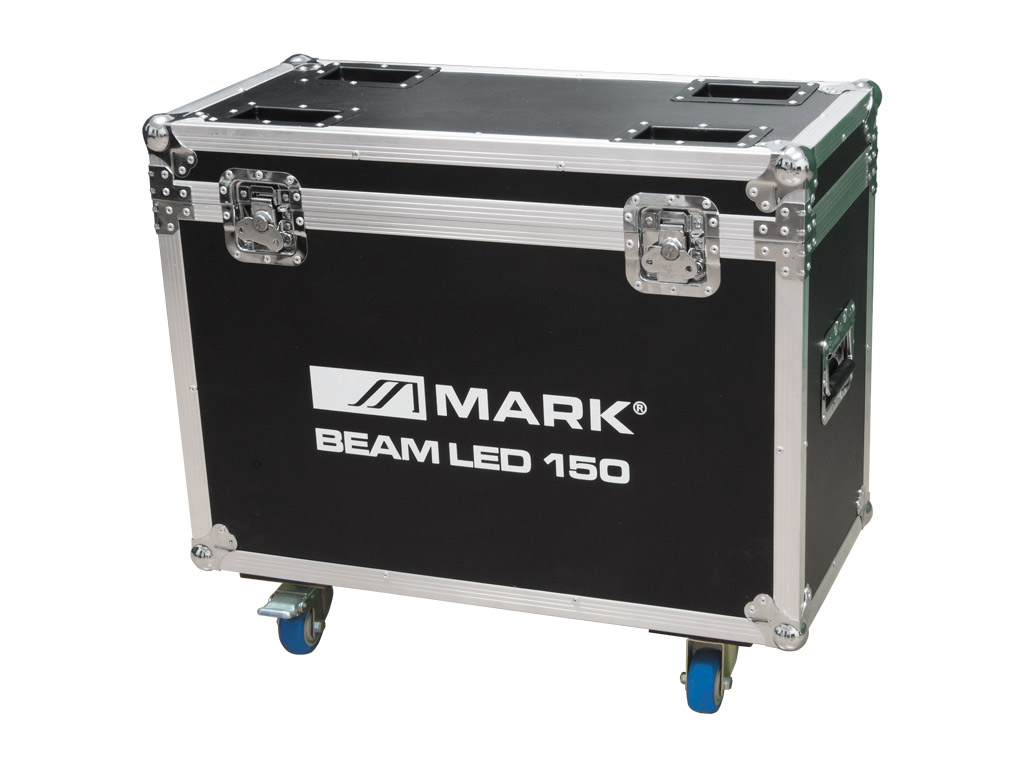

- 2 units of BEAM LED 150 and transport flightcase.
| Type | Beam |
| Light source / Color temperature | White LED |
| Power | 80 W |
| Beam angle | 0º - 4º |
| Modes channels | 16 / 20 channels |
| Indicators | 3-digit display |
| Controls | Power switch; Configuration push buttons |
| Colour | Black |

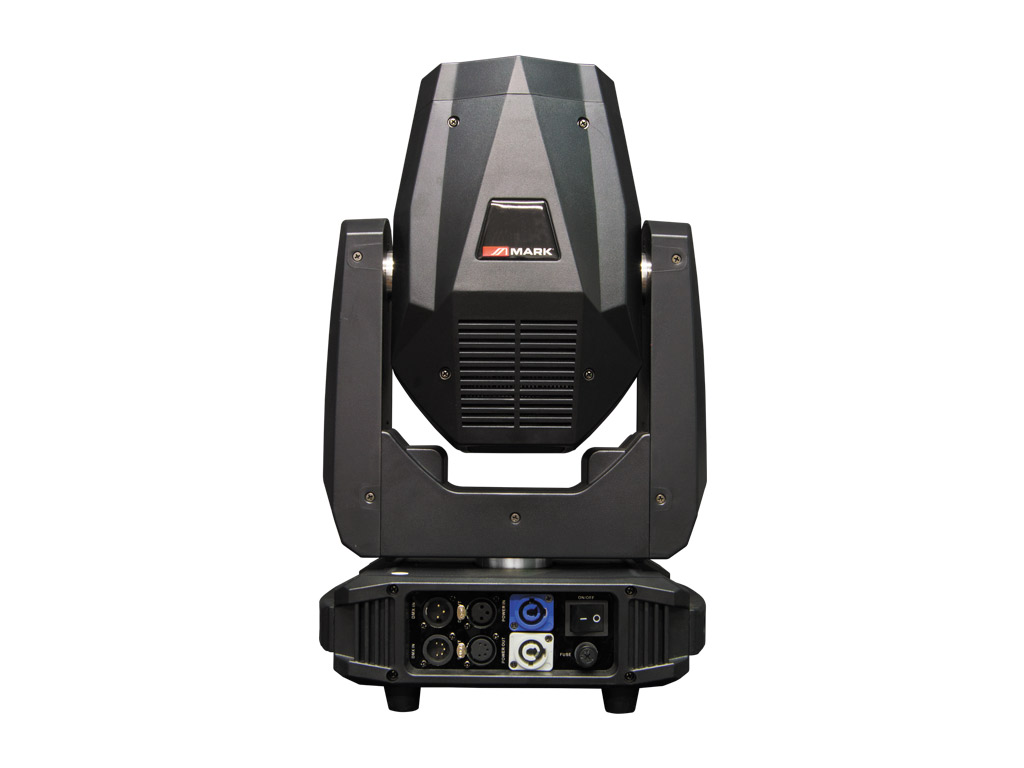

| Connections | XLR 3-pin |
| PAN / Resolution | 540º / 8-16 bit |
| TILT / Resolution | 270º / 8-16 bit |
| Dimmer / Flash | 0-100 Linear adjustment |
| Prism / Rotation | 2 / Yes |
| Gobo wheels | 11 gobos + spot. Static and shaking function |
| Color wheels | 13 colours + white |
| Power supply | 100-240 V 50/60 Hz |
| Consumption | 120 W |
| Dimensions | 285 x 490 x 230 mm |
| Weight | 7 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.29 | 0.23 | 0.49 | 7.00 |
- Moving head with spot functionality.
- 16/20 DMX channels.
- 13 colours + white.
- 11 gobos + spot. Static and shake function.
- 2 rotary prisms.
- Touch buttons & LCD display.
Manual | BEAM_LED_150_MANUAL_1_1 |  | Download |
Manual | BEAM_LED_150_MANUAL_V_1-2 | | Download |
Software | EQUIPSON_CHAMSYS_FIXTURES_03_2023 | | Download |
Others | BEAM_LED_150_DMX-CHANNELS_1_1 | | Download |
