Audio

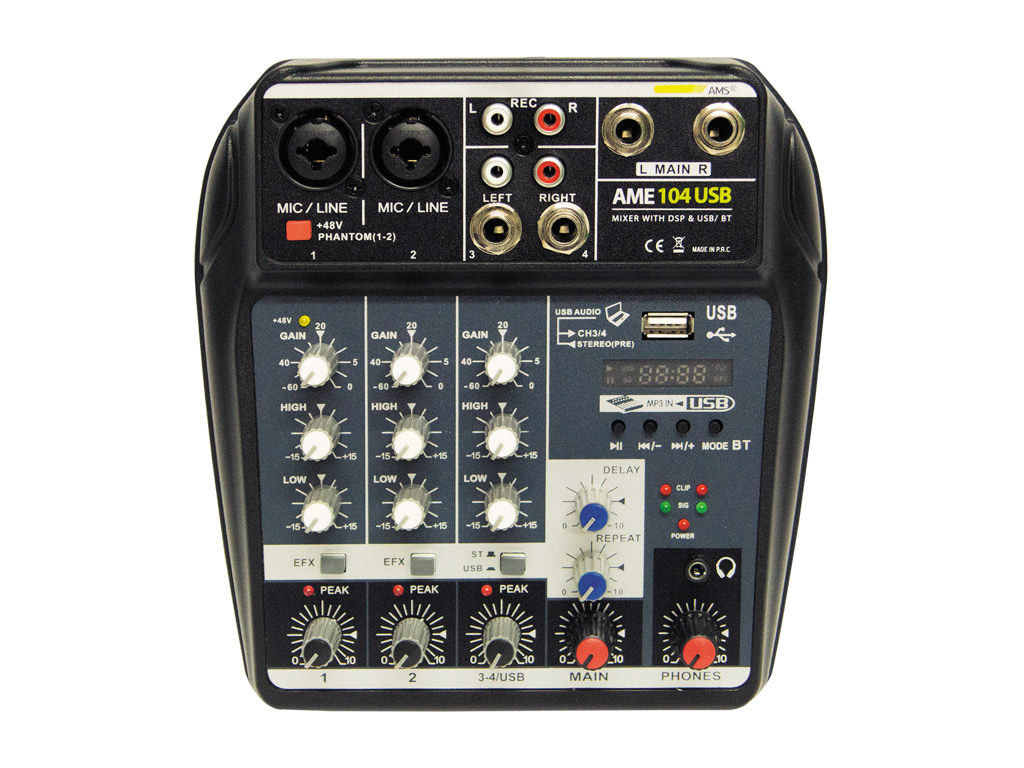

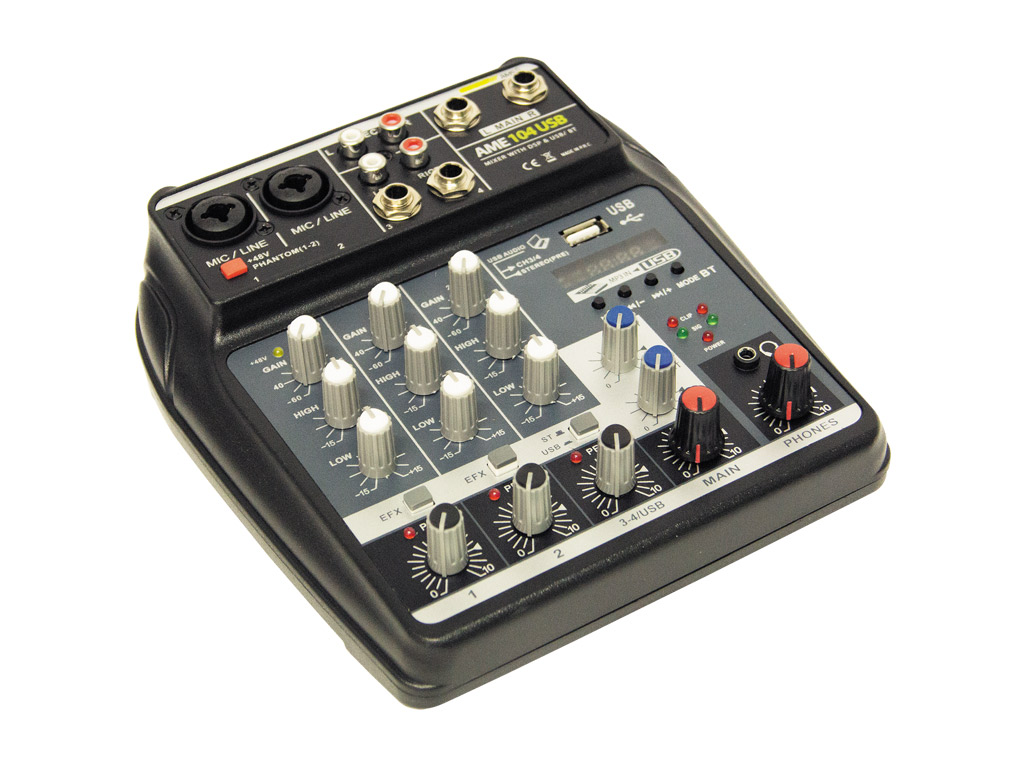

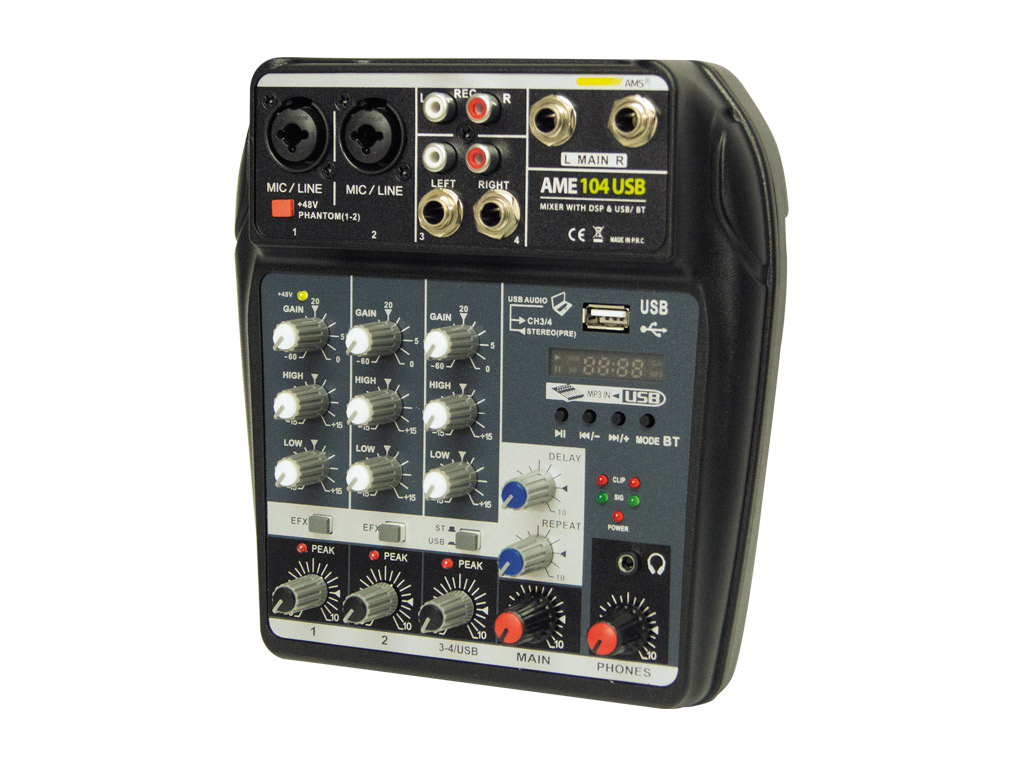

AME 104 USB

AMX01104

Analog audio mixer.

AME 104 USB is a compact mixer that incorporates 2 MIC / LINE inputs (with phantom power) + 1 stereo input. In addition, it includes USB interface and Bluetooth. Another interesting functionality is its behavior as a sound card, allowing mixing analog inputs with audio tracks from a PC.

All inputs have 2 tone controls and general reverb effect, as well as connectivity for external recording and headphones output.

Its wide variety of functions make it suitable for a multitude of applications: events, stages, party halls, mobile DJ, etc.



Analog Inputs
2x MIC/LINE (mono) - 1x LINE (Stereo)
Digital inputs
USB port + BT function
Phantom power
+48V (MIC 1+ MIC 2)
S/N Ratio
- 80 dB
THD
0.1%
Connections
Combi: Inputs 1 + 2, Jack ¼'': Input 3-4, RCA: Input 3-4
Jack ¼'': Outputs L-R, RCA: Rec output, Minijack: Headphones
Micro USB: Main supply & Sound card function
Main Supply
5V DC (AC external power supply included)
Dimensions (WxHxD)
190x180x55 (mm)
Weight
500 g
Length(m)Width(m)Height(m)Weight(kg)
Product0.190.180.060.50
Box0.070.230.220.62
Master Carton0.470.250.386.80
  • 4 channel mixer.
  • 2 mono inputs MIC/LINE (+48V phantom power).
  • 1 stereo input (LINE level) .
  • USB/BT interface.
  • 2 tone control on each input.
  • Reverb effect.
  • Record function.
  • USB connection for sound card purpose.
  • Headphones connection.
  Manual
Download
