AMT 520 C

50AMT520

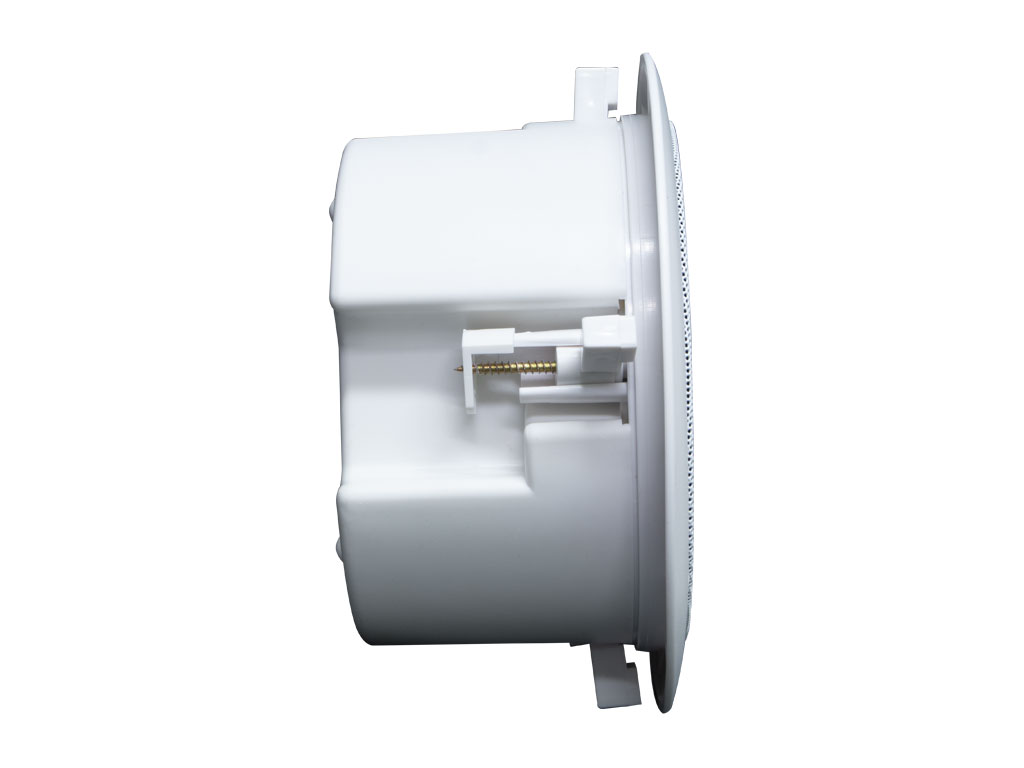

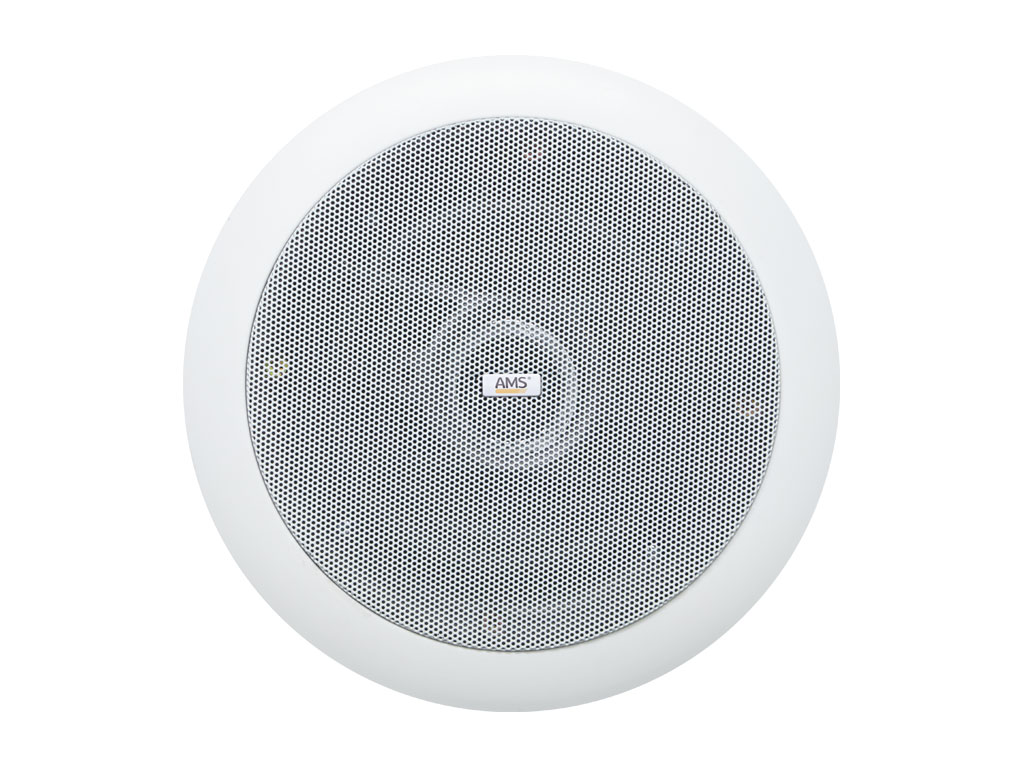

Ceiling loudspeaker.

AMT 520 C is a two way ceiling loudspeaker for 100V line installation. It has 2 selectable power ratings (10W and 20W). ABS plastic housing and metal grille. It incorporates a 5" speaker with a 1" tweeter.

Features

  • Enclosed area.
  • 20/10 W @ L100V.

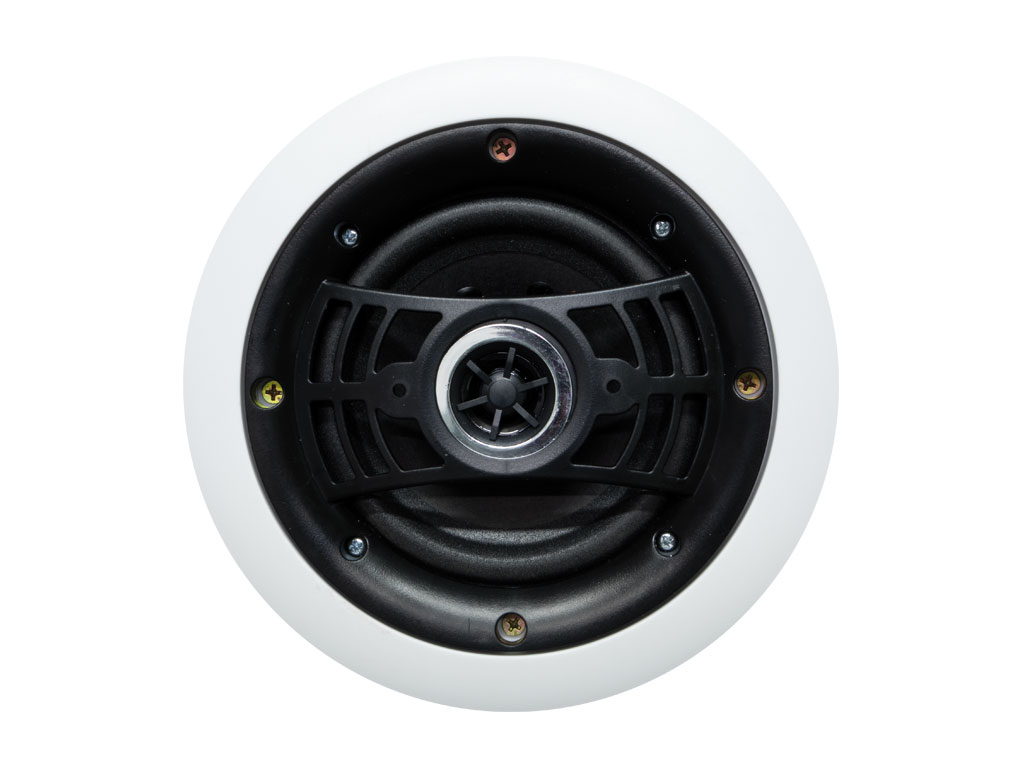

  • Woofer 5 inches + Tweeter 1 inch.
  • ABS plastic and metal grille.
Type2-way. Passive
L100V Power20 / 10 W
LF Transducer5" woofer
HF Transducer1" tweeter
Frequency Range70 Hz - 20 KHz
Sensitivity90±3 dB
MaterialHousing: ABS plastic; Grille: metal
ColourWhite
Dimensions 203 x 105 mm
Weight1.1 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.200.200.111.10
Box0.210.210.111.20
Master Carton0.430.640.3924.00
  Manual		Download
