COB SPOT 50 5
28MAR060

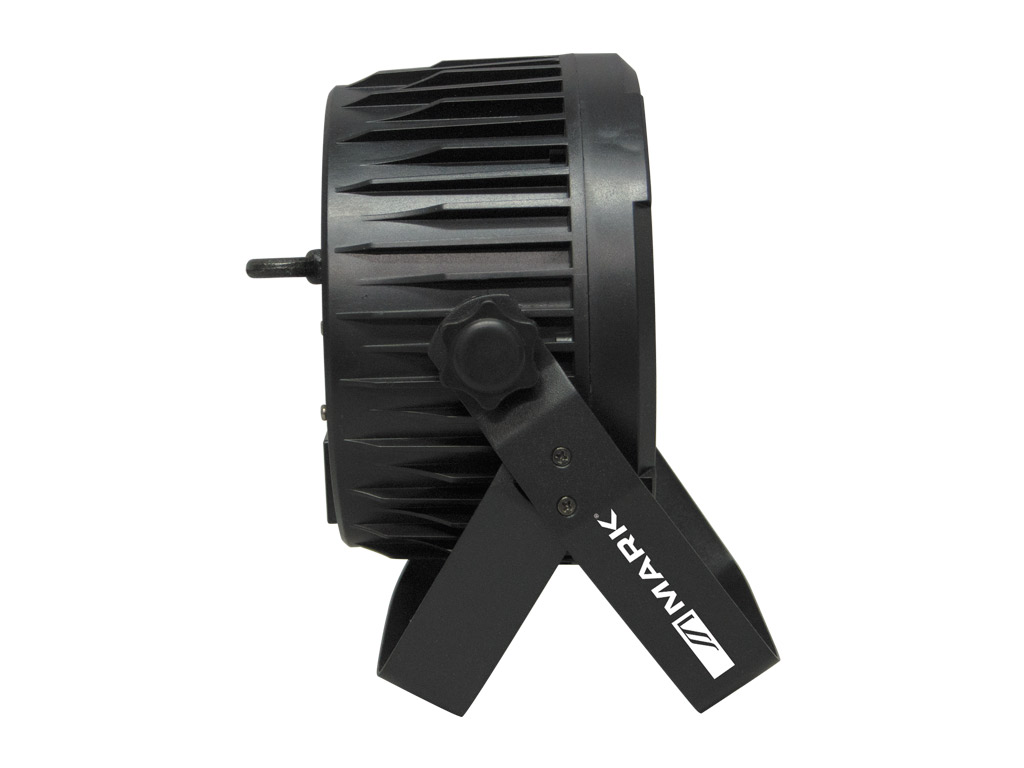

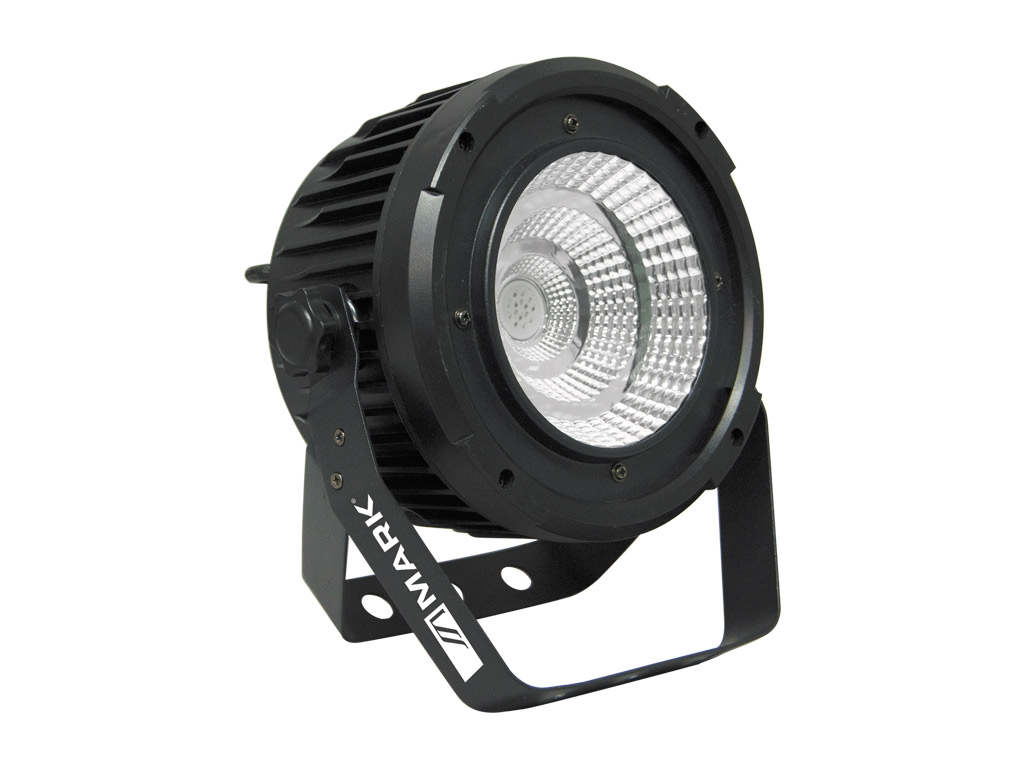

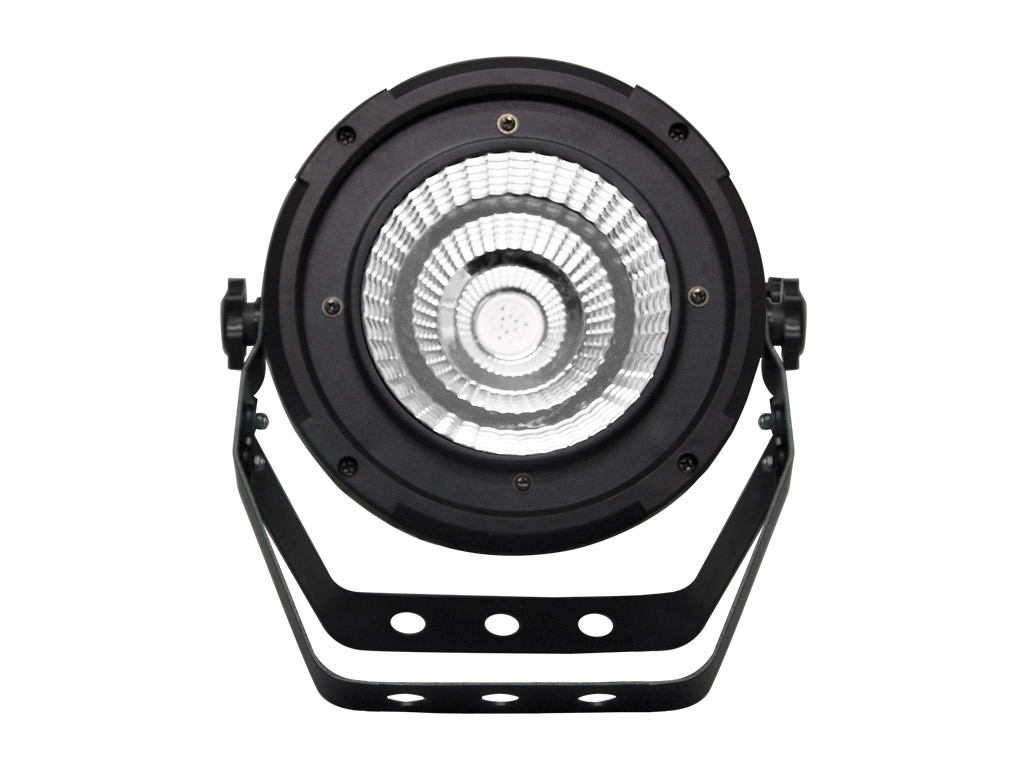

Lighting projector.
COB SPOT 50 5 is a projector which includes 1x COB LED RGBWA (5 in 1) of 50W. This device allows to obtain rich colour variations mixing these 5 tones.
The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as manual dimmer, fixed colours and two strobe modes with speed control.
The device includes DMX mode (9 channels) with individual dimming level, strobe function and automatic program.
Features
- 1 x RGBWA COB LED.
- 9 DMX channels.
- Beam angle 60º.
- Double U bracket.
| Light engine | 1 x RGBWA COB LED |
| Power | 50 W |
| Beam angle | 60º |
| DMX channels | 9 |
| Operating modes | DMX 512 /Manual/Audio/Auto/Master-Slave |
| Controls | Configuration menu navigation buttons |
| Indicators | 4-digit display |

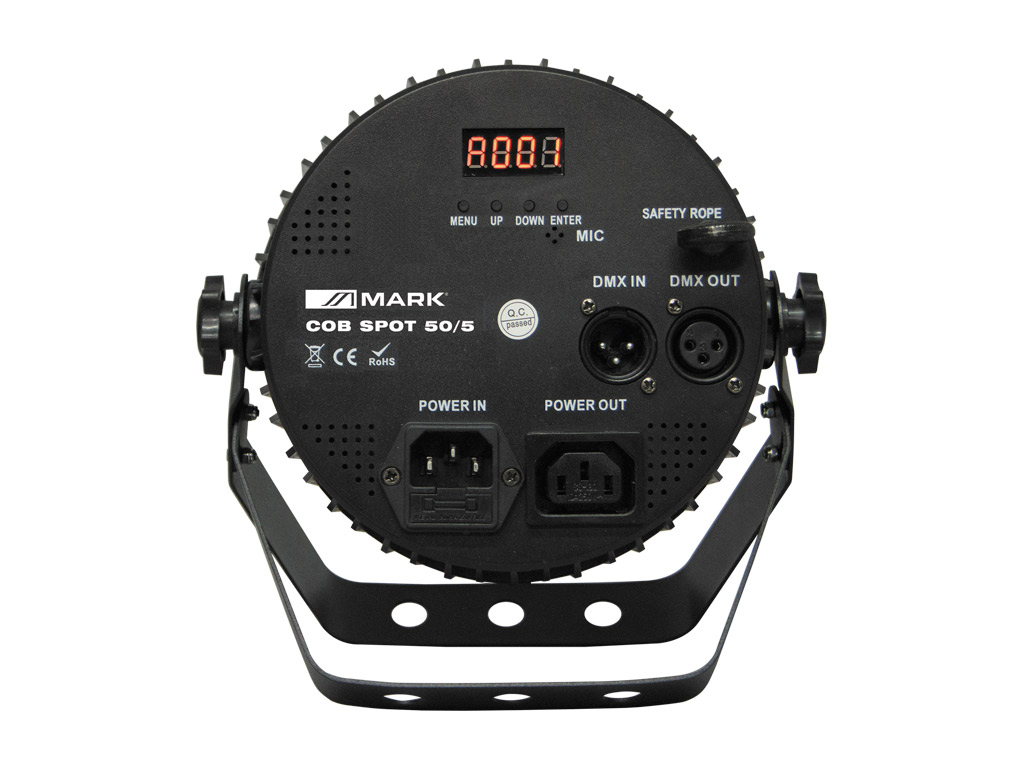

| Connections | Power supply: IEC in and out; DMX: XLR3 in and out |
| Housing material | Aluminium |
| Colour | Black |
| Rigging | Double U-bracket |
| Power supply | AC 220-240V 50/60 Hz |
| Dimensions | 125 x 99 x 170 mm |
| Weight | 1.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.17 | 0.13 | 0.10 | 1.10 |
| Box | 0.25 | 0.21 | 0.15 | 1.34 |
| Master Carton | 0.65 | 0.44 | 0.33 | 17.14 |
- Lighting projector that includes 1x COB LED RGBWA (5 in 1) of 50W.
- Display and interface for setting functions.
- 31 fixed colour variation.
- Strobe function.
- Double fixation handle.
Manual | COB_SPOT_50_5_MANUAL_v1_2 |  | Download |
