IC 511 T
82MEG136
Ceiling speaker

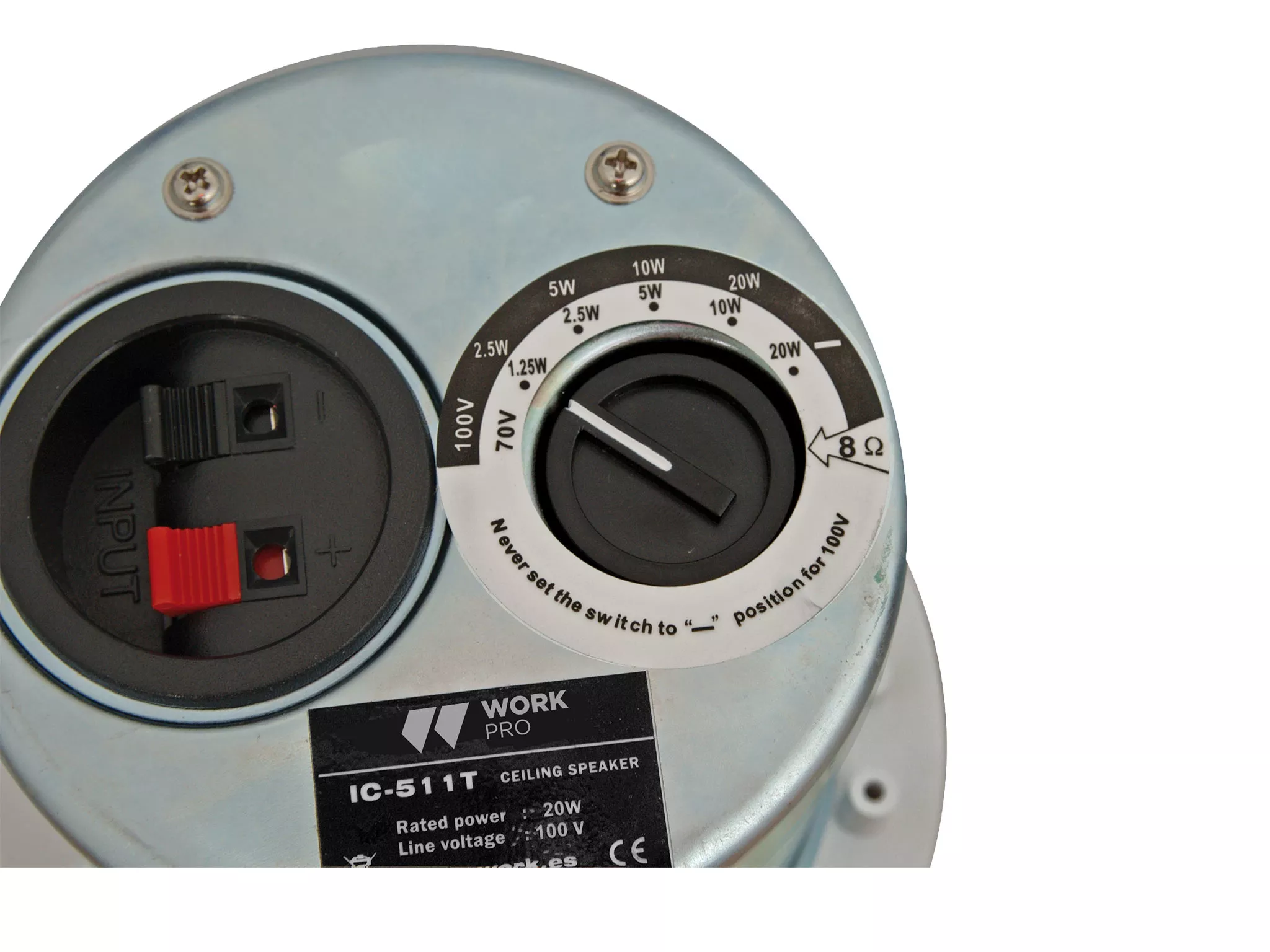

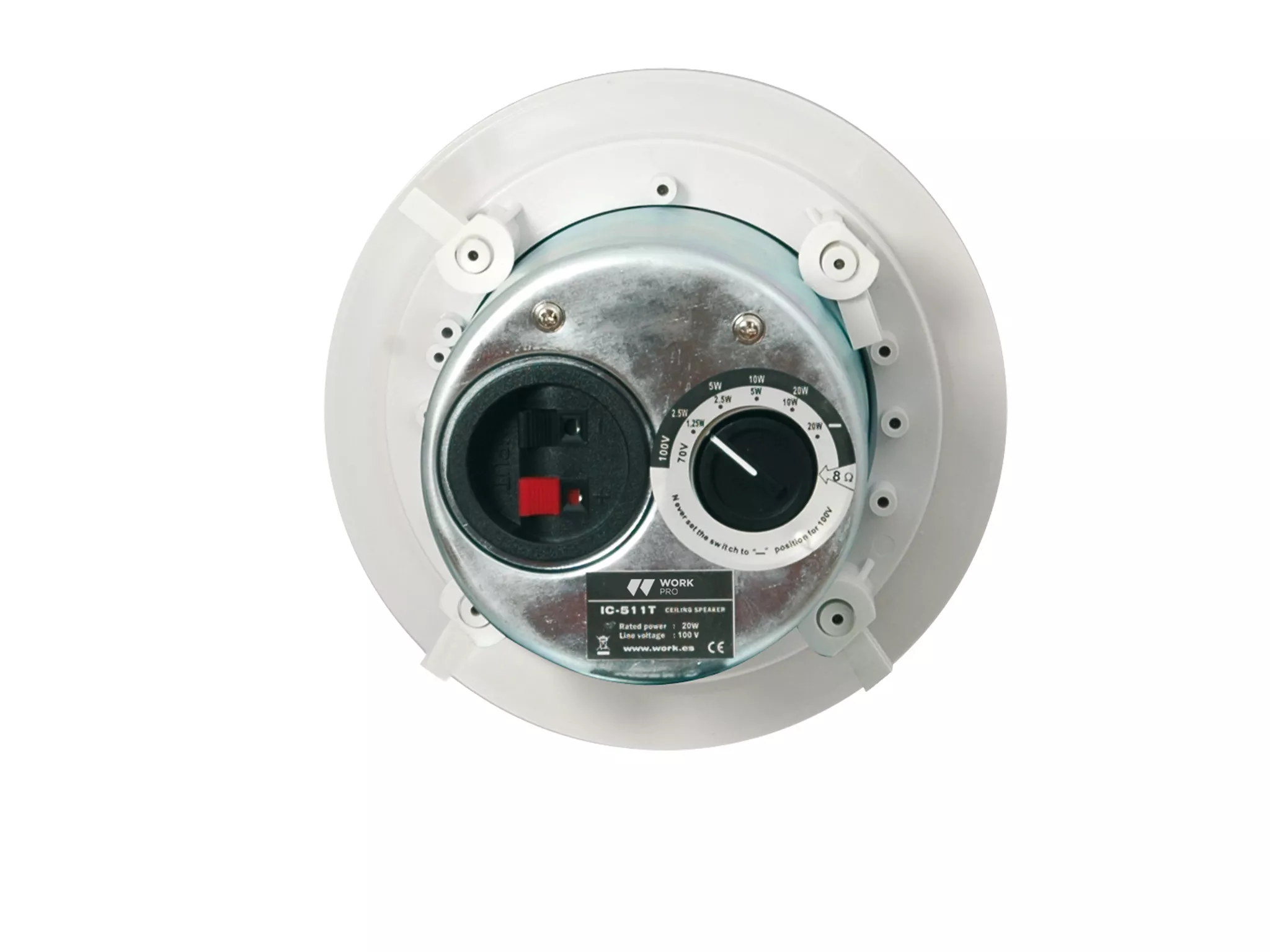

IC 511T is ideal for setting spaces with excellent sound quality, thanks to a latest generation woofer and tweeter. Its filter and transformer system (housed in the metal fireproof enclosure) ensures the great resistance of the speakers, which also incorporates a selector with several power positions (70/100 V and another for low impedance).
Features
- Low impedance and 70/100 V line.
- Metal enclosure.
| Type | 2 way. Passive |
| Low Impedance Power | 20 W @ 8 Ohm |
| L100V Power | 2.5W (4 KOhm) / 5W (2 KOhm) / 10W (1 KOhm) / 20W (500 Ohm) |
| L70V Power | 1.25W (3k9 Ohm) / 2.5W (1k9Ohm) / 5W (980Ohm) / 10W (490Ohm) / 20W (245Ohm) |
| LF Transducer | Woofer 5" |
| HF Transducer | Tweeter 0.5" |
| Frequency Range | 100 Hz - 20 KHz |
| Coverage | 150º x 150º @ 1 KHz; 80º x 80º @ 4 KHz |
| Sensitivity | 88 dB |
| Max SPL | 101 dB |
| Mounting diameter | 170 mm |
| Fixation | Rotating anchors |
| Material | Enclosure: Metal; Grille: ABS plastic |
| Colour | White (RAL9016) |

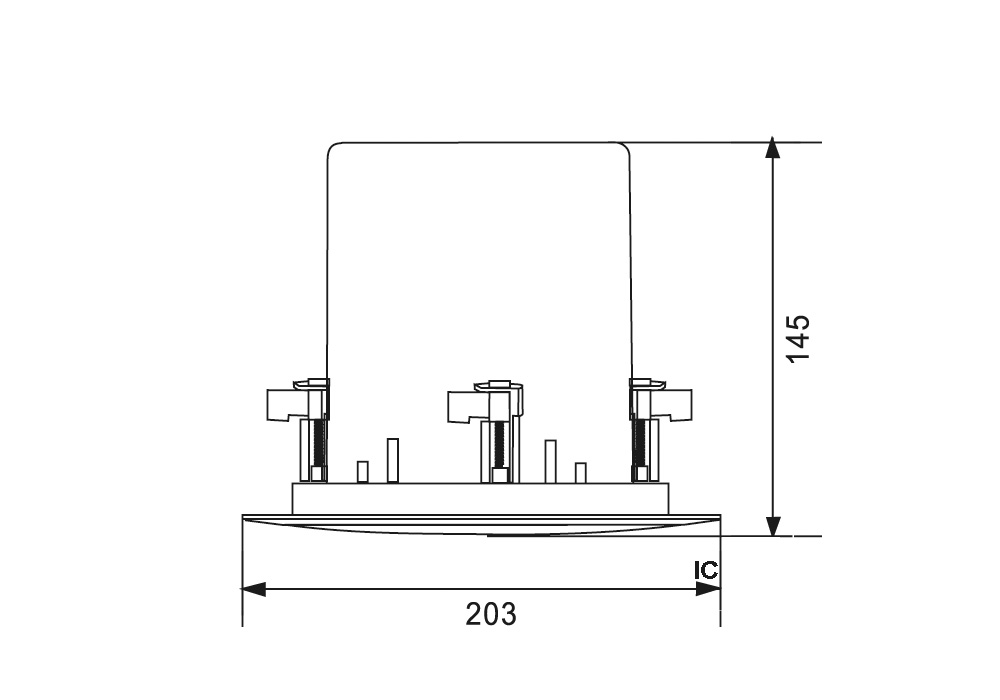

| Dimensions | Ø203 x 145 mm |
| Weight | 1.8 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.20 | 0.20 | 0.15 | 1.80 |
| Box | 0.25 | 0.24 | 0.18 | 2.10 |
| Master Carton | 0.52 | 0.49 | 0.40 | 18.06 |
