MAXMINI 4
82MAR024
2 Mono + 2 stereo inputs mixer with USB/BT

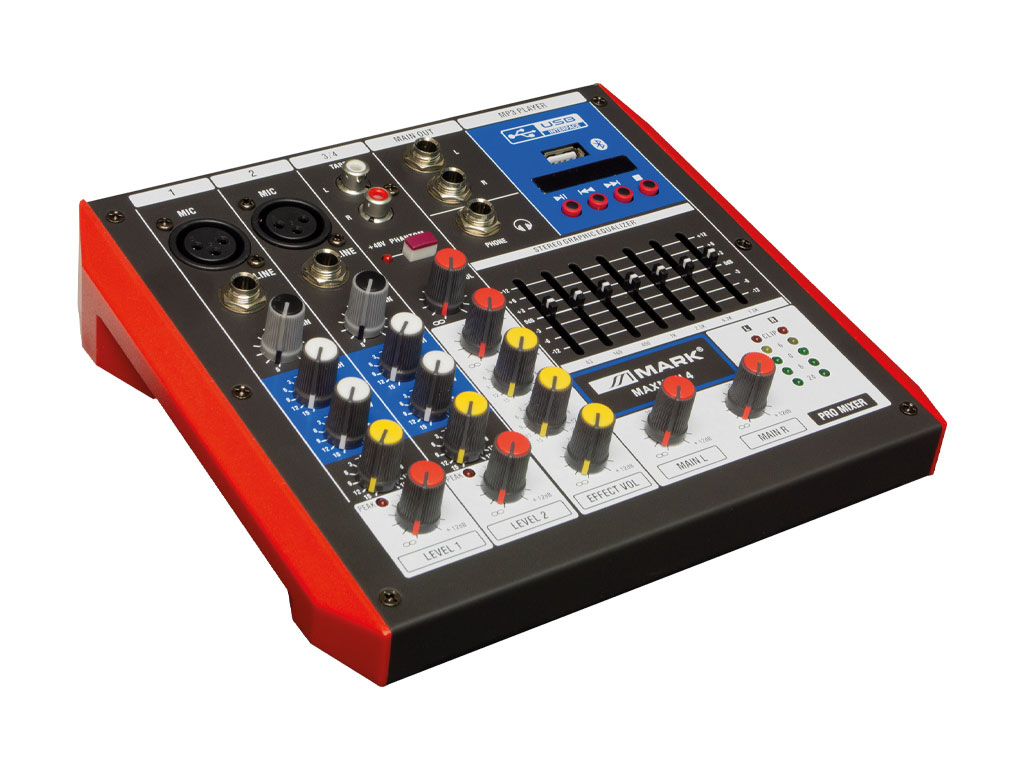

MAXMINI 4 is an audio mixer with 2 mono MIC/LINE channels and 1 stereo channel. Its MIC/LINE input channels incorporate phantom power for condenser microphones. It features an audio file player via USB/Bluetooth port, built-in effects, 2 tone controls per channel, 7-band stereo graphic equalizer on the master and headphone output.
Features
- 2 mono inputs + 2 stereo inputs.
- Phantom power +48 V.
- USB/Bluetooth interface.
- 7-band graphic equalizer and echo effect.
| Mono Ch | 2 Mic/Line |
| Stereo Ch | 1 Line |
| Player | USB and Bluetooth |
| Recorder | USB |
| Effects | Echo |
| Phantom Power | +48 V |
| Connectivity | USB and Bluetooth |
| Equalization | HI: 10 kHz ± 15 dB; LOW: 100 Hz ± 15 dB |
| Phones Output | Yes |
| Input Impedance | Mic: 3 KOhm; Line: 10 KOhm |
| Hum and noise | -128 dBu (Rs:150 Ohm¦, GAIN knob: max) |
| THD | 0.01% @ +8 dBu, 1kHz, 80 kHz |
| Power supply | AC 100 -240 V 50/60 Hz / DC 15V (External power supply included) |
| Dimensions | 205 x 55 x 190 mm (W x H x D) |
| Weight | 1 Kg |
Manual | MAXMINI_4_MANUAL_1-0 |  | Download |
Quick Guide | GuÃa Rápida_MAXMINI 4 | | Download |
Packaging | MAXMINI_4_Innerbox | | Download |
Packaging | MAXMINI_4_Outerbox | | Download |
Drawings | Novedad | | Download |
