MINO 8
50MIN00850MIN009
8'' passive loudspeaker. 200 W.
MINO 8 is a two-way passive loudspeaker with 200 W at 8 Ohm, made of wood. It consists of an 8" loudspeaker and a 1" compression driver and is equipped with XLN4 connections. This model is perfectly suited for pubs, social clubs or shops. In addition, the two available colours (black and white) make it easy to integrate the loudspeakers into the environment. A bracket is included to mount the loudspeakers on the wall.
Features

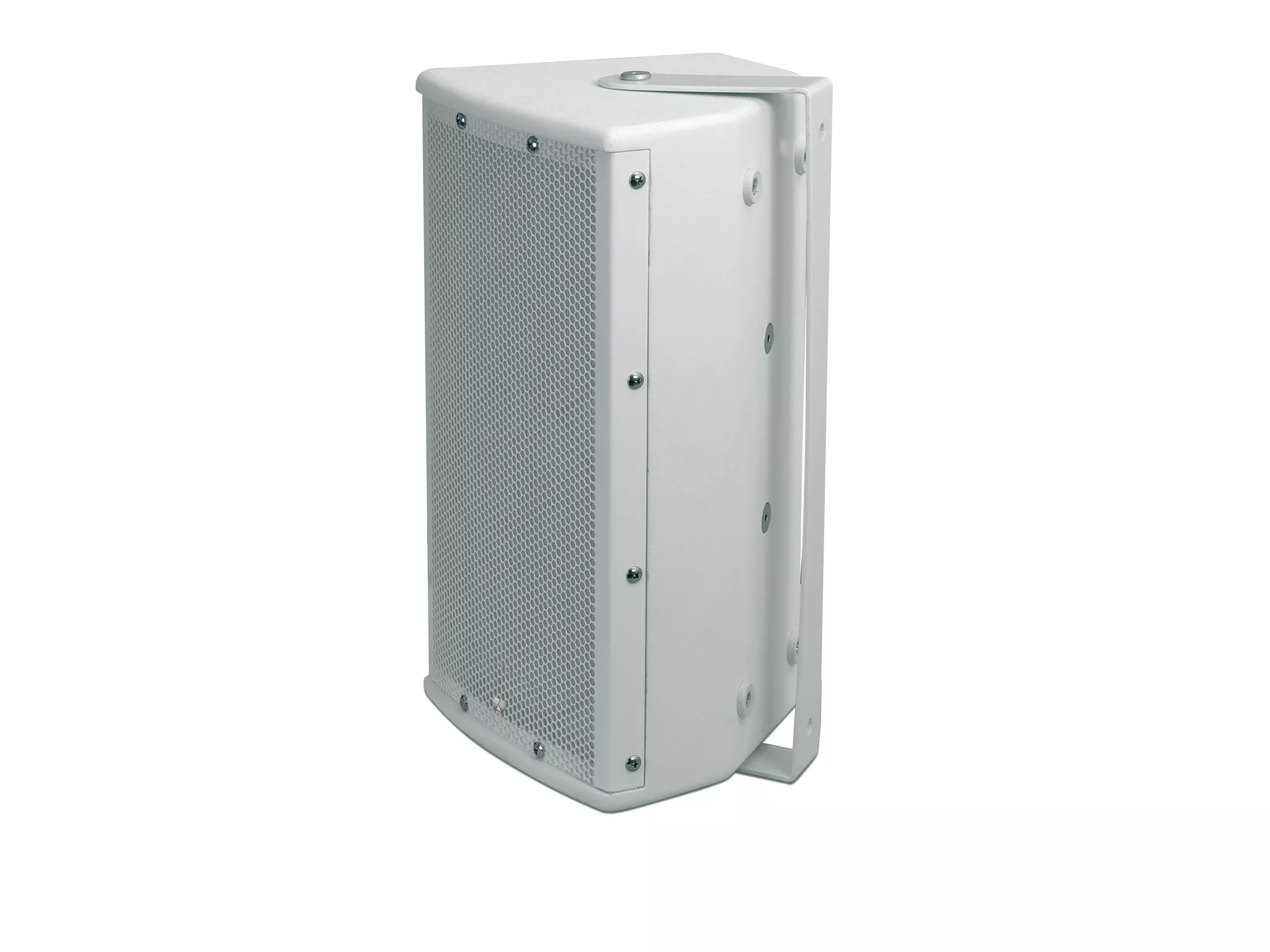

- Wall mounting bracket included.
- Made of wood with high resistance paint finish.
- Available in black or white.
- Supplied in pairs.
| Type | 2 ways. Passive |
| Power | 100 W RMS |
| Nominal Impedance | 8 Ohm |
| LF Transducer | 8" Woofer |
| HF Transducer | 1" Compression driver |
| Sensitivity (1W @ 1m) | 93 dB |
| Coverage Angle (H x V) | 140º x 140º |
| Frequency Range | 80 Hz - 19 KHz |
| Connections | 2 x XLN4 |
| Enclosure material | Wood |
| Colour | Black or white |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.25 | 0.25 | 0.41 | 8.00 |
| Box | 0.35 | 0.62 | 0.51 | 19.60 |
Manual | MINO 8 - Manual |  | Download |
