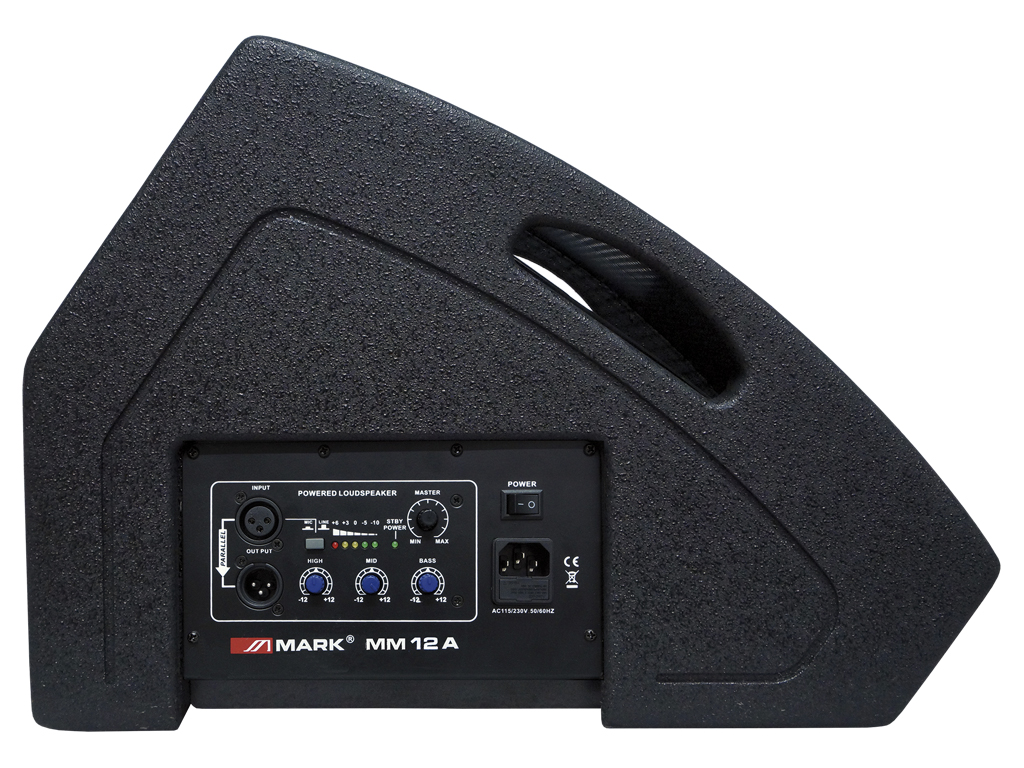

MM 12 A

50MMM013

Self powered coaxial monitor 12 inches.

MM 12 A is a 2-way active monitor, that it incorporates one coaxial transducer of 12 and  a 1.34" tweeter. The amplifier offers 300W AES of power, as three tone controls, providing a high sound pressure level with a straight frequency response. The cabinet is made of MDF, providing a high stoutness.

Features

  • Coaxial driver.
  • Side handles.
  • 35 mm bottom insert for support.
  • Made of Wood.
TypeCoaxial monitor. 2 ways. Self powered
Power150 W RMS
LF Transducer12" Woofer
HF Transducer1.34" Driver compression
Sensitivity (1W @ 1m)94 dB
Frequency Range75 Hz - 20 KHz
SPL Max121 dB
Enclosure materialMDF
ConnectionsPower: IEC, Audio In: XLR3 hembra, Audio link: XLR3 macho

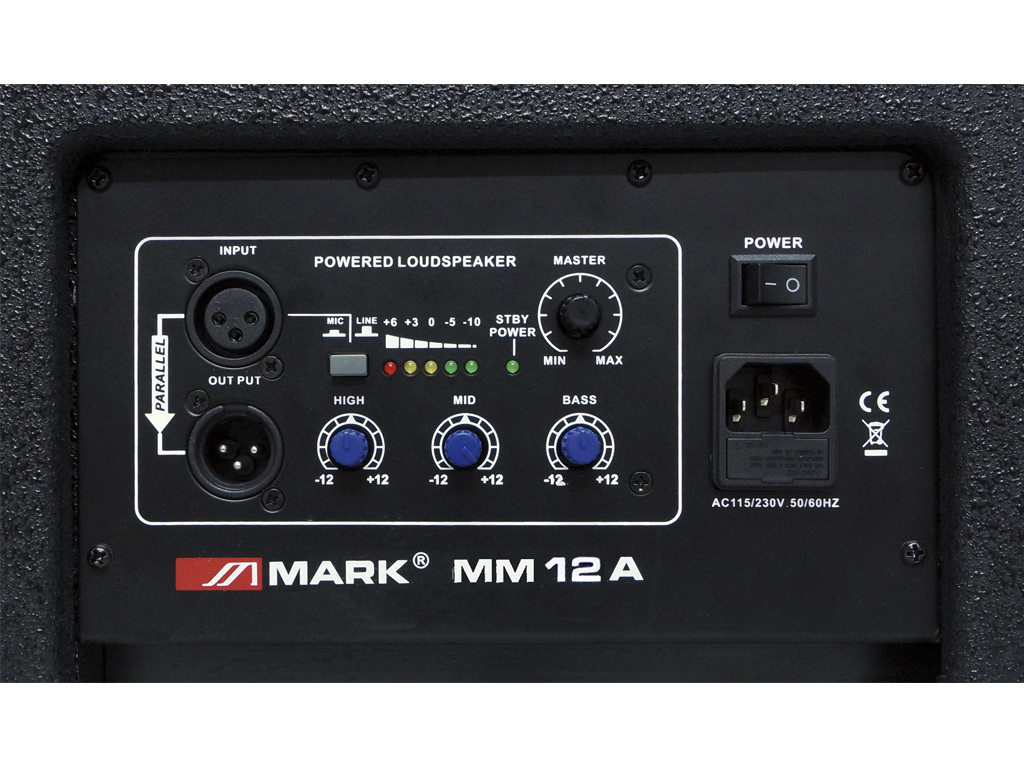

ControlsPower switch, Mic/line selector, Volume, Tone control (high, mid, low)
Inserts / RiggingSide handles, 35 mm insertion for stand
ColourBlack
Length(m)Width(m)Height(m)Weight(kg)
Product0.470.490.4219.00
Box0.440.490.5821.20
  Manual		Download
