MMP 5
82MAR500
MP3 player with Mic/Line input.
MMP 5 allows play MP3 files from external devices like USB memories or SD/MMC cards. Features 2 REPEAT modes ( single track or all tracks). Its 18x2 characters screen, shows the information about the played track, ID tag and elapsed time. Includes 5 equalization preset configurations and accessible from the front panel and on-screen (NORM, ROCK, POP, CLASS, COUNT).
Also features 2 frontal inputs: A MIC input with COMBI connector and another AUX as well as a LINE level rear input, all of them with their own volume control.The AUX input has priority over the USB/SD interface. For the general mix includes volume control and 2 tone controls ( bass/treble). The output signal can be done through its double connection ( balanced/unbalanced).
Features
- MP3 player and Bluetooth.
- Mic and Aux input.
- 5 EQ presets.
- 1 HU rack 19".
| Audio Formats | MP3 |
| Functions | REPEAT (single track or all tracks) ID tag readout, Mixer with MIC and LINE inputs, 5 EQ presets |
| Display | 18x2 character LCD display. |
| Connections | Combi XLR3/Jack 1/4" (Mic), XLR3 (balanced outputs), RCA (unbalanced outputs) |
| Controls | Front panel player controls, Microphone Volume, Player Volume, Tone Control (treble/bass), Master Volume |
| Power supply | 220 V AC 50 Hz |
| Dimensions | 483 x 44 x 155 mm |
| Weight | 2.4 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.16 | 0.48 | 0.04 | 2.40 |
| Box | 0.20 | 0.56 | 0.12 | 2.78 |
| Master Carton | 0.41 | 0.37 | 0.58 | 17.64 |
MP3 files Player.
USB port and slot for SD / MMC card.
18x2 character LCD display.
Reading ID tag.
REPEAT (single track or all tracks) function.
EQ function with 5 preset EQ levels.
Master volume control.
Additional inputs: MIC, LINE and AUX with separate volume controls.
Tone controls (bass / treble).

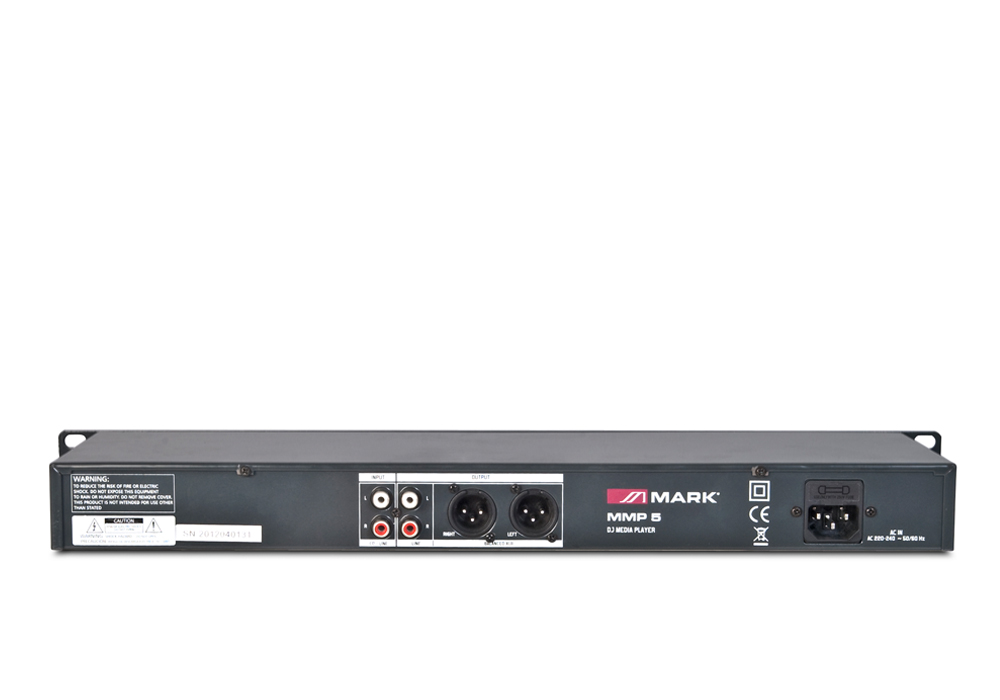

Balanced and unbalanced output.
Power supply: 220V AC 50/60 Hz
Dimensions: 483 x 44 x 155 mm.
Weight: 2.4 kg.
