RMI 9 PRO
64RMI009
19'' rack cabinet

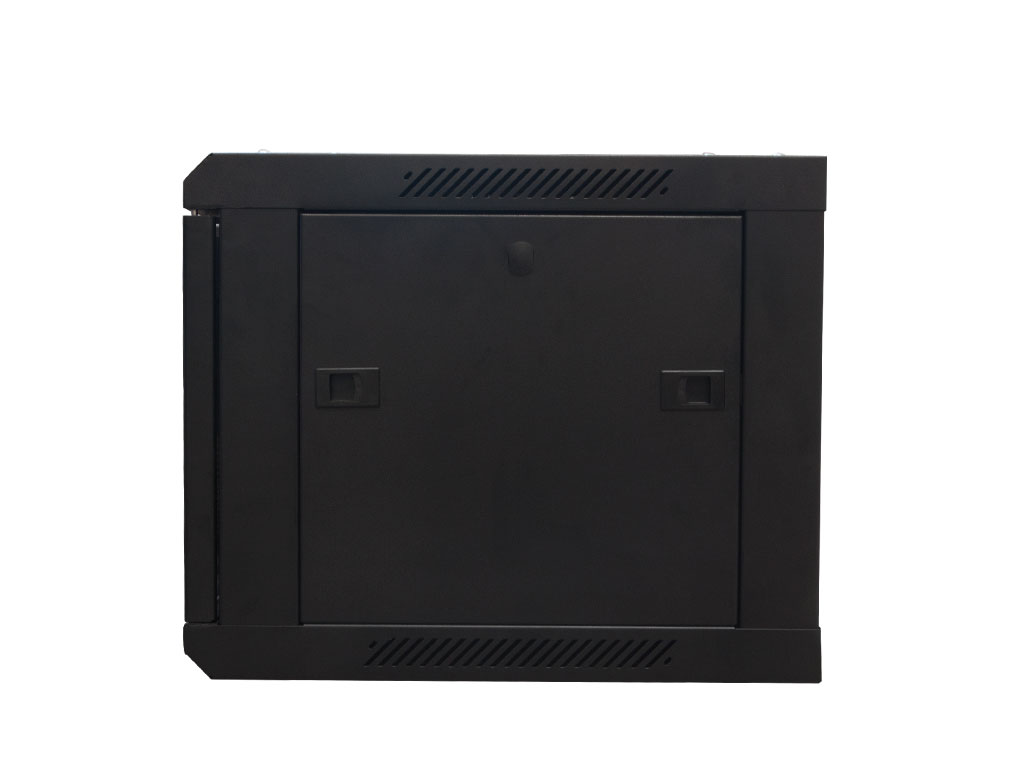

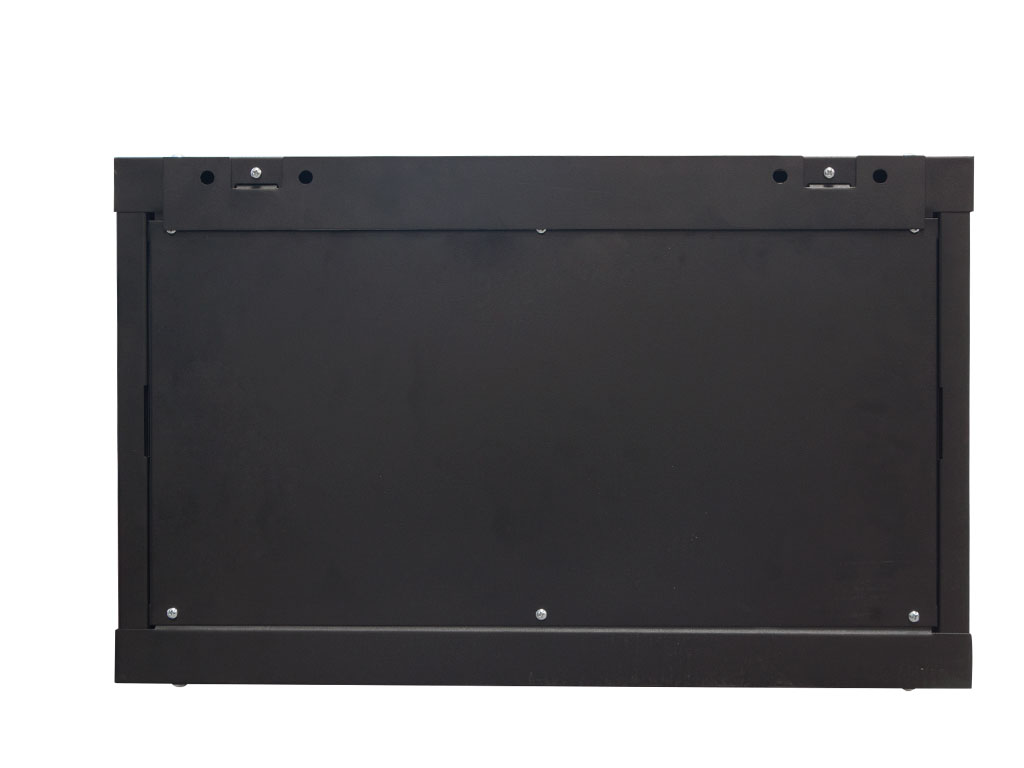

RMI 9 PRO is a 9 HU 19" wall-mounted rack cabinet for IT and installation. It offers a wide range of exceptional features which, together with its 60 kg static load capacity and cold rolled steel structure, make it perfect for professional use.
Features
- Made of steel.
- Tempered glass door with key lock.
- Perforations for fan installation (not included).
- Black cRemovable side panels and front door.olour.
| Material | Steel and temperate glass |
| Rack Units | 9 HU rack 19" |
| External dimensions | 450 x 600 x 500 mm |
| Rackable depth | 330 mm |
| Maximum Load | 60 Kg |
| Colour | Black (9005 RAL) |
| Weight | 18 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.45 | 0.60 | 0.50 | 18.00 |
| Box | 0.52 | 0.61 | 0.25 | 18.76 |
- 9U wall mount rack 19''.
- Usable depth (from front rack frame to back panel) 330 mm.
- Perforated top cover for 2 fans.
- Made of cold-rolled steel 1.2 mm., black colour (RAL 9005).
- Side panels with optional locks to avoid unauthorized access.
- Removable side panels and front door.
- Top/bottom cable entry openings which can be closed.
- Wall hanging panels available.
- Front door made of 5mm tempered glass and 1.2mm cold-rolled steel frame.
- Doors can be opened from left or right.
- Grounding screw inside.
- Cage nuts included.
- Supplied disassembled in flat-pack.
- Usable depth (from front rack frame to back panel) 330 mm.
- Perforated top cover for 2 fans.
- Made of cold-rolled steel 1.2 mm., black colour (RAL 9005).
- Side panels with optional locks to avoid unauthorized access.
- Removable side panels and front door.
- Top/bottom cable entry openings which can be closed.
- Wall hanging panels available.
- Front door made of 5mm tempered glass and 1.2mm cold-rolled steel frame.
- Doors can be opened from left or right.
- Grounding screw inside.
- Cage nuts included.
- Supplied disassembled in flat-pack.
Datasheet | Datasheet RMI 9 PRO |  | Download |
