SION 302 USB
50SIO009
DJ mixer 3 channels.

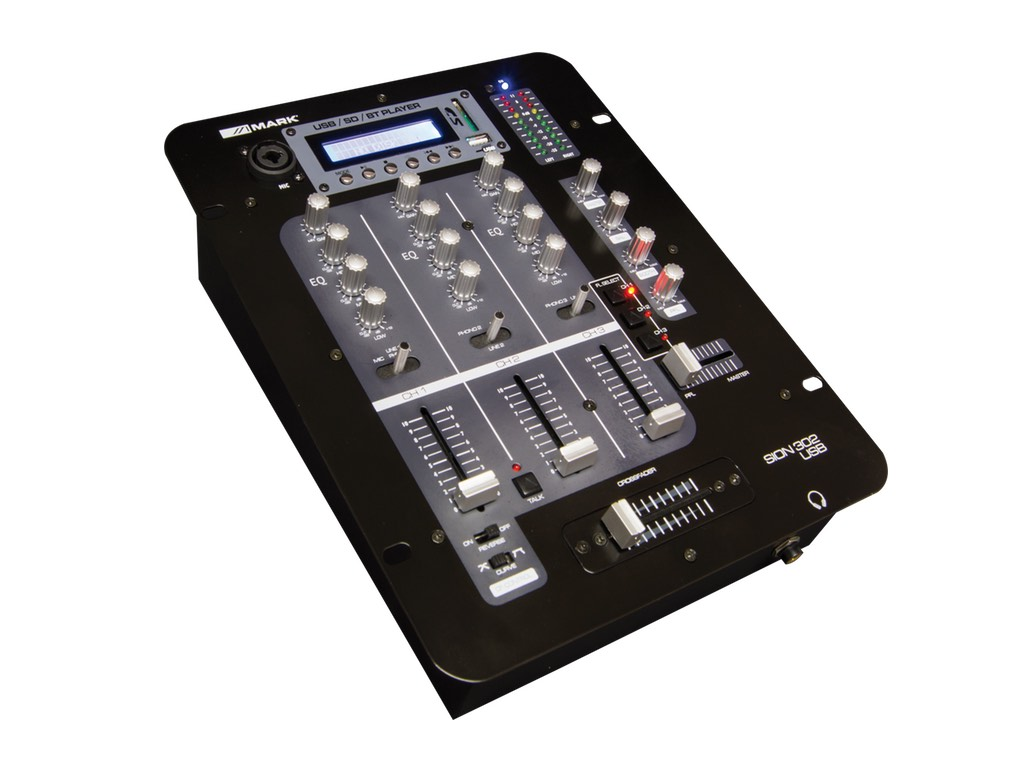

SION 302 USB is a mixer in small format with all the controls and functions that every DJ need. It has an MP3 player with USB, SD and Bluetooth inputs.
It has 3 channels and the possibility to connect up to 8 sources (3 lines, 3 phonos, microphone and MP3 player). It has balanced output (Master), and Rec and Booth outputs.
The front panel has a 20 LED vumeter, 3-band equalizer, curve crossfader control and knobs to control the balance of the master level, master level and booth level, as well as fine level adjustment of headphones.
Features
- MP3 Player USB/SD.
- Talkover function.
- Superglide dual-rail crossfader.
- XLR MIC IN.
| Type | DJ Mixer |
| Input Channels | 3 x line/phono (RCA), 1 x Mic (XLR3) |
| Output | Master (balanced XLR3, unbalanced RCA), REC and Monitor (RCA), Headphones (Jack 1/4" stereo) |
| Player | MP3 player USB, SD and Bluetooth |
| Equalization | 3 Tone controls Hi, Mid and Low. |
| Other functions | Crossfader, Talkover |
| THD | < 0.02 dB |
| S/N ratio | > 85 dB |
| Dimensions | 245 x 100 x 315 mm |
| Weight | 3 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.32 | 0.25 | 0.10 | 3.00 |
| Box | 0.28 | 0.36 | 0.17 | 3.58 |
| Master Carton | 0.38 | 0.58 | 0.37 | 15.36 |
Dj mixer with USB, Bluetooth and SD card slot, LCD Display and mp3 controls buttons.
Super smooth dual rail "ultraglide" crossfader with up to 500.000 life cycle, for channels 2 and 3.
Three dual input stereo channels with gain and 3 band EQ (max. att -32dB).
One microphone input (XLR 3).
Manual talkover function.
Crossfader reverse and curve function.
PFL function with master/pfl mix option.
Peak-hold level meter with dedicated PFL vumeter.
Master, Booth, Record and XLR balanced output.
Gold-plated RCA sockets for excellent audio quality.
Super-rugged construction ensures long life.
Manual | SION 302 USB - MANUAL |  | Download |
