Professional Audio
AM 5 BT
AMX02005
New Products!
Audio mixer with USB functionality to read and record audio tracks.

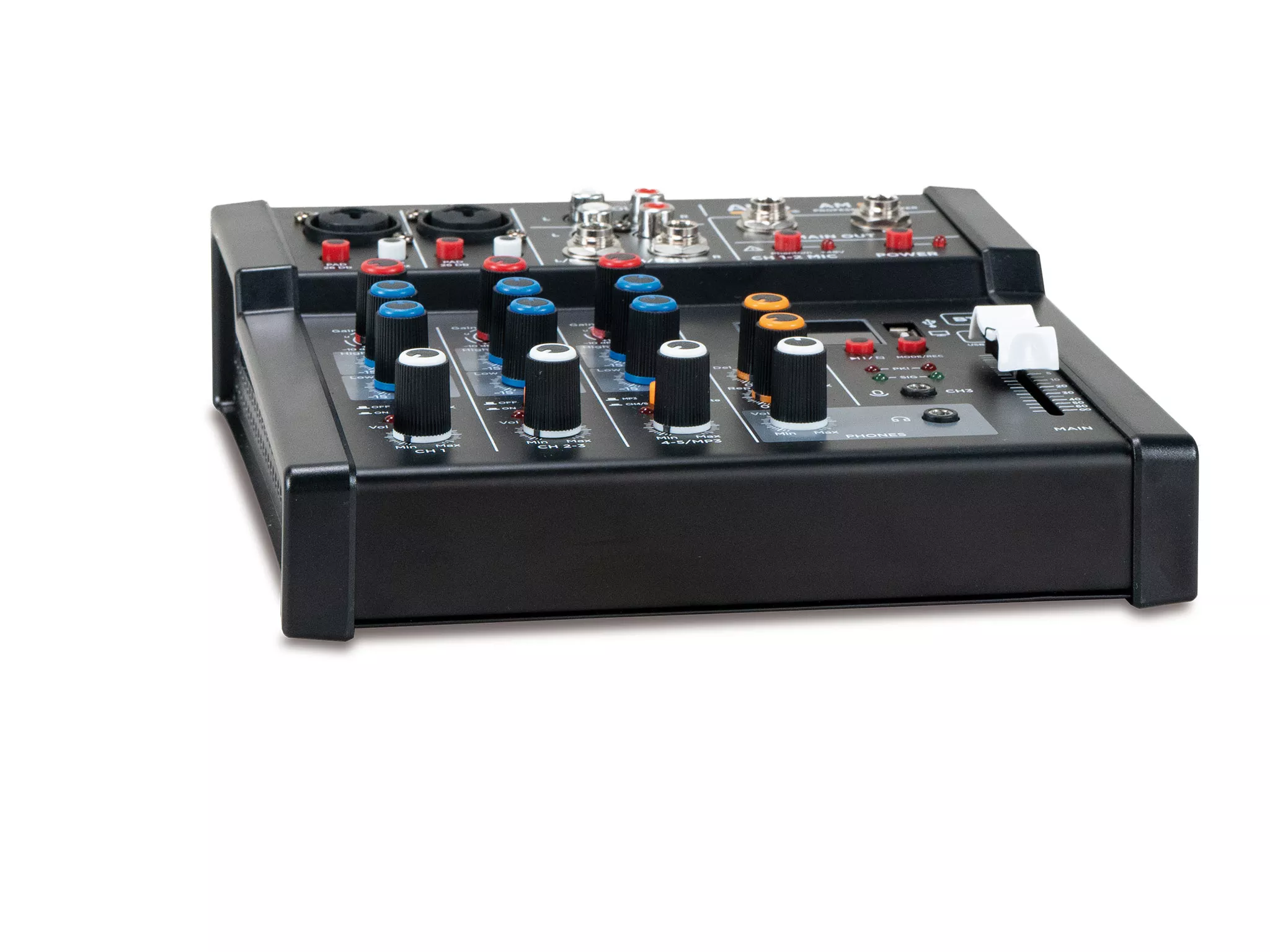

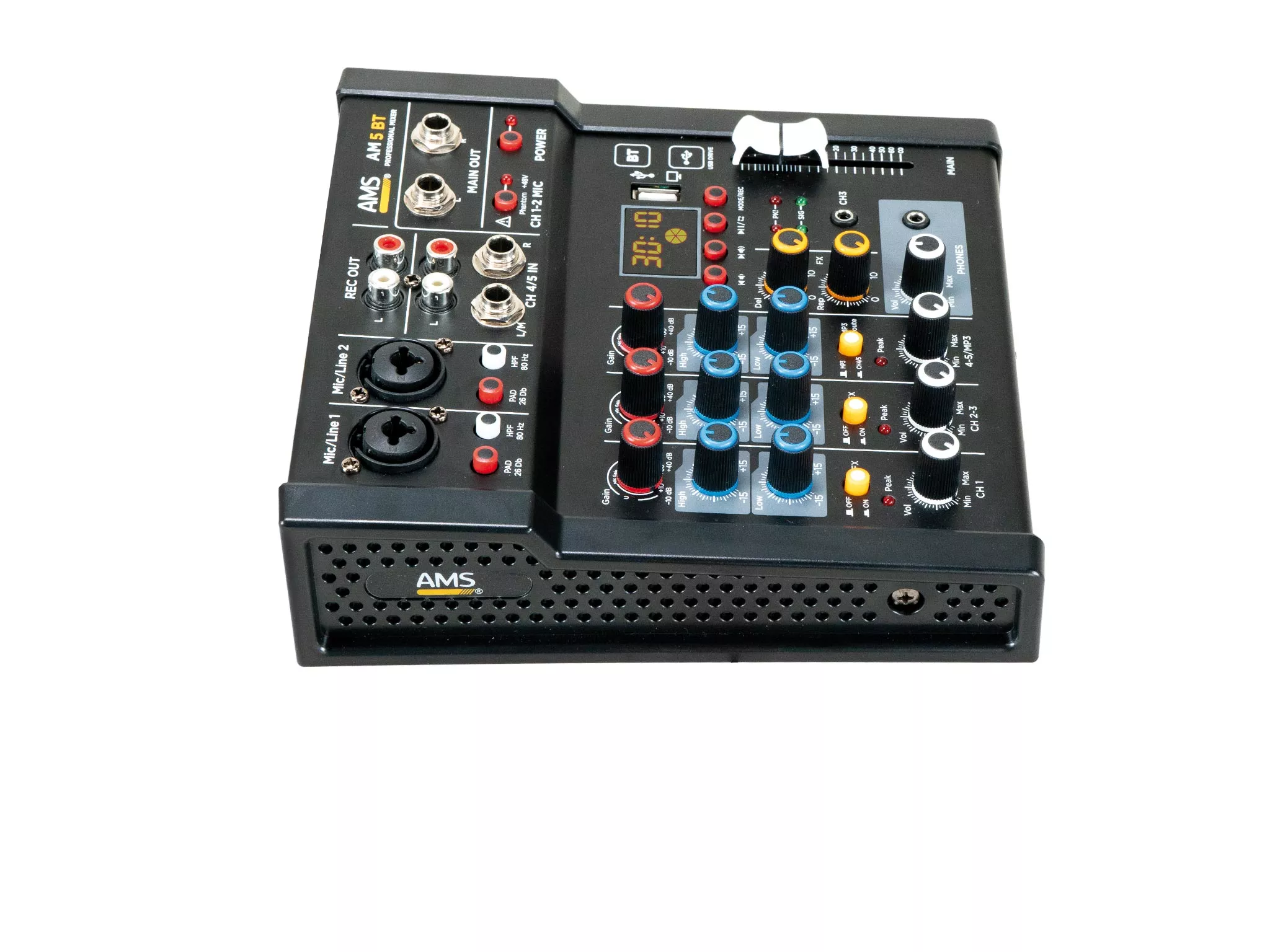

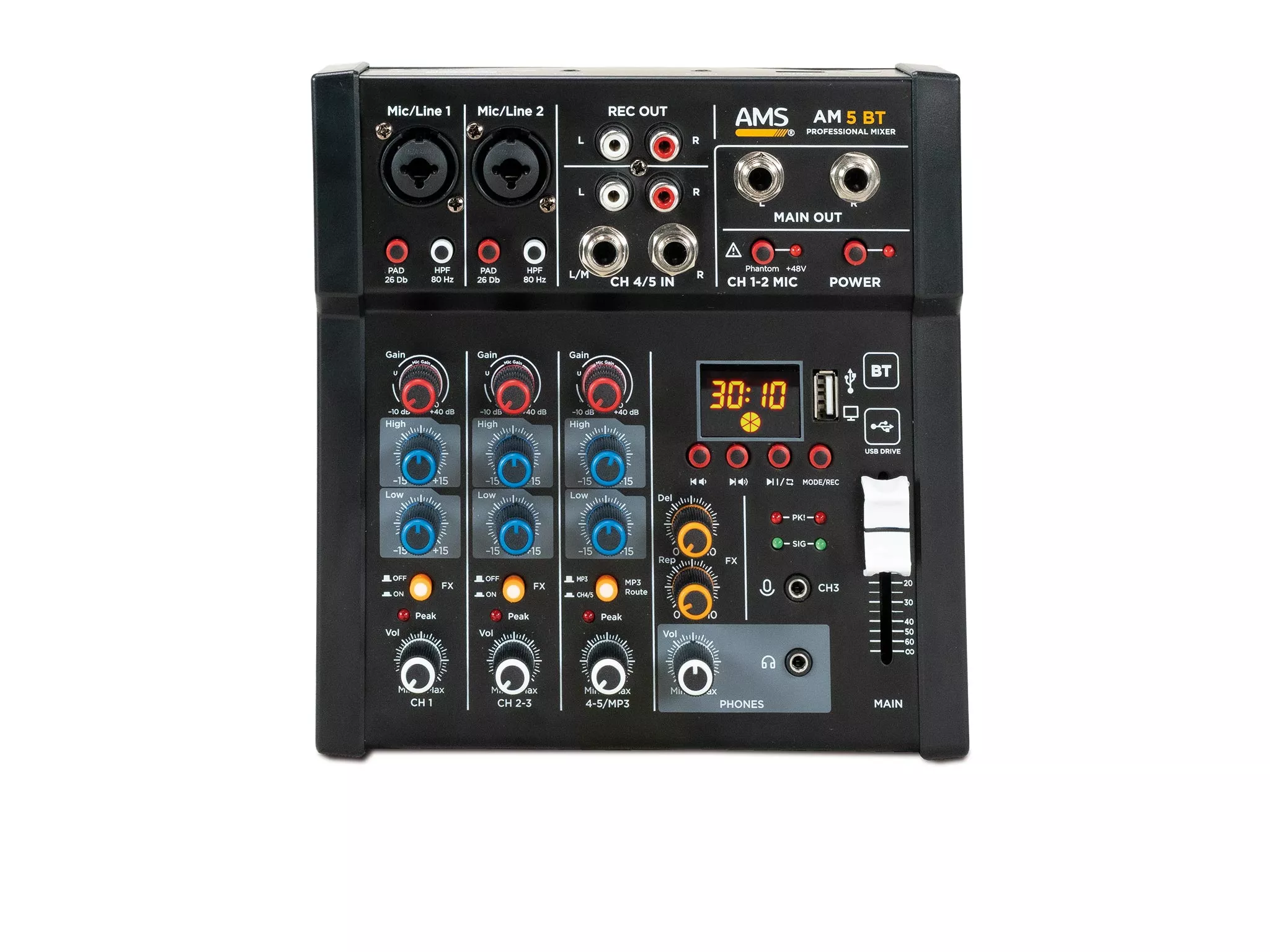

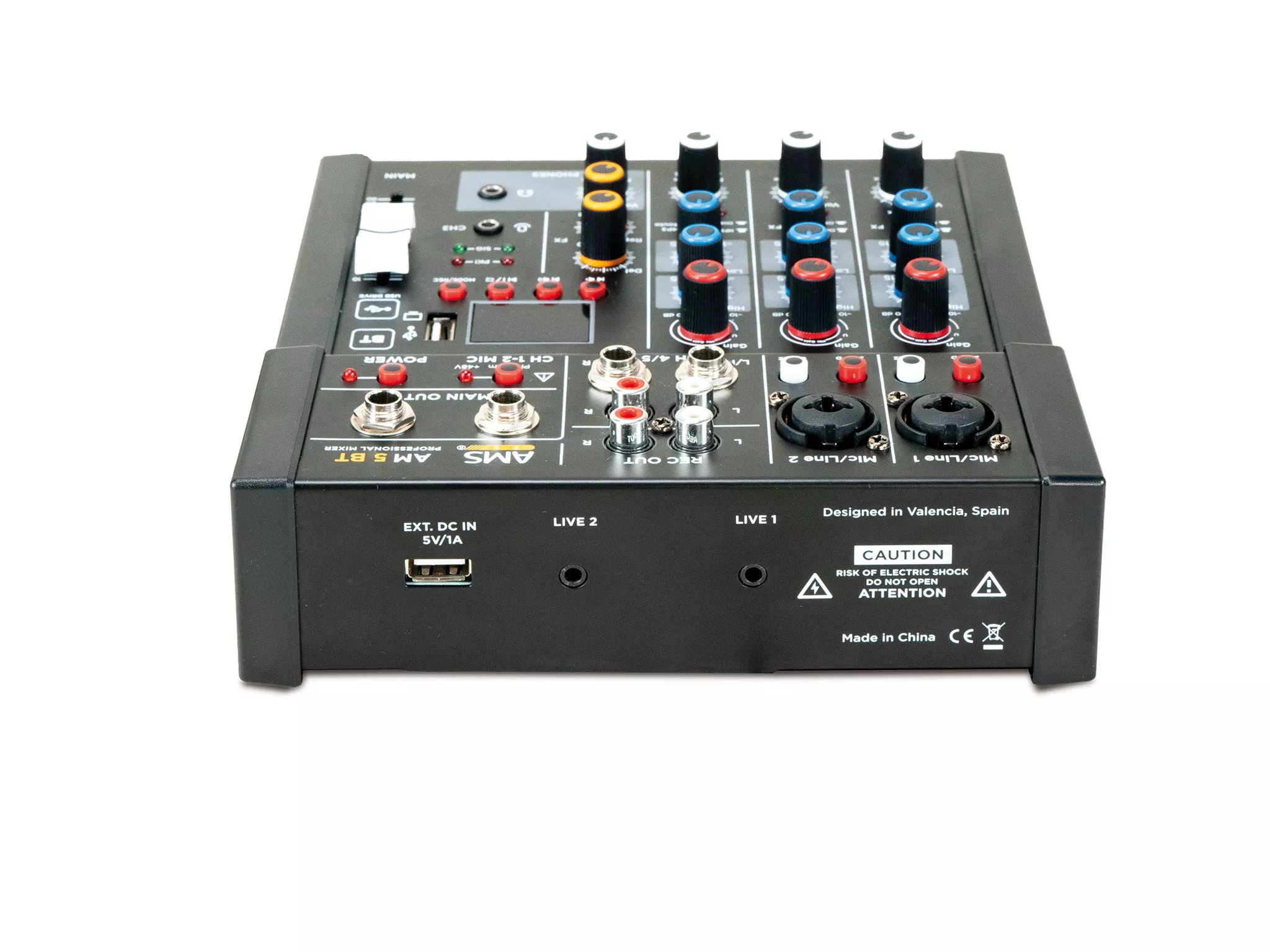

AM 5 BT is an audio mixer with 2 mono MIC/LINE channels, 1 stereo channel and 1 additional Mic input. Its MIC/LINE input channels incorporate phantom power for condenser microphones. Also these inputs incorporate HPF and PAD switch to adequate the input levels.
AM 5 BT features audio file player with USB player/recorder, Bluetooth functionality, ECHO effect, 2 tone controls in mono and stereo channels and headphones output. Its record functionality takes advantage of its USB port acting as sound card.
Features
- 2x MIC/LINE inputs, 1 stereo + 1 additional mic input
- USB/Bluetooth
- Echo in mono inputs
- Record functionality
| Mono Ch | 2 canales MIC/LINE + 1 MIC/ 2 MIC/LINE + 1 MIC |
| Stereo Ch | 1 canal/ 1 channel |
| Player | USB port |
| Recorder | USB port |
| Effects | built-in in mono channels |
| Phantom Power | +48V |
| Connectivity | USB/Bluetooth |
| Equalization | 2 controles de tono/ 2 tone controls |
| Phones Output | Yes |
| Power supply | 5V DC 1A (Entrada USB) alimentador incluido/ DC 5V 1 A (USB input) external power supply included |
| Dimensions | 88 x 80 x 50 mm |
| Weight | 1 kg |
Manual | AM 5 BT Manual 1.0 |  | Download |
So far, there are no questions related to this product.
Register to be able to ask a question about this product.
