Professional Audio
AMX 1624 USB
AMX01624
REC
USB/SD
Mixer 10 Mono Channels + 2 Stereo.

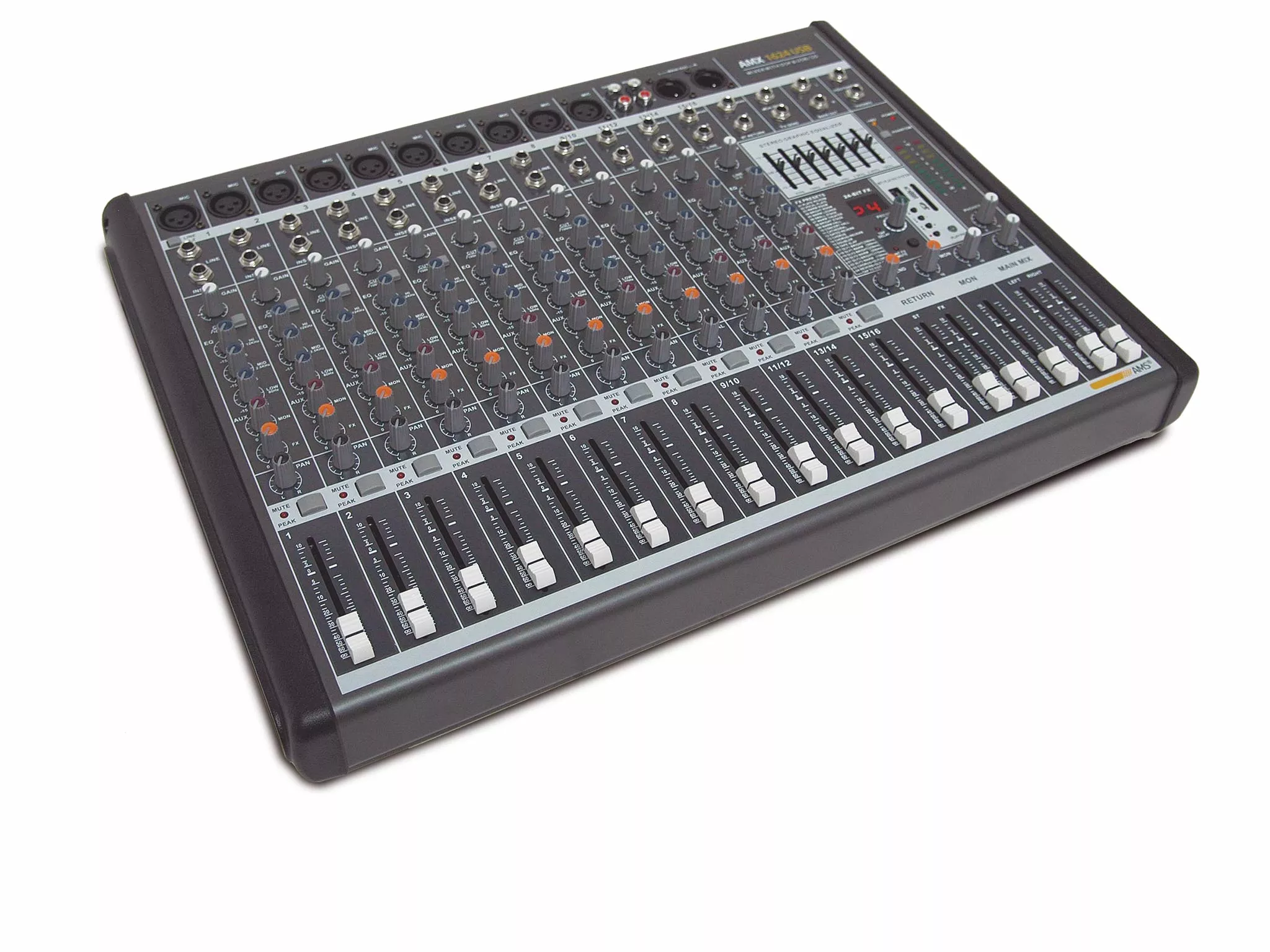

The AMX 1624 USB mixer features 10 mono MIC/LINE channels and 2 stereo channels.
AMX 1624 USB integrates 24 effects as well as USB/SD connection with Player/Recorder mode. It has an AUX send and monitor output. It also features a 7-band Graphic Equqlizer for its stereo output and phantom power +48 V.
The AMX 1624 USB mixer also has a FOOTSWITCH connection to switch the internal effects on and off.
Features
- 10 Mono, 2 Stereo channels.
- 24 effects 24-bit.

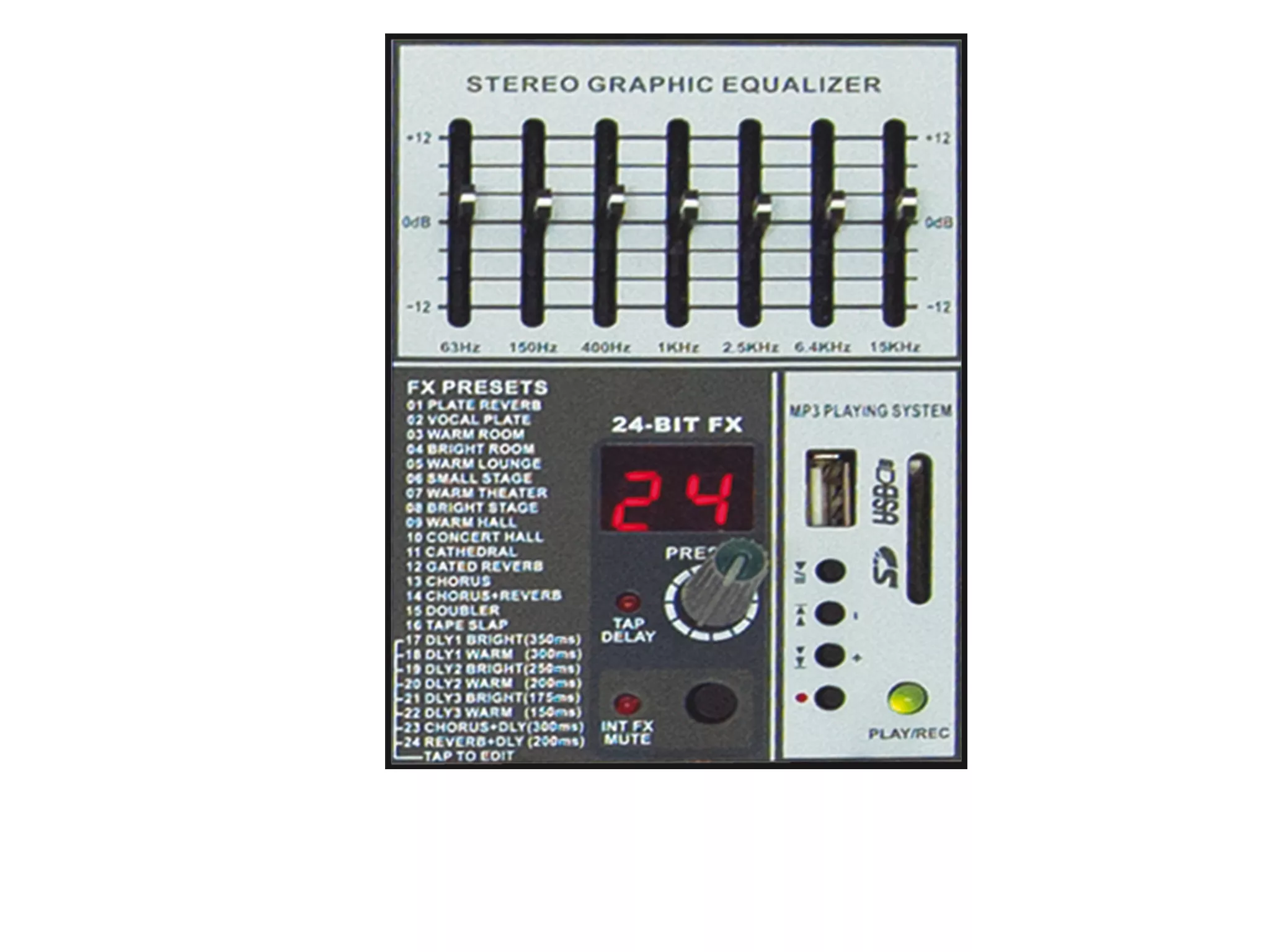

- 7-band Stereo Graphic EQ.
- USB/SD Player/Recorder.
| Input Channels | 10 Mic/Line, 2 Stereo |
| Output | L/R, AUX, MON |
| Equalization | LOW: 100Hz, -12dB/Octave; MID: ±15dB@2.5kHz; HIGH: ±15dB@12kHz |
| Phantom Power | +48 V |
| Effects | 24 FX 24-bit |
| Audio interface | USB/SD Player/Recorder |
| Other functions | Footswitch |
| Power supply | 90-240V AC 50-60Hz |
8 mono channels + 4 stereo mixer.
MIC/LINE mono channels with +48V phantom supply.
3 bands equalizaer in every channel.
Send buses and effect control.
24 bits DSP built-in with 24 different effects.
USB/SD interface for MP3 files.
Balanced/Unbalanced master outputs with separate faders.
7 bands graphic equalizer in Master section.
Footswitch connection (effects mute) and headphones.
MIC/LINE mono channels with +48V phantom supply.
3 bands equalizaer in every channel.
Send buses and effect control.
24 bits DSP built-in with 24 different effects.
USB/SD interface for MP3 files.
Balanced/Unbalanced master outputs with separate faders.
7 bands graphic equalizer in Master section.
Footswitch connection (effects mute) and headphones.
Manual | AMX_SERIES_Manual_1_0 |  | Download |
