Professional Audio
AP 1702
EAP01702
New Products!
Audio Amplifier.

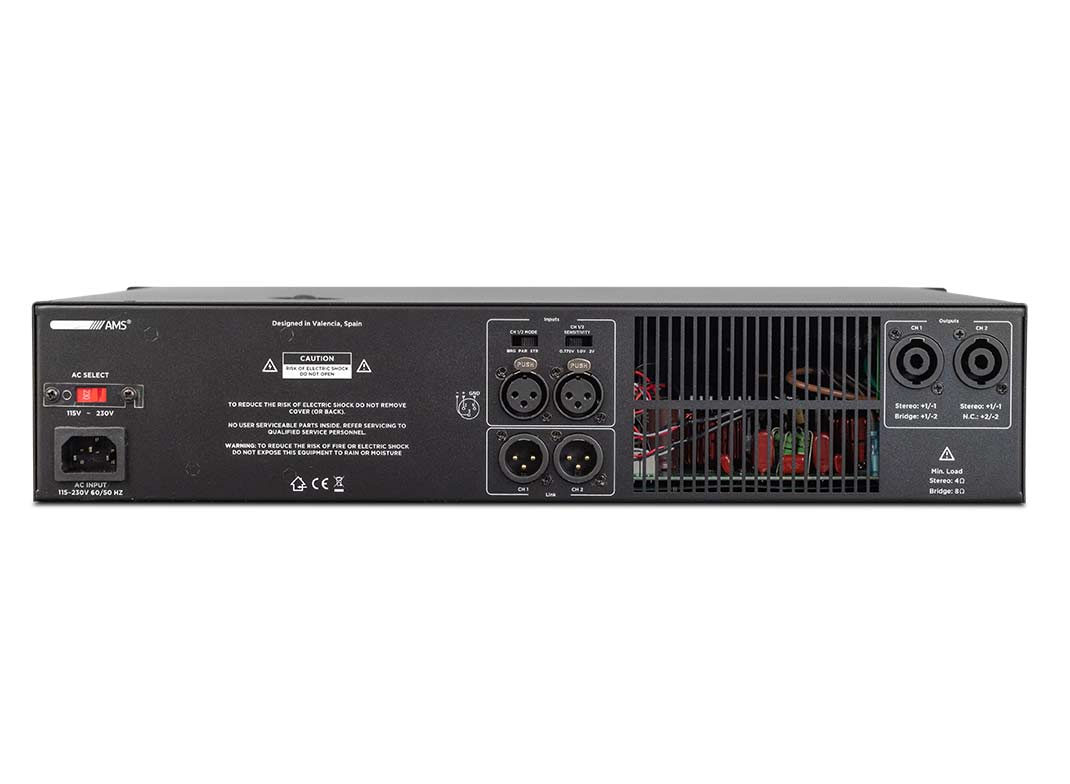

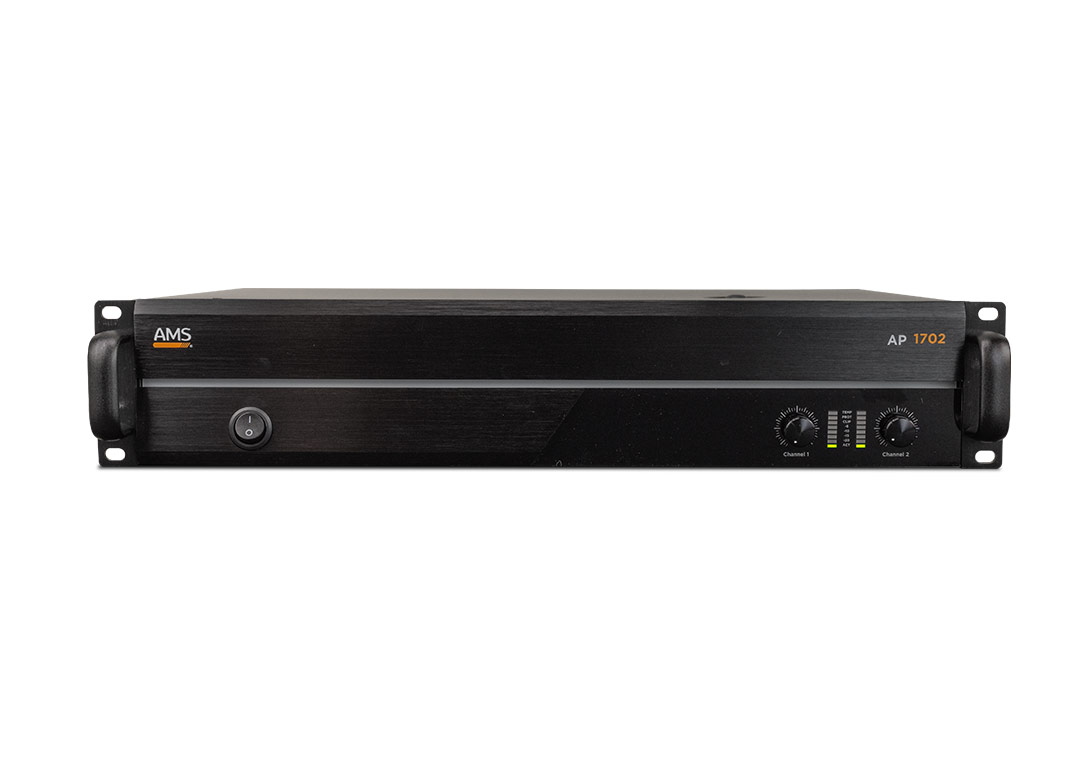

AP 1702 is a professional amplifier for low impedance installations. Thus, it can be operated with 4-ohm and 8-ohm loudspeaker systems as well as in bridge mode. It has a stereo/bridge mode selector switch and a floating ground switch to prevent noise caused by grounding other devices. Each channel has balanced/inputs and LINK via XLR3 connectors. For the output there are also Speakon connectors in this case. They are equipped with short-circuit and DC output protection, overtemperature and limiter protection as well as a soft start function. The 2 HU 19" size allows several units to be placed in a transport rack.
Features
- Stereo / Bridge modes.
- Soft Start function.
- On, clip and protection indicator LEDs.
- 2 19-inch rack units.
| No. Channels | 2 |
| W/Ch @ 8 Ohm | 500 W/ 500W+500W |
| W/Ch @ 4 Ohm | 850 W/ 850W+850W |
| W Bridge @ 8 Ohm | 1700 W/ 1700W |
| Frequency Range | 20Hz - 20 kHz ±1.5dB/ 20Hz - 20 kHz ±1.5dB |
| THD+N | 0.1% |
| Slew Rate | >30V/uS |
| S/N Rate | 95 dBA |
| Damping Factor | >200 (5Hz-1kHz) |
| Input Sensitivity | 0,775V/1V/2V |
| Connections | XNL4 (Output) XLR3p male/female (input/LINK) |
| Protections | Soft start, DC, VHF, Short circuit, Limiter, overheat |
| Dimensions | 483 x 350 x 88 mm / 483 x 350 x 88 mm |
| Weight | 11 kg |
Manual | AP_XXX2_Series_ manual 1.0 |  | Download |
