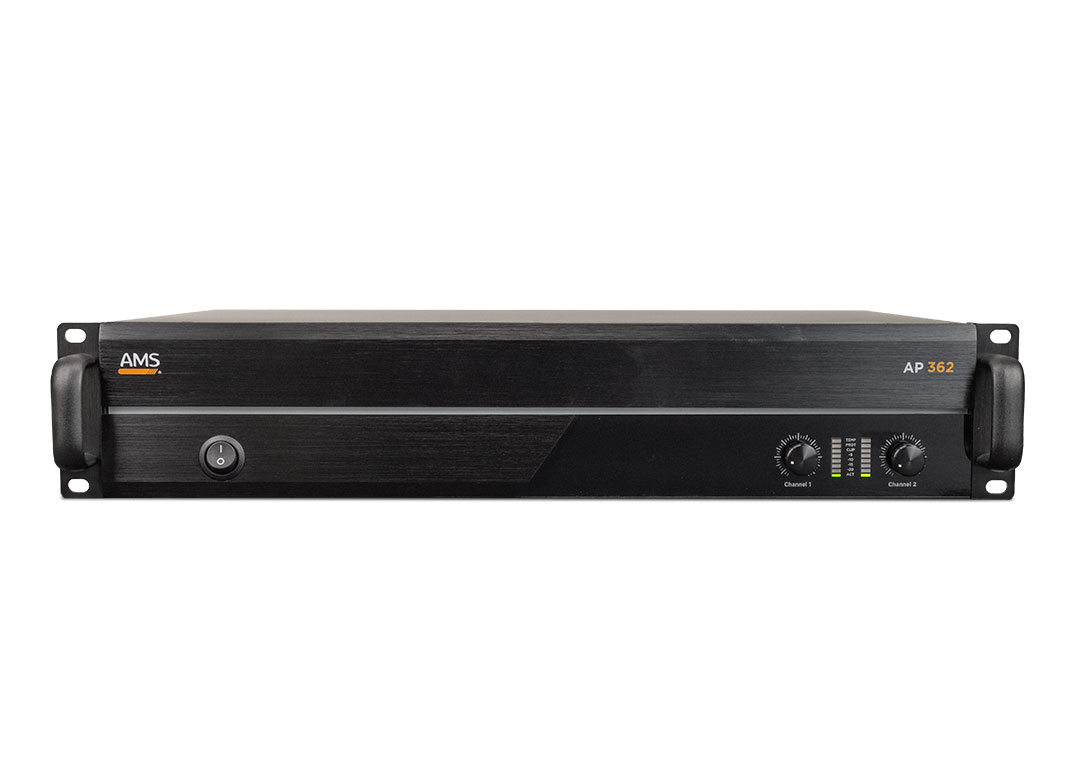

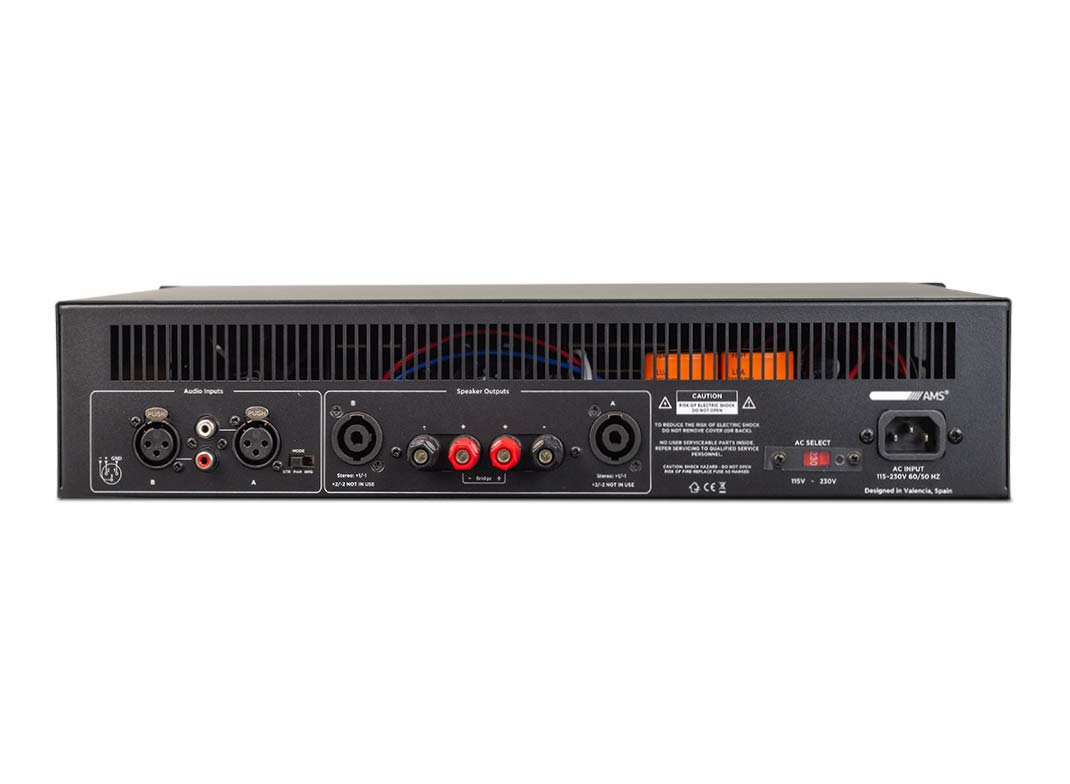

Client Sign UpAP 362 is a professional amplifier for low impedance installations. Thus, it can be operated with 4-ohm and 8-ohm loudspeaker systems as well as in bridge mode. It has a stereo/bridge mode selector switch and a floating ground switch to prevent noise caused by grounding other devices. Each channel has balanced/unbalanced inputs via XLR3 and RCA connectors. For the output there are also double connections, Speakon and Binding Post in this case. They are equipped with short-circuit and DC output protection, overtemperature and limiter protection as well as a soft start function. The 2 HU 19" size allows several units to be placed in a transport rack.
No. Channels | 2 |
W/Ch @ 8 Ohm | 200 W/ 200W+200W |
W/Ch @ 4 Ohm | 360 W/ 360W+360W |
W Bridge @ 8 Ohm | 720 W/ 720W |
Frequency Range | 20Hz - 20 kHz ±1.5dB/ 20Hz - 20 kHz ±1.5dB |
THD+N | 0.1% |
Slew Rate | >20V/uS |
S/N Rate | 95 dBA |
Damping Factor | >200 (5Hz-1kHz) |
Input Sensitivity | 0,775V/1V/2V |
Connections | XNL4/Binding post (Output) XLR3p male/RCA (input) |
Protections | Soft start, DC, VHF, Short circuit, Limiter, overheat |
Dimensions | 483 x 350 x 88 mm |
Weight | 8,5 kg |
Manual | AP_XXX2_Series_ manual 1.0 | ![]() | Download |
