M 515

Loudspeakers

Professional Audio

MKA01003

ABS

MP3

USB/SD

Self powered loudspeaker.

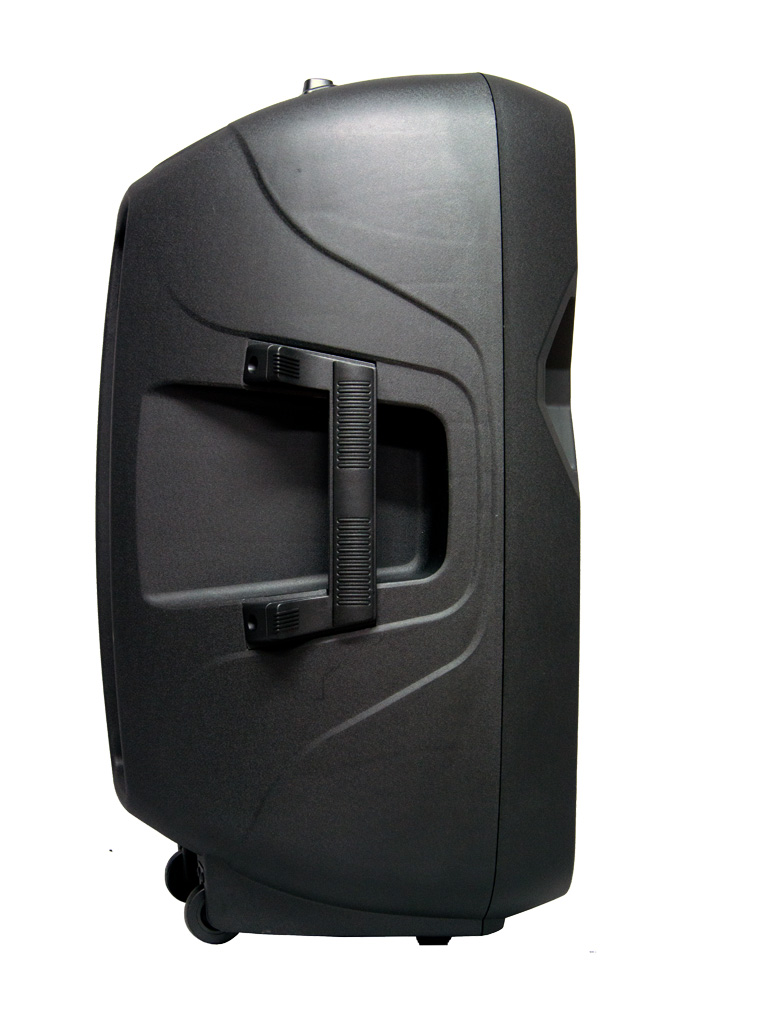

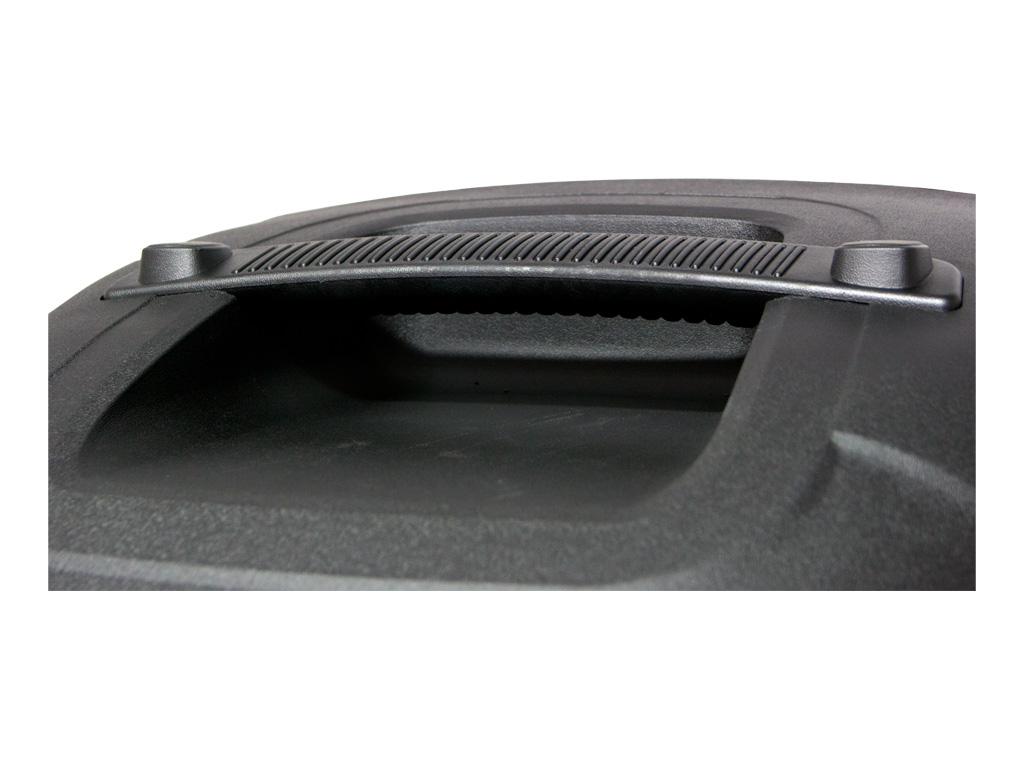

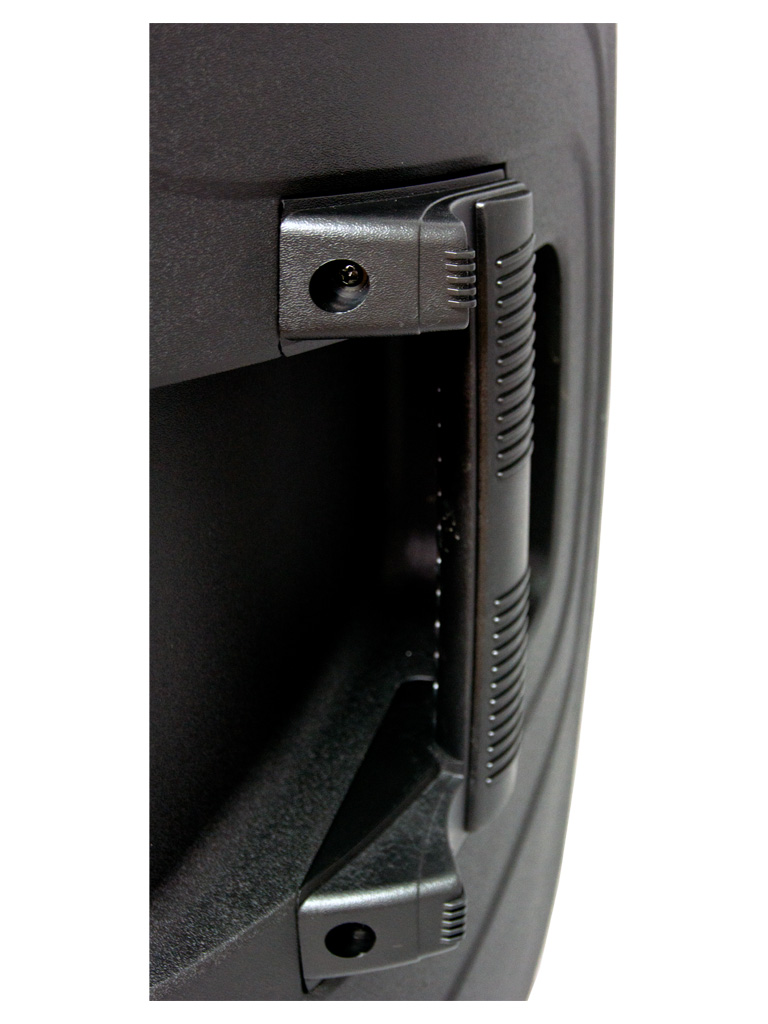

M 515 is a 300 W amplified loudspeaker with a 15" woofer and a 1" compression driver, made of ABS plastic. It has an FM radio and MP3 player via USB, SD or Bluetooth devices. Incorporates side carrying handle and 35 mm bottom insert for support. Microphone input with XLR3 and 1/4'' Jack connectors, and line input with RCA and XLR3 connectors. It also has a line signal output with XLR3 and Jack connector, and an output with XLN4 connector for to connect of a passive loudspeaker (minimum 8 Ohm). It has volume for each input, master volume and 2 tone controls.

Features

MP3 player/FM radio
Bluetooth
USB/SD player
Remote control

Type	2 vías. Amplificado. Clase AB/ 2 way. AB calss amplifier
Power	150 W RMS/ 150W RMS
LF Transducer	Woofer 15"
HF Transducer	Compression driver 1"
Sensitivity (1W @ 1m)	95 dB
SPL Max	119 dB / 119 dB
Frequency Range	55 Hz - 20 KHz
Connections	Micro: XLR3 and Jack TRS 1/4"; Line: RCA and XLR3; Link Out: XLR3 and Jack TRS 1/4"; Amp Out: XLN4
Enclosure material	ABS plastic

Inserts / Rigging	35mm insert
Colour	Black
Dimensions	380 x 325 x 600 mm
Weight	14.5 kg
Power supply	AC 110/220 V
Other functions	MP3 player, LCD Display, Remote control, FM radio, Bluetooth, USB/SD
Controls	Tone control (Hi, Low), Mic gain, Line gain, Master volume

	Length(m)	Width(m)	Height(m)	Weight(kg)
Product	0.33	0.38	0.60	14.50
Box	0.40	0.49	0.75	18.00

Self powered loudspeaker
Woofer 15"
Tweeter 1"
Amplifier type class-B
Sensitivity: 95 dB.
Max. SPL: 119 dB.
Power Handling (AES) : 300 W.
Input connectors: XLR3-Jack 1/4" (MIC) - XLR3-RCA (LINE)
Output connectors: XLR3-Jack 1/4".
Controls: EQ (Treble-Bass), Mic, Line, Main volume.
Functions: MP3 player, LCD Display, Remote control, FM radio, Bluetooth, USB/SD.
Dimensions: 380 x 325 x 600 mm.
Weight: 14,5 Kg.
