Client Sign UpMBAR 354 is a light bar that includes 18x RGB LEDs, 3 in 1 of 3W each. These bright LEDs allow a rich spectrum of tones to be obtained by mixing the colors red, green and blue. The configuration interface has a screen with all the information and buttons to navigate through the menus, selecting parameters for: internal effects (17 effects), strobe or audio effects (2 effects). The fixture is separated into up to 3 sections and, depending on the DMX mode, can be controlled individually or in groups. MBAR 354 includes 3 DMX modes (3, 7 and 13 channels) with individual color dimming, integrated effects, sound control and strobe function.
Light engine | 18 x 3W LEDs RGB |
Power | 54 W |
Beam angle | 35º |
DMX channels | 3, 7 y 13/ 3, 7 and 13 |
Operating modes | DMX 512 /Audio/Auto/Manual/Master-Slave |

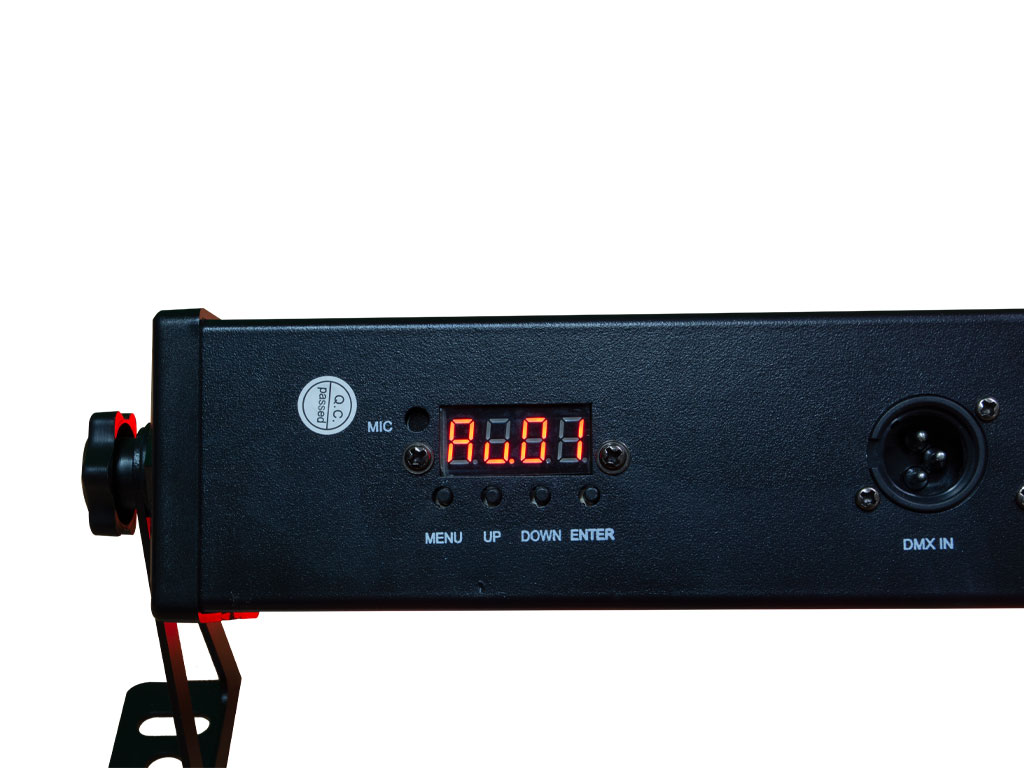

Controls | Configuration menu navigation buttons |
Indicators | 4 digit display |
Power supply | AC 100-240 V 50/60 Hz |
Dimensions | 1050 x 105 x 80 mm |
Weight | 2 Kg |
Length(m) | Width(m) | Height(m) | Weight(kg) | |
---|---|---|---|---|
Product | 0.08 | 0.11 | 1.05 | 2.00 |
Box | 0.10 | 0.10 | 1.10 | 2.20 |
Master Carton | 0.32 | 1.13 | 0.33 | 22.40 |
Manual | MBAR_354_MANUAL_1-0 | ![]() | Download |
