Lighting

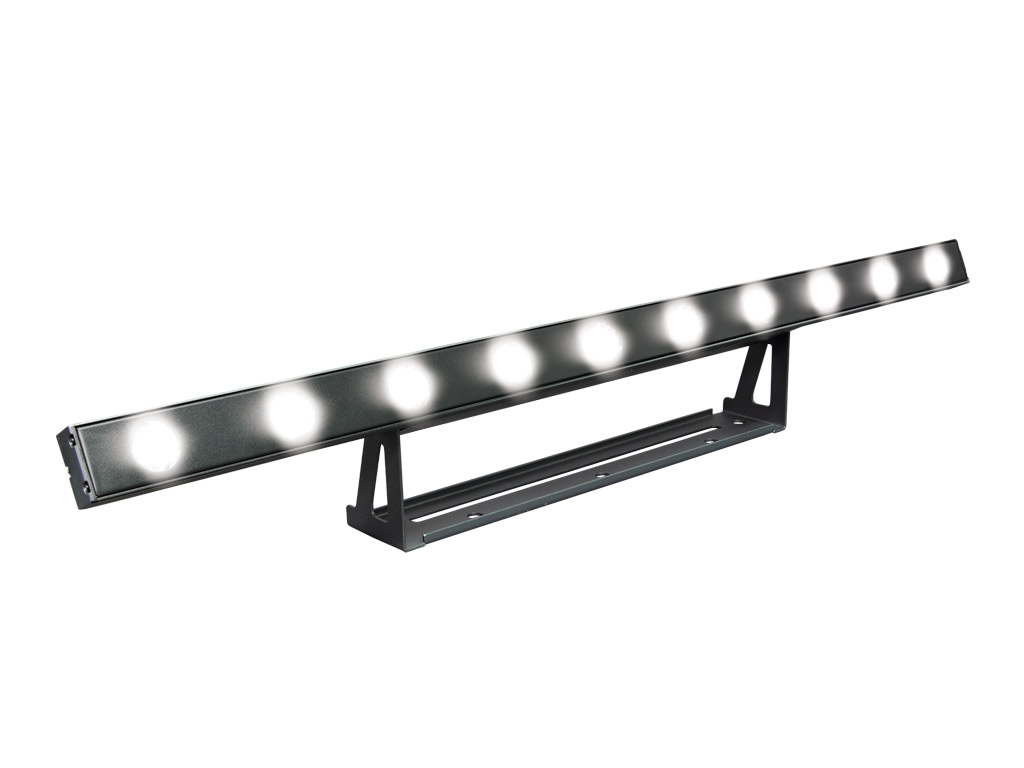

MBAR BAT 144 WI
28MAR047
25º <
RGBWA UV
LED Lighting bar.
MBAR BAT 144 WI is a lighting bar which includes 12x 12W RGBWA+UV (6 in 1) LEDs. These brilliant LEDs allow to obtain a rich colour spectrum mixing the red, green, blue, white, amber and ultraviolet colours.
The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as: manual level of each colour, strobe or inner effects.
The device includes DMX mode (6 and 10 channels) with individual colour dimming, built-in effects and strobe function.
As additional and important functions, it is possible to control the device through Wireless DMX (using an external controller) and infrared (IR), thanks to the included remote controller.
Features
- 12 x 12 W RGBWA+UV
- 6/10 DMX channels
- 25º angle beam
- Built-in battery
| Light engine | 12 LEDs RGBWA+UV de 12 W/ 12 x 12 W RGBWA+UV |
| Power | 144 W |
| Beam angle | 25º |
| DMX channels | 6/10 canales DMX/ 6/10 channels |
| Operating modes | DMX 512 /Audio/Auto/Manual/Master-Slave |
| Controls | Pushbuttons for configuration menu navigation, remote control |
| Indicators | 4-digit display |
| Connections | Signal: XLR3 |
| Housing material | Aluminium |
| Colour | Black |
| Rigging | Tilting frame |
| Battery | Yes |
| Wifi | Yes |
| Power supply | 90-240 V 50/60 Hz |
| Dimensions | 1000 x 82 x 155 mm |
| Weight | 6.5 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 1.00 | 0.16 | 0.08 | 6.50 |
| Box | 1.04 | 0.11 | 0.20 | 6.94 |
| Master Carton | 1.05 | 0.25 | 0.42 | 29.20 |
- Lighting bar which includes 12x12W RGBWA+UV (6 in1) LEDs.
- Internal battery.
- Wireless DMX and IR as additional control methods.
- Display and interface for setting functions.
- Strobe function.
