MD 4 SPLITTER
60WDI016
DMX
Splitter DMX.

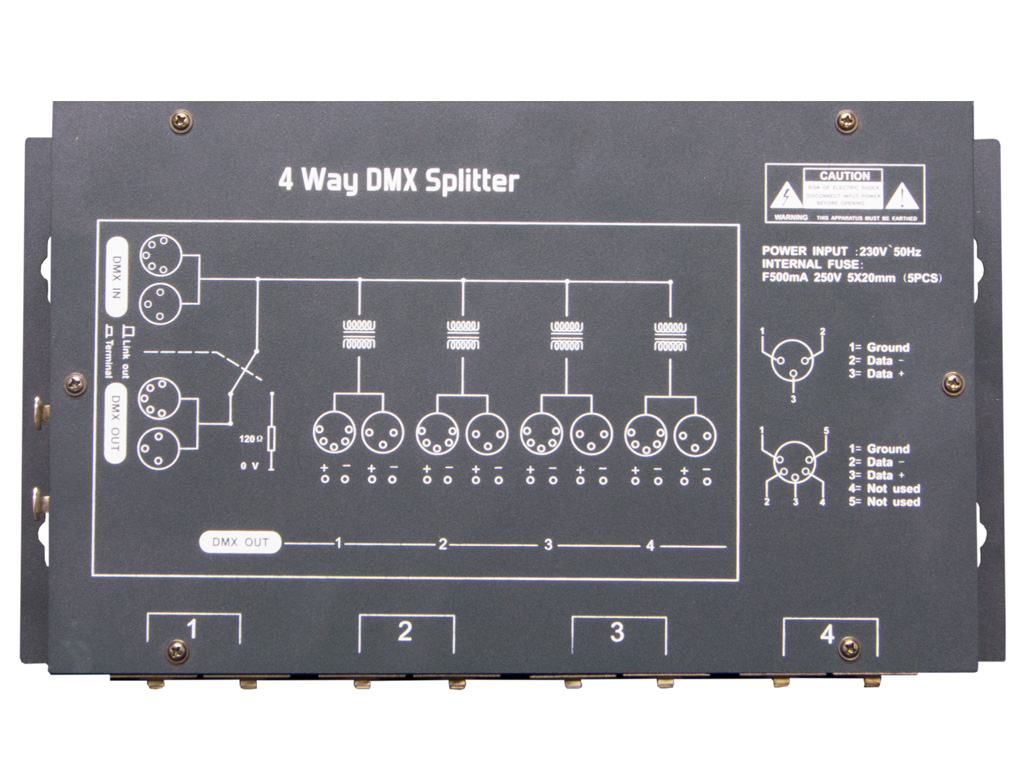

MD 4 SPLITTER is a 4-way DMX signal distributor, completely electrically isolated between input and output as well as between output and output. Both DMX inputs and DMX outputs are equipped with 3 and 5 pin XLR connectors. Each DMX output has an independent driver and DATA+ DATA- indicators.
Features
- 4-way.
- XLR3 and XLR5 connectors.
- Terminal/Link Out selector switch.
| Connections | DMX IN: 1 x XLR3 / 1 x XLR5, DMX OUT: 5 x XLR3 / 5 x XLR5 |
| Weight | 2.8 Kg |
| Dimensions | 72 x 277 x 172 mm |
| Power supply | Ac 230V - 50 Hz |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.17 | 0.28 | 0.07 | 2.80 |
| Box | 0.37 | 0.26 | 0.14 | 3.08 |
| Master Carton | 0.52 | 0.40 | 0.30 | 13.20 |
Both DMX input and DMX output are provided with 3-pin or 5-pin XLR connectors, each DMX output has an independent driver and DATA+ & DATA- indicators. In addition, a Link out/Terminate selector is used to prevent DMX output from the errors or malfunction caused by DMX input.
