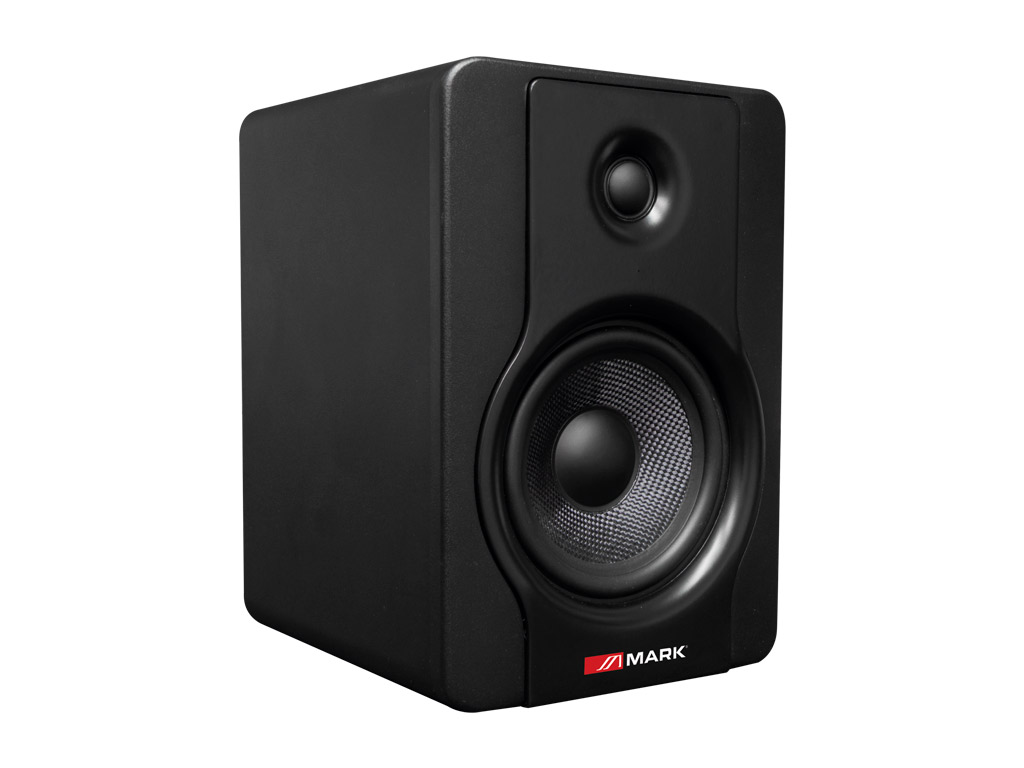

MONITOR ST 100
50MAR007
AMP
5'' self powered studio monitors. 140 W.
MONITOR ST 100 has been designed to meet the needs in a studio monitoring environment. It is focused on the functional goal of delivering pure, original sound. This self-powered monitor, accepting a line-level signal from a variety of sources thanks to its two connectors (XLR3 and Jack ¼'').
MONITOR ST 100 is designed to overcome all limitations of conventional studio reference monitors within the digital audio environment. This system delivers a wide-range frequency response by employing two high quality drivers (5'' woofer & 1'' TWT) and unique crossover technology. It boasts a stable and balanced low-mid frequency response along with a defined mid and high frequency response as well.
Features
- The system includes 2 selfpowered loudspeakers.
- Bass reflex.
| Type | 2 vías. Biamplificado/ 2 ways. Biamplified |
| Power | 70 W RMS/ 60 W RMS |
| LF Transducer | Woofer 5" |
| HF Transducer | Tweeter 1" |
| Input Sensitivity | 85 mV (90 dBA)/ 85 mV |
| Frequency Range | 56 Hz - 22 KHz |
| SPL Max | 100 dB/ |
| Protections | RF, Output current limiting, Over temperature, Subsonic filter |
| Enclosure material | MDF wood |
| Finished | Vinil-laminated |
| Connections | Power: 1 x IEC. Audio: 1 x XLR3, 1 x Jack TRS 1/4" |
| Controls | Power switch, Volume control |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.18 | 0.20 | 0.25 | 5.00 |
| Box | 0.29 | 0.47 | 0.35 | 10.50 |
- Self-powered monitor system (2 loudspeakers).
- Power amplifier of 40W + 30W.
- 5'' woofer + 1'' tweeter.
- Volume control.
- Made of MDF wood and vinyl-laminated.
- Available in black colour.
Manual | MONITOR_ST_100_1_0 |  | Download |
