POWER SPLITTER 16
60WDI013
16A
Power distribution.

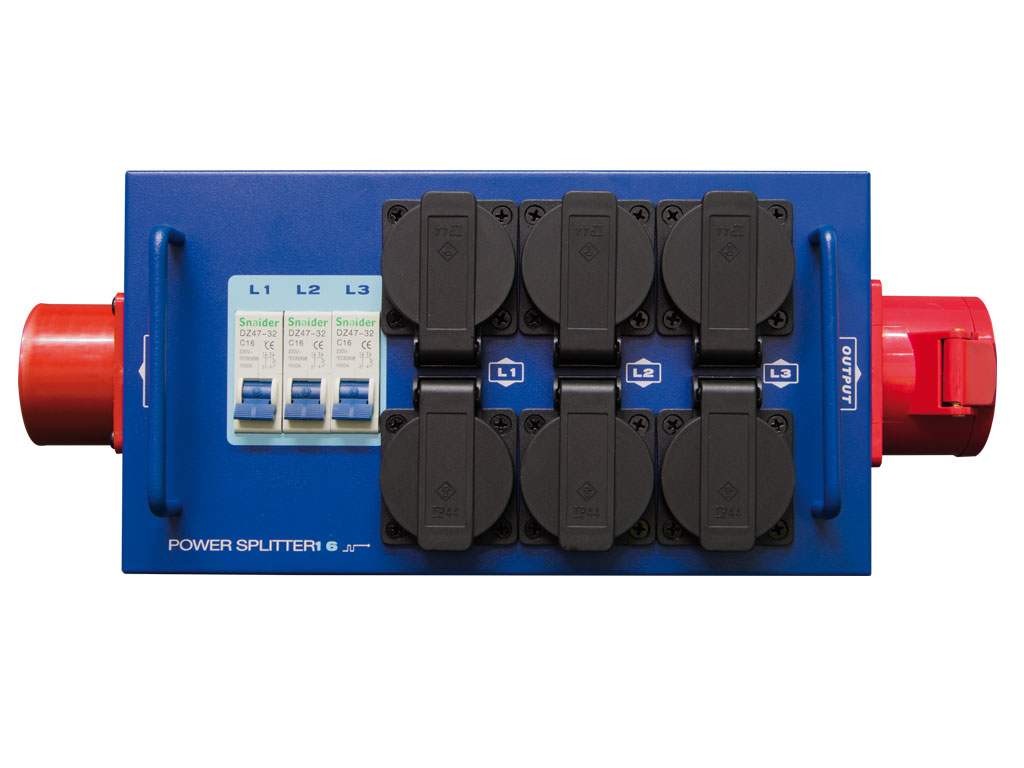

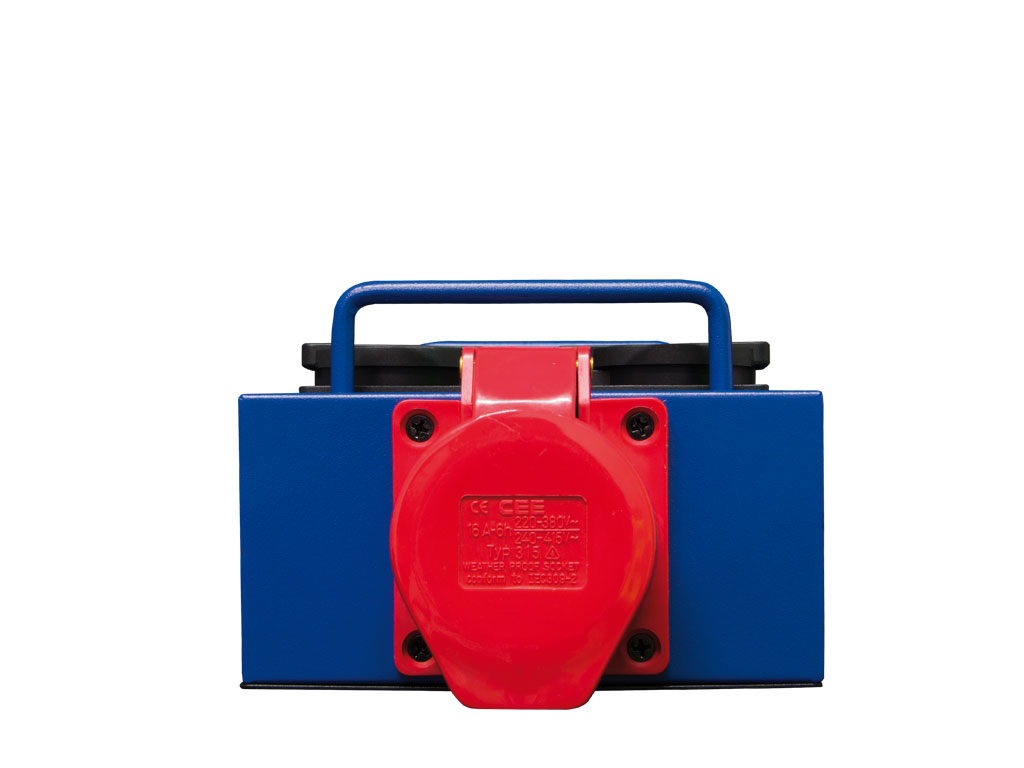

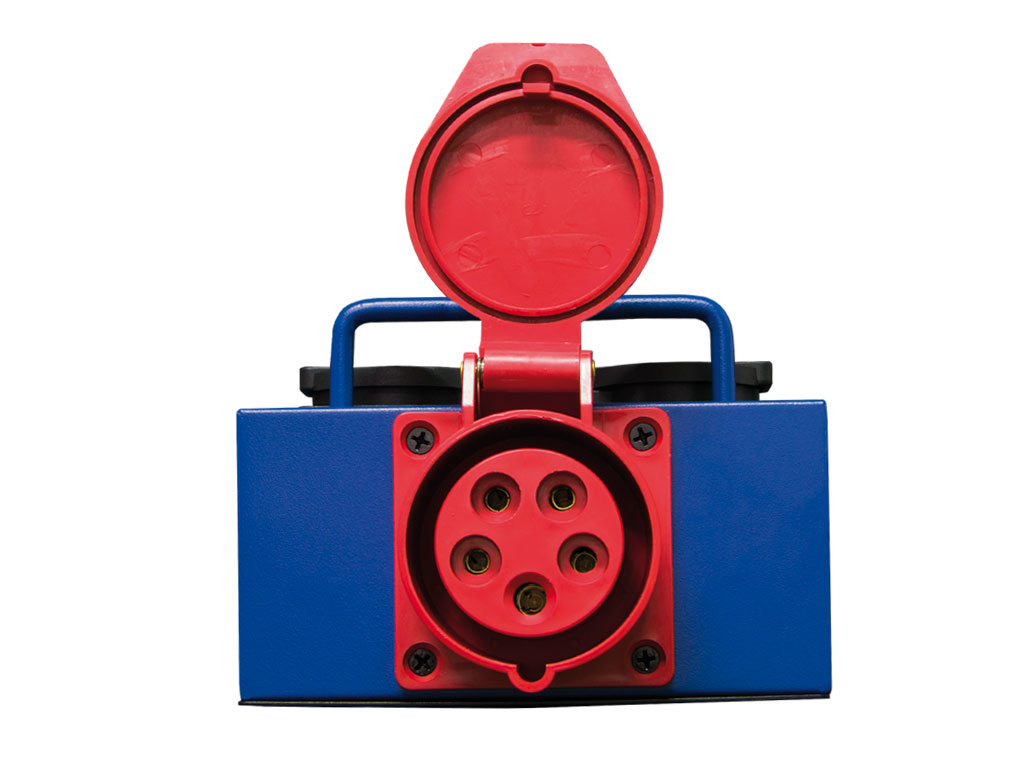

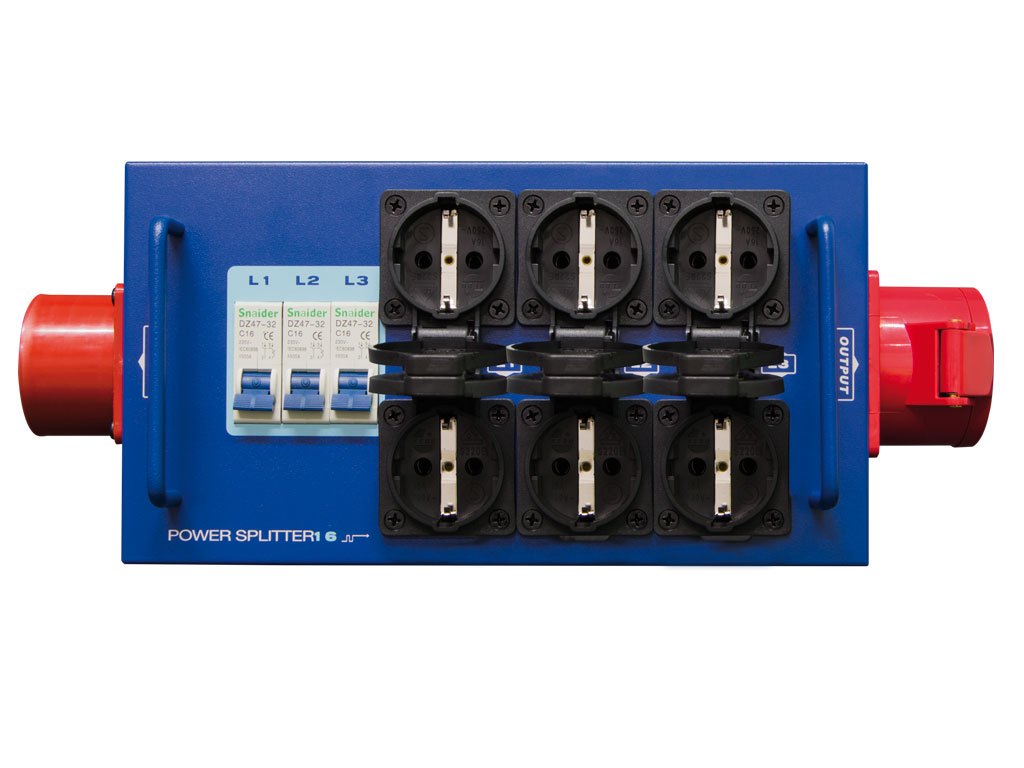

POWER SPLITTER 16 is a versatile 16A three-phase power distributor with a 3x16A+N+E 5-pin CEE socket. For charging and linking functions to other units, it has a 5-contact CEE 3x16A+N+E socket respectively. Each phase is diverted to two Type F (schuko) connectors and protected by a 16 A MCB. It can be placed on the ground or fixed to a structure by means of a clamp using the 2 threaded points on the sides.
Features
- 16A three-phase input and output (IEC 60309).
- 6 single-phase outputs (CEE-7 type F).
- Carrying handles and threaded fixing points.
| Material | Aluminium |
| Connections | Input: IEC 60309 16 A male plug; Output: 6 x CEE-7 type F (Schuko) and 1 x IEC 60309 16 A female plug |
| Protections | 3 x interruptor diferencial MCB 16A/ 3 x MCB 16A current circuit breaker |
| Dimensions | 107 x 150 x 367 mm |
| Weight | 2 Kg |
| Load | 16 A por fase/ 16 A per phase |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.11 | 0.37 | 0.15 | 2.00 |
| Box | 0.41 | 0.21 | 0.15 | 2.58 |
| Master Carton | 0.43 | 0.43 | 0.47 | 16.74 |
- 3-phase power distributor.
- 16A max. load per phase.
- 6x schuko connectors for load.
- 5-contacts CEE male and female connectors for power input & output.

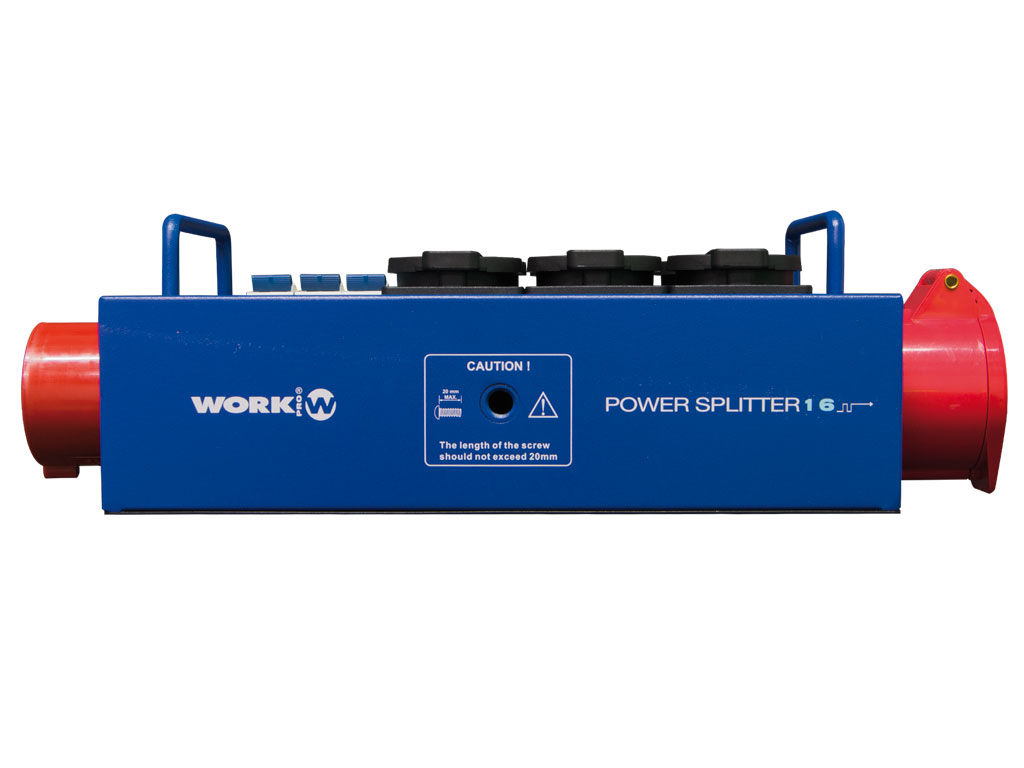

- Transport handles and screwed points for fixation.
