Lighting
SCENE 24 MKII
55SCE025
DMX
MIDI
DMX controller.

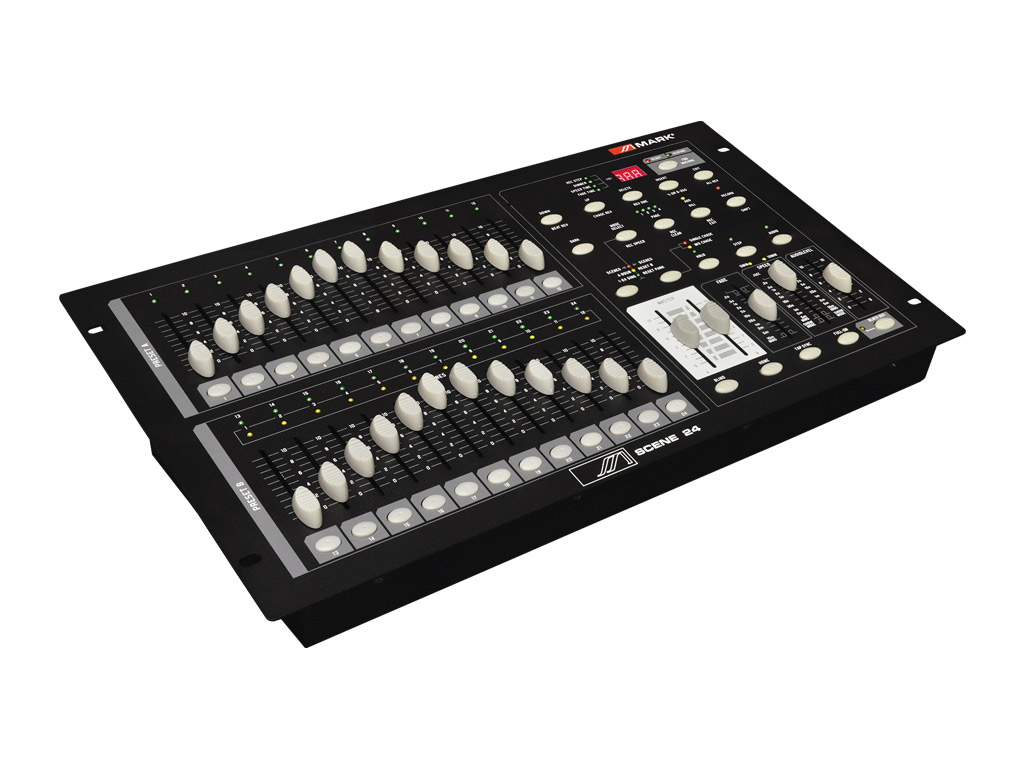

SCENE 24 MKII is a conventional DMX lighting console. Its many functions make it appropriate for theatres, studios and stages .This mixer can divide 24 output channels at 2 x 12, and then mix scenes easily, with a simple fader movement. SCENE 24 MKII has a high back-up to store different scenes and sequences settings.
SCENE 24 MKII allows to edit multiple programs simultaneously, and at the same time, chases, scenes and sequences can be edited in an independent and simultaneous way. This option allows to create multiple effects from a small number of templates.
Pre recorded programs can be triggered remotely by MIDI output.
Features
- 24 channels.
- 96 progams.
- MIDI Control.
| Universes | 1 (limitado a 24 canales)/ 1 (limited to 24 channels) |

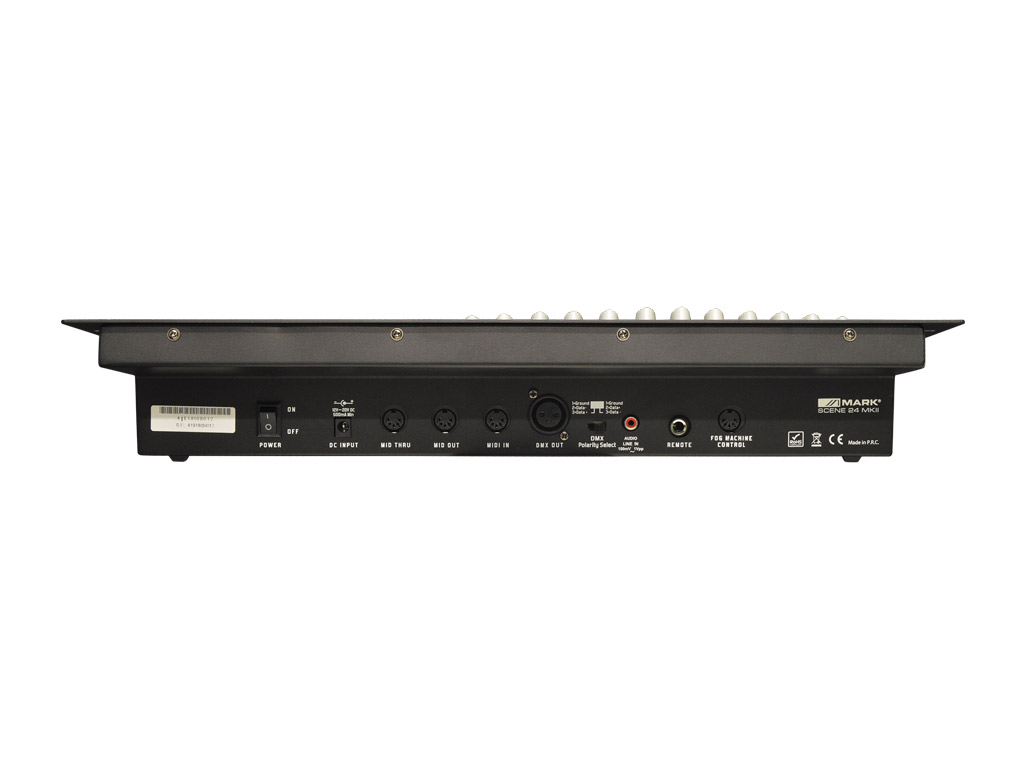

| DMX Output / DMX Input | XLR3 / No |
| RDM | No |
| Internal Monitor | 3-digit display |
| External Monitor | No |
| Network Ports | No |
| Audio In/Out | Yes/No |
| MIDI/OSC | Yes/No |
| LTC/MTC | No/No |
| USB Ports | No |
| Inbuilt Wifi | No |
| Remote Input Port | Yes |
| Faders/Encoders | 24 / 0 |
| Iluminated Soft Buttons/Faders/Encoders | 0 / 0 / 0 |
| Media Server Support | No |
| Wing Support/Multiconsole | No |
| Cues/Groups | 96 programas de 48 pasos / 0 |
| Number of Fixtures | 24 dimmers |
| Silent Version | Yes |
| UPS | No |
| Dimensions | 483 x 264 x 84 mm |
| Power supply | 110-240 Vac, Alimentador externo 12-20 V 0.5 A/ 110-240 Vac, External power supply 12-20 V 0.5 A |
| Weight | 4.6 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.26 | 0.48 | 0.08 | 4.60 |
| Box | 0.59 | 0.39 | 0.19 | 5.32 |
Lighting console.
Control of 24 DMX lighting channels.
96 programs of 48 steps each (4608 steps in total).
Flash switches for all channels.
Fade time control: from 0 to 10 min.
Editing sequences and scenes.
Memory against current failures.
Running scenes using audio (internal microphone), Speed, Standard Beat.
Ability to run multiple programs simultaneously.
MIDI interface.
Control Interface for DMX fog machine trigger.
Control of 24 DMX lighting channels.
96 programs of 48 steps each (4608 steps in total).
Flash switches for all channels.
Fade time control: from 0 to 10 min.
Editing sequences and scenes.
Memory against current failures.
Running scenes using audio (internal microphone), Speed, Standard Beat.
Ability to run multiple programs simultaneously.
MIDI interface.
Control Interface for DMX fog machine trigger.
Manual | SCENE 24 MKII - USER MANUAL v1.0 | Download | |
Manual | SCENE 24 MKII - MANUAL USUARIO v1.0 | Download | |
Manual | SCENE 24_Perfil |  | Download |
