Lighting
SUPERLED 144 IP
28MAR045
IP65
DMX
15º <
RGBWA UV

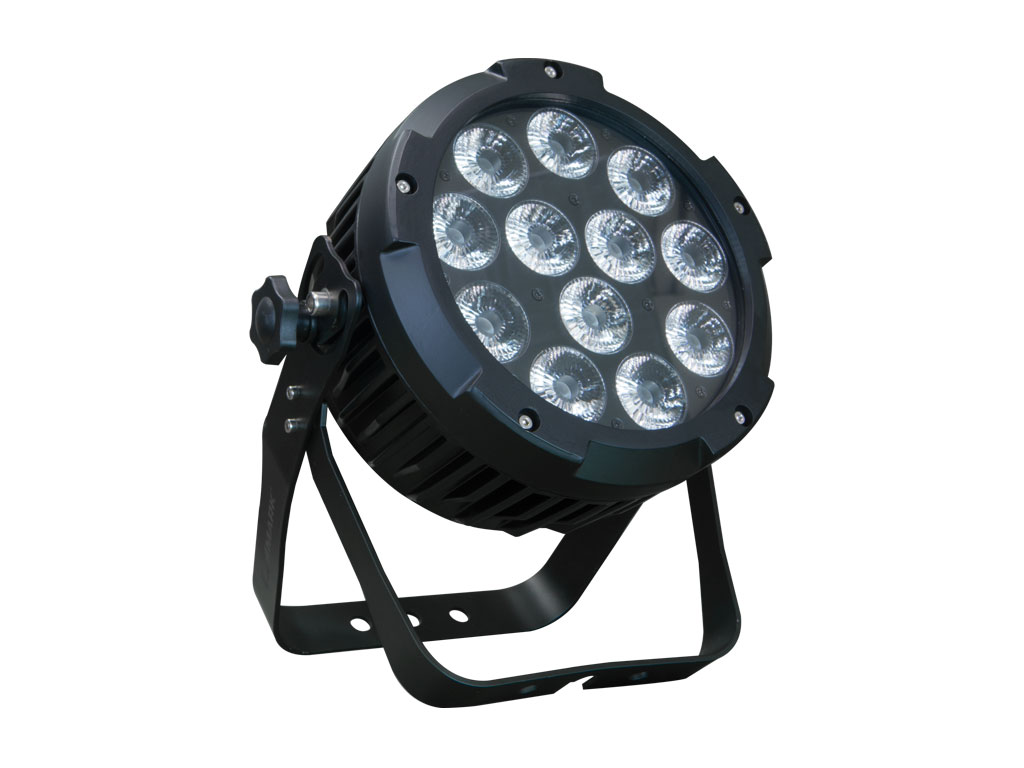

Lighting Projector. Waterproof.

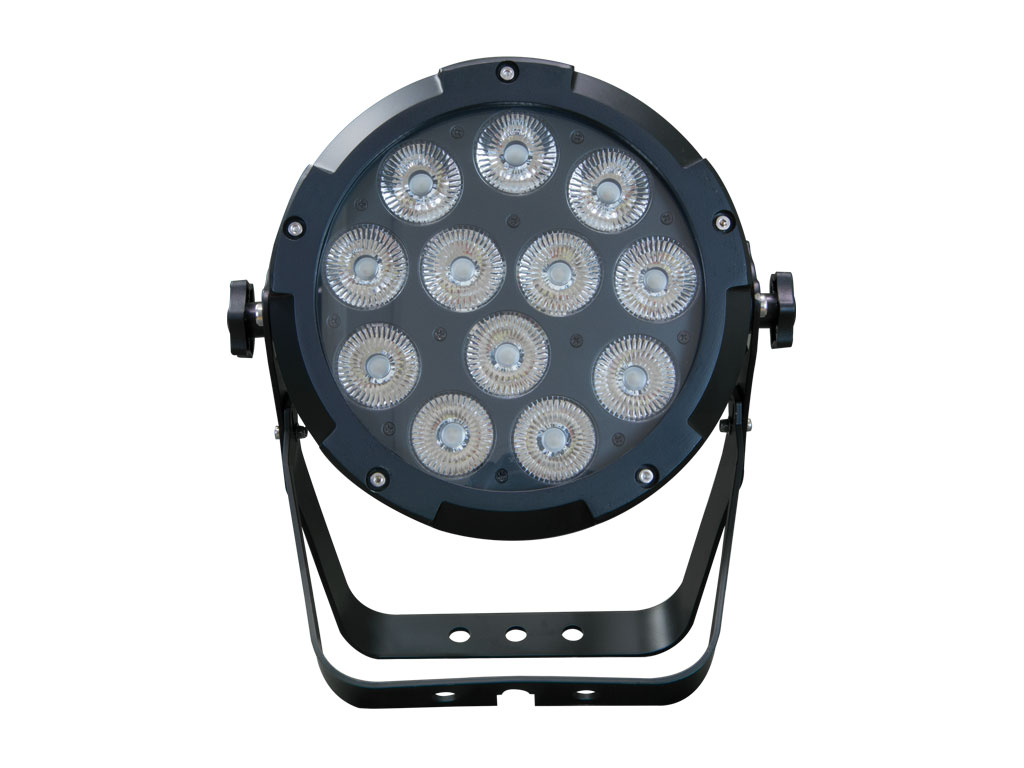

SUPERLED 144 IP is a lighting projector which includes 12x 12W RGBWA +UV (6 in 1) LEDs. These brilliant LEDs allow to obtain a rich colour spectrum mixing the red, green, blue, white, amber and ultraviolet colours.

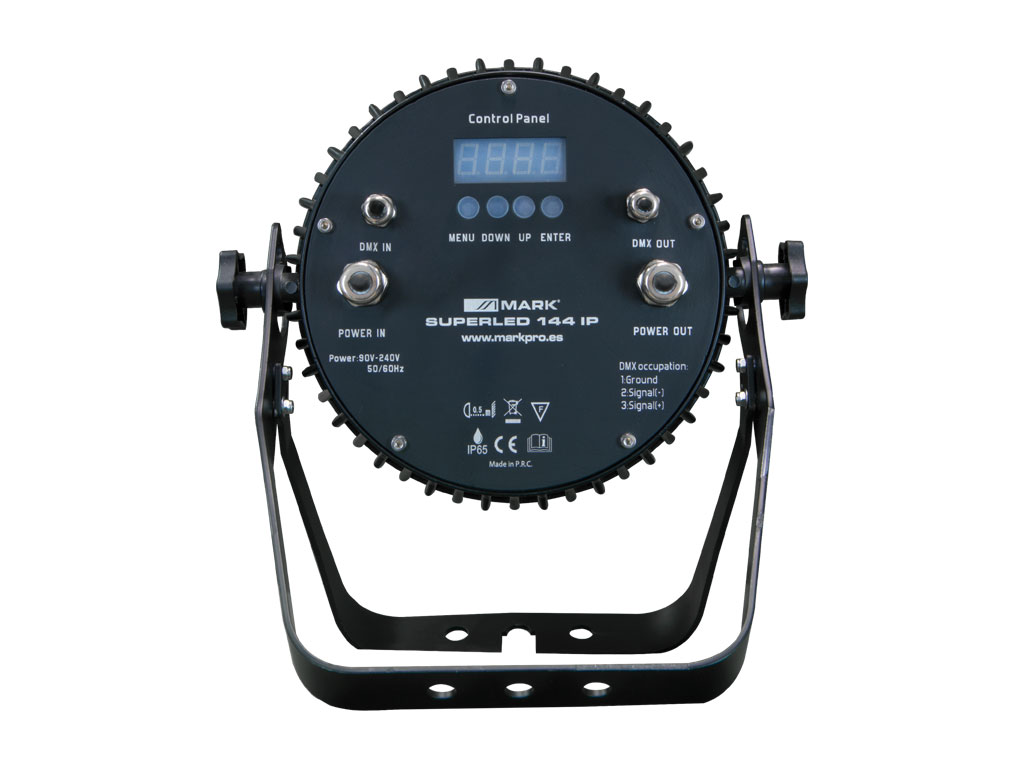

Its high IP rating (IP 65) allows to operate the unit outdoors. The configuration interface has a display with all the information and buttons to navigate through menus, selecting parameters such as: manual level of each colour, strobe or inner effects.
The device includes DMX mode (6 and 10 channels) with individual colour dimming, built-in effects and strobe function.

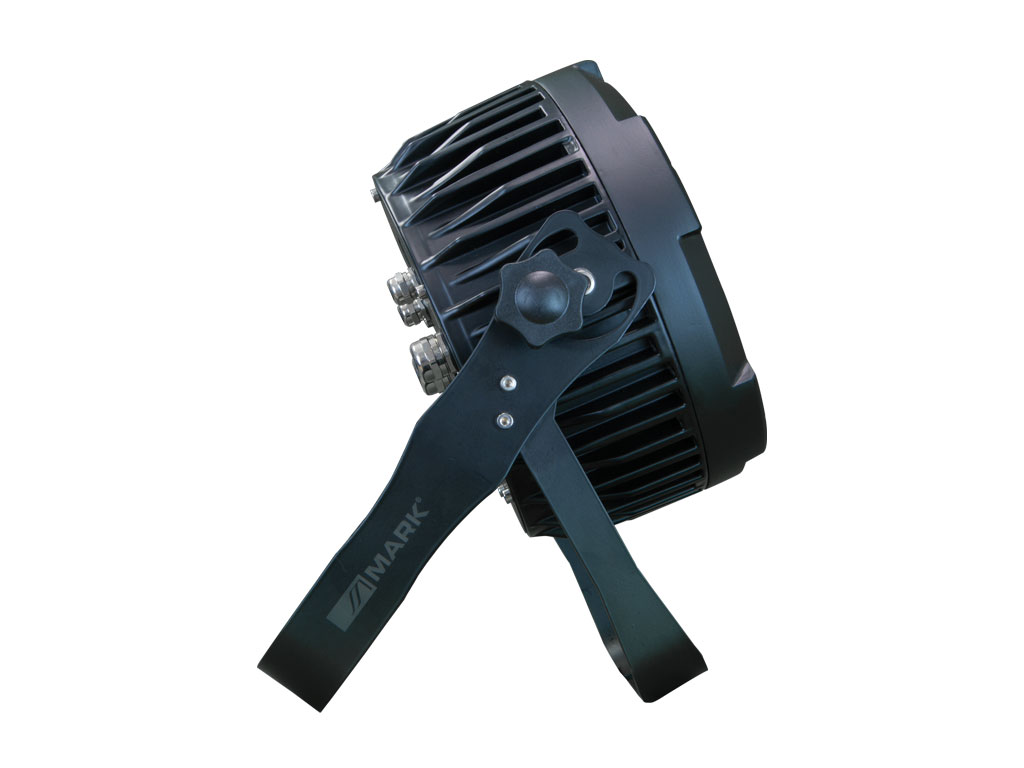

Its double handle allows to fix it in a truss or ground.
Features
- 12 x 12 W RGBWA + UV LED
- 6/10 DMX channels
- 15º beam angle
- IP 65
| Light engine | 12 x 12 W RGBWA+UV LEDs RGBWA +UV (6 en1)/ 12 x 12 W RGBWA + UV LED |
| Power | 144 W |
| Beam angle | 15º |
| DMX channels | 6/10 canales DMX/ 6/10 channels |
| Operating modes | DMX, Mater/Slave, Audio, Auto |
| Controls | Configuration menu navigation buttons |
| Indicators | 4-digits display |
| Connections | Power supply: Built-in cable for input and output; DMX: Built-in cable with XLR3 input and output connectors |
| Colour | Black |
| Rigging | Double U-bracket handle |
| IP Protection | IP 65 |
| Power supply | 90-240 V 50/60 Hz |
| Dimensions | 298 x 240 x 273 mm |
| Weight | 7 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.27 | 0.30 | 0.24 | 5.00 |
| Box | 0.27 | 0.27 | 0.33 | 5.76 |
| Master Carton | 0.57 | 0.35 | 0.47 | 21.32 |
- Lighting projector that includes 12x12W RGBWA +UV (6 in1) LEDs.
- Display and interface for setting functions.
- Strobe function.
- Outdoor use: IP 65
- 2 fixation ways: rigging or flat surface.
Manual | SUPERLED 144 IP - USER MANUAL v1_2 |  | Download |
So far, there are no questions related to this product.
Register to be able to ask a question about this product.
