Audio Installation
WGC2
82MEG430
Wall control for GPIs. 8 ports. Radio Button functionality
WGC2 is a backlit wall controller, which allows to close GPIs of other devices, in order to send control commands. It can be used with WORK PRO devices and third-party devices.
WGC2 is a device designed primarily for lighting control since the buttons on it are radio button type, that is, cannot be pressed more than one button at a time.

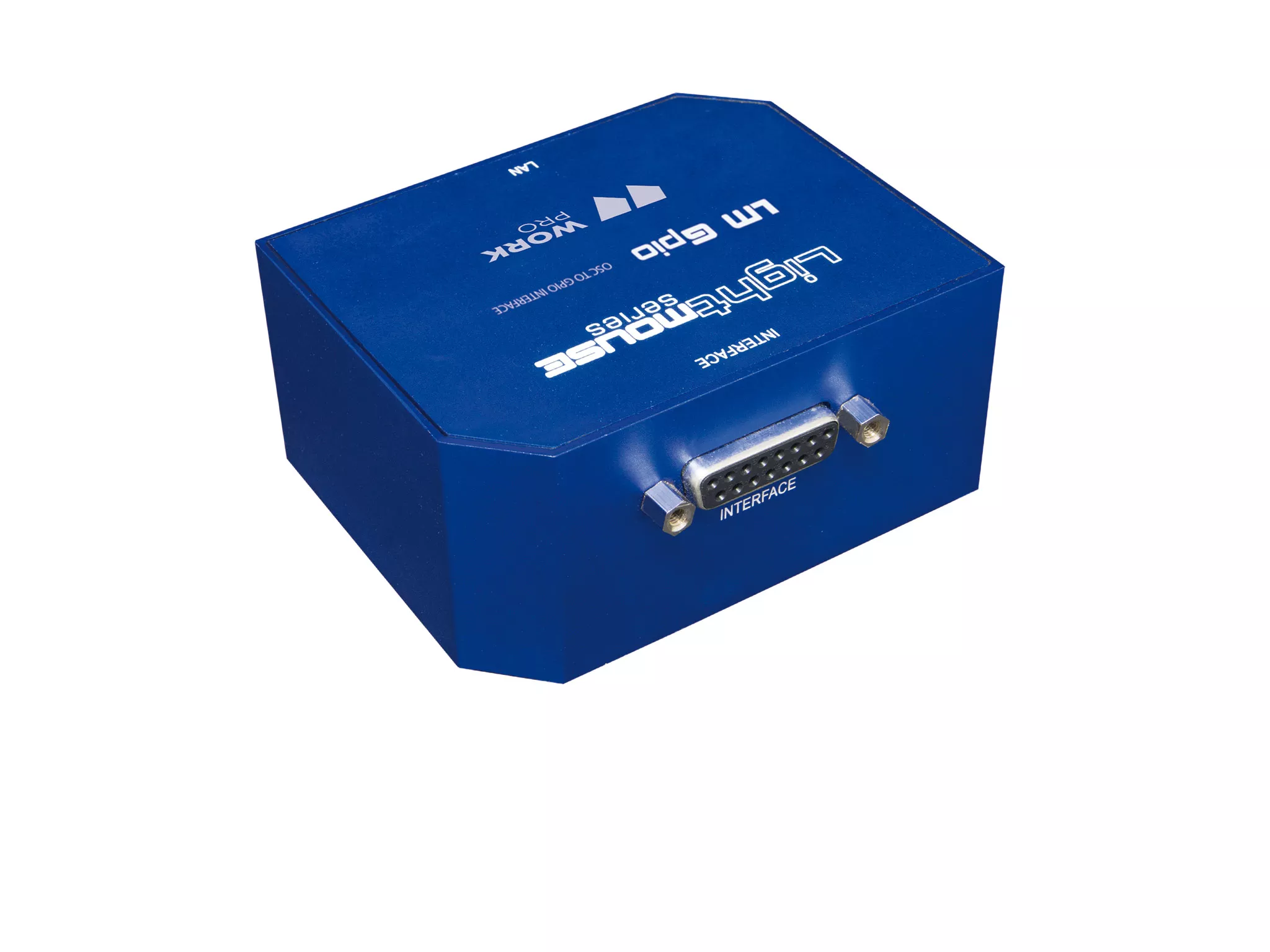

The WORK PRO devices that incorporate GPIs are the following: LM GPIO and LM SERIAL.
Features
- Wall-mounted controller with touch panel.
- Allows to close GPIs of WORK PRO devices and third-party devices.
- Backlit buttons.
- RADIO BUTTON behaviour
|
General |
|
|
Panel |
Capacitive |
|
GPOs Configuration |
Open Collector.
24 Vdc max. 1 A max. |
|
Connector |
Euroblock 9
pin. |
|
Dimensions |
85.7 mm x
85.7mm x 15.5mm |
|
Weight |
177 g |
|
Main supply |
|
|
External power
supply |
5Vdc (Not Included) |
|
Consumption |
1.6W |
- Wall-mounted controller with touch panel.
- Allows to close GPIs of WORK PRO devices and third-party devices.
- Backlit buttons.
- RADIO BUTTON behaviour
- Euroblock connector for ports and power supply.
- Compatible with European universal box (not included).
- Powered with 5Vdc 500mA mín (external power supply not incluided).
Manual | WGC2_MANUAL_ES_1_0 |  | Download |
