WTS 256
70WTS256

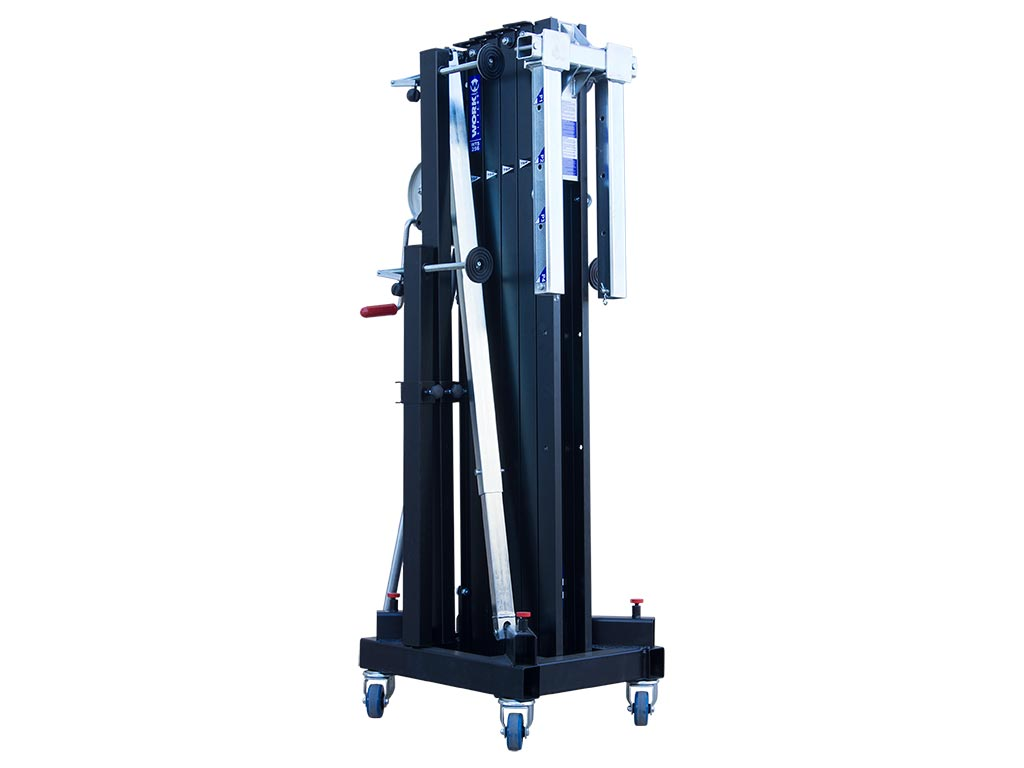

Front loading lifting tower.
The WTS Series means a change of concept within the front load towers, as it introduces the new Structural Mode. This Structural Mode does not use the winch to lift the load, but involves lifting the load with the help of a manual or electric hoist. That is, the tower is used as a structure that is all locked to the required working height. Once the tower is raised to this desired height, the load must be raised with the hoist. The Structural Mode performs improved loading capactities.
Furthermore, the WTS Series incorporates the innovative Dynamic Overlap system.
Dynamic Overlap is an innovative solution that increases the resistance of the towers and reduces their deflection, making that each tower section overlaps with the previous one at different distances, as with trees in nature. This means that all efforts are concentrated in the same way in all the sections of the tower. Thanks to this, the tower can withstand greater efforts with less deflection.
Load: 260 kg (Structural / mechanism)
Maximum height: 6.30 m.
Weight: 119.8 kg
Features
- Mechanism mode and structural mode.

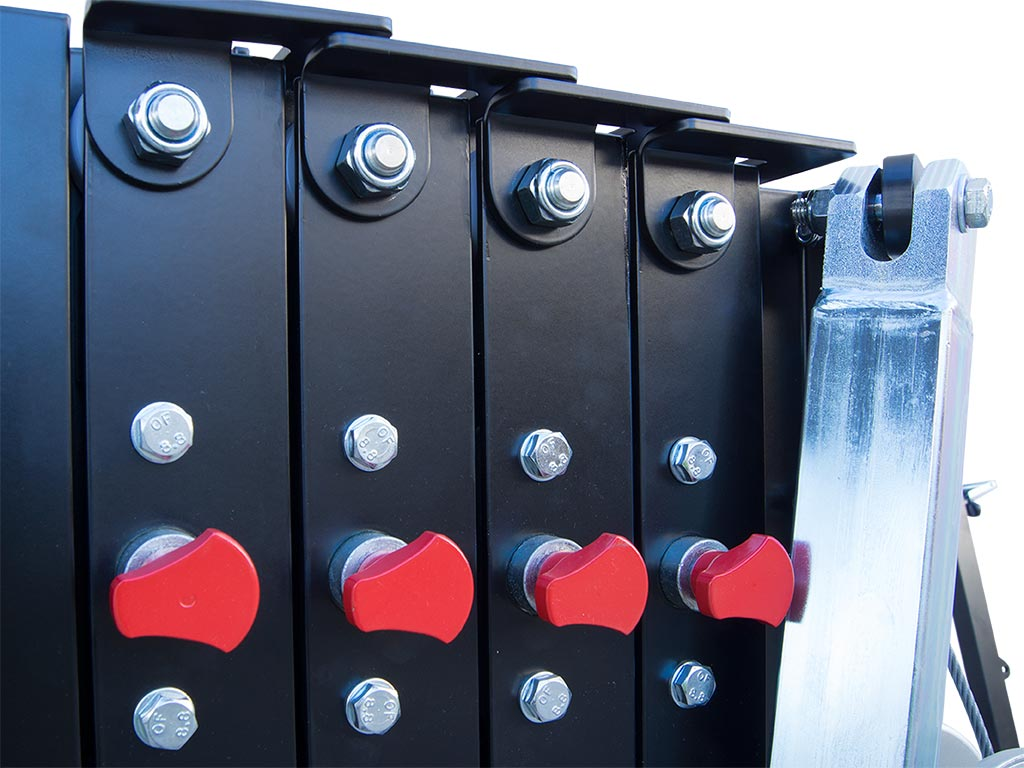

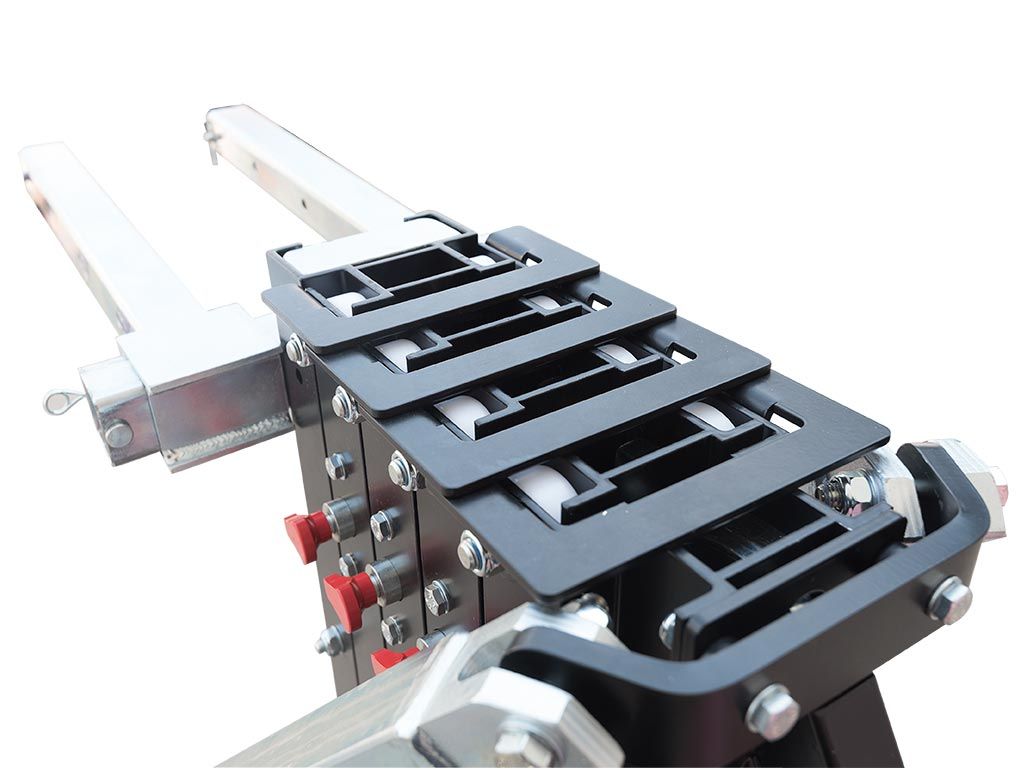

- 5 extensible sections made of extruded aluminum.

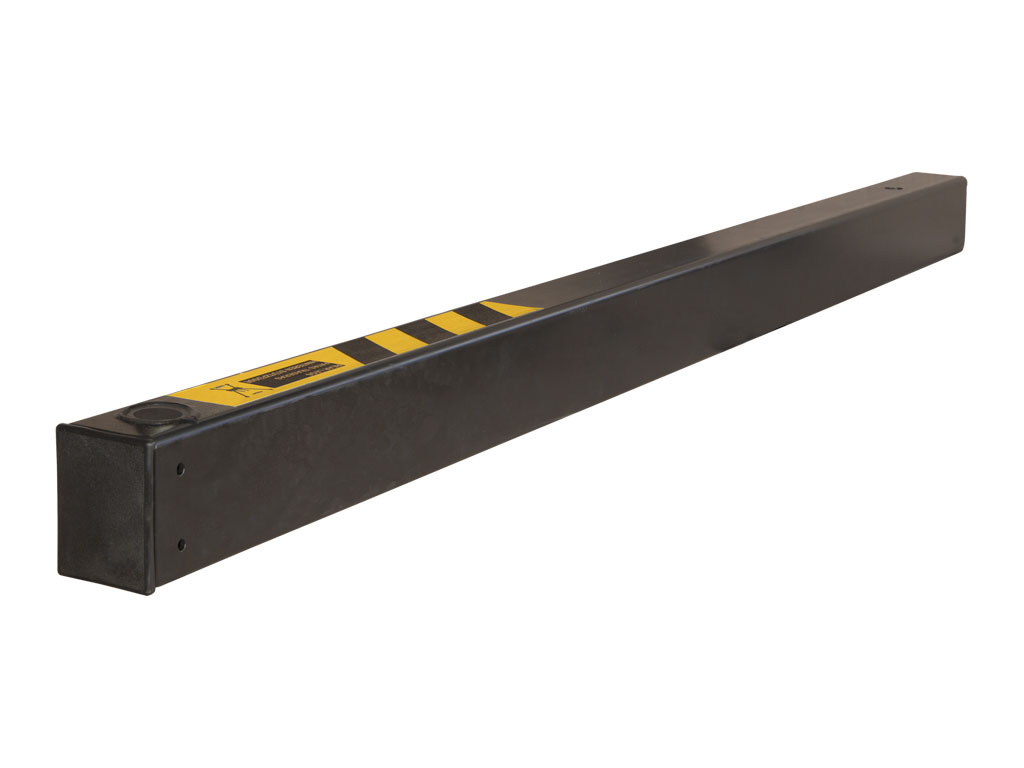

- Front and rear bars for additional reinforcement.

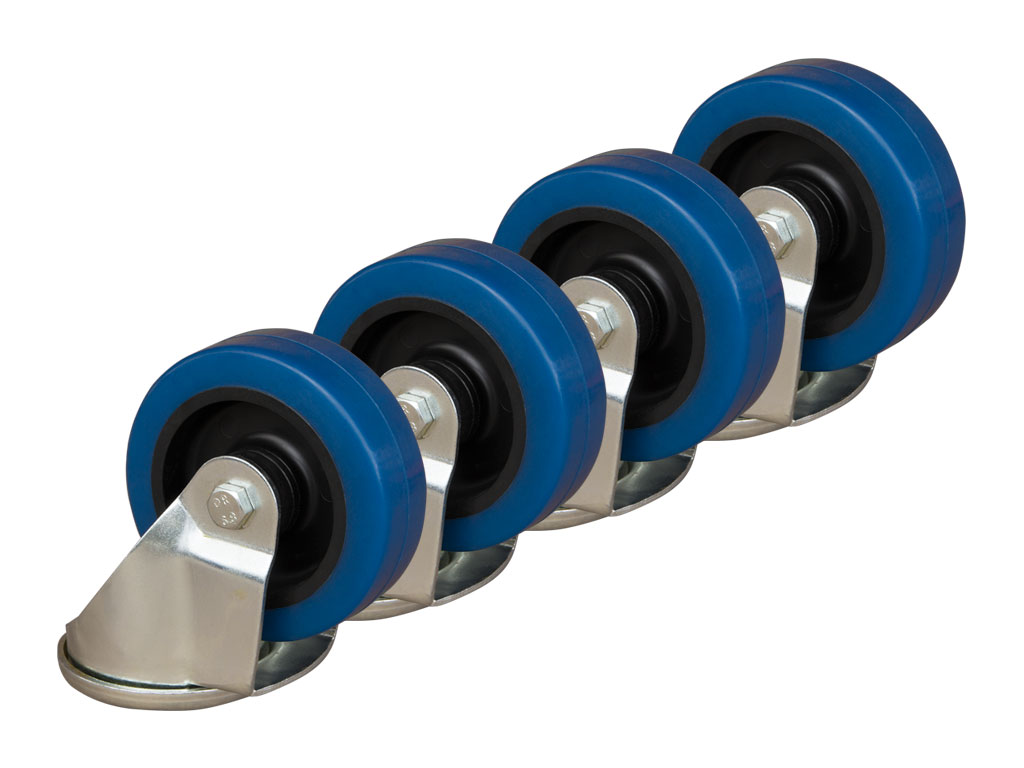

- Wheels at the base of the tower.
| Material | Aluminum and iron |

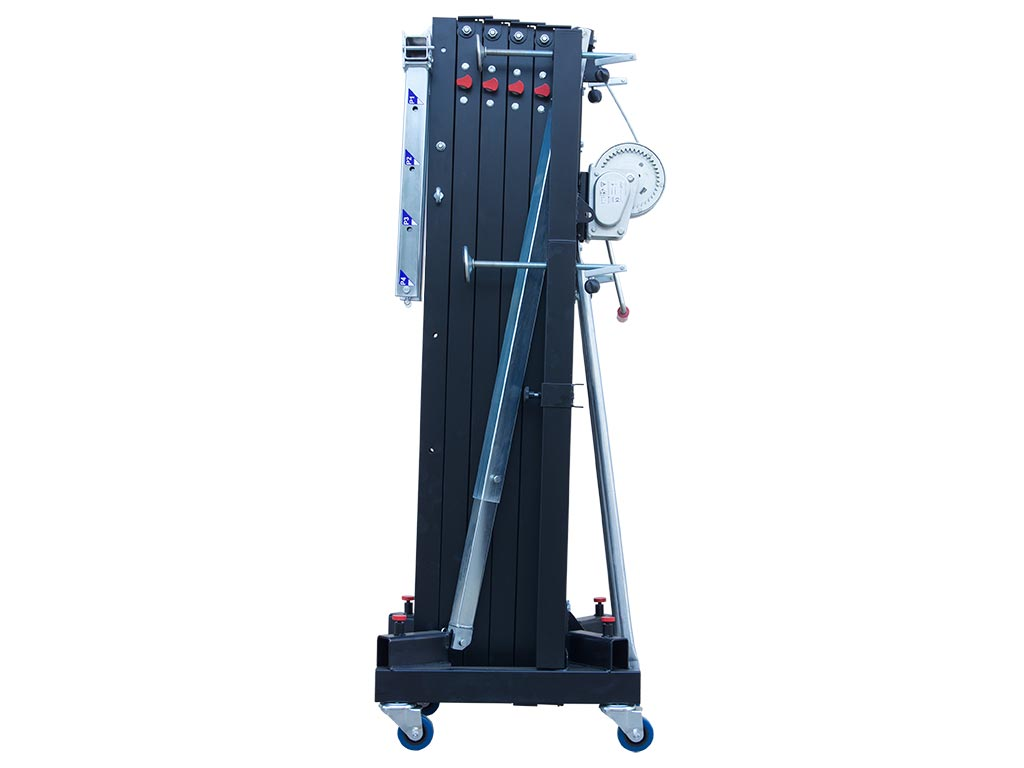

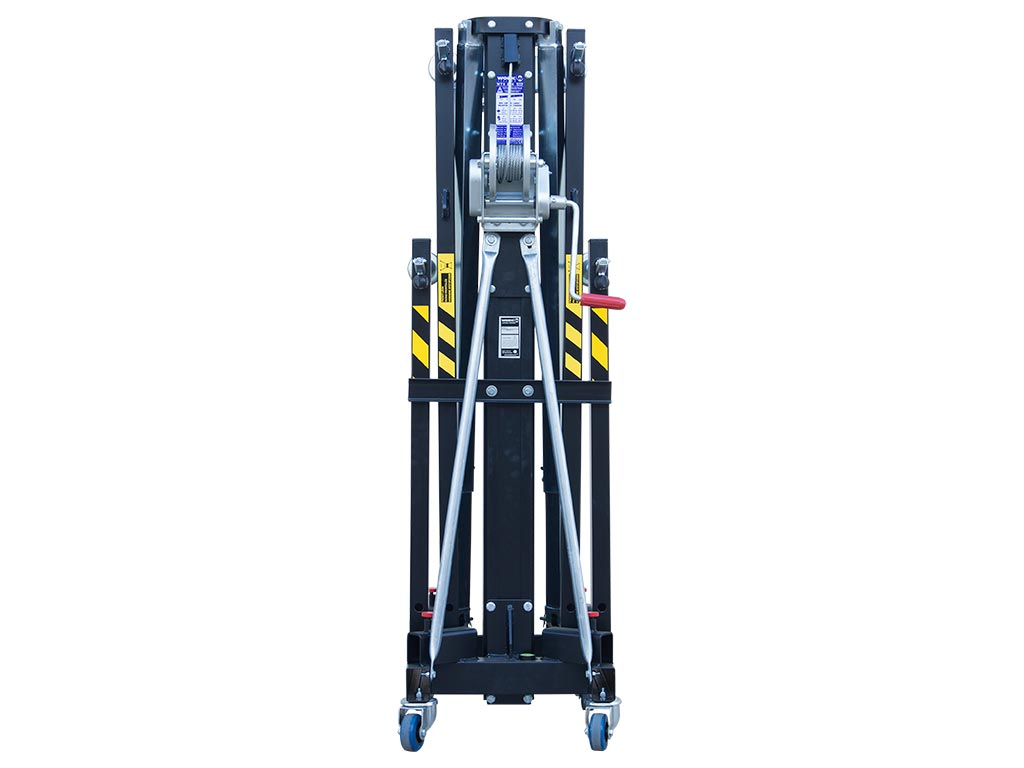

| Folded Height | 1.60 m / 5.25 ft |
| Unfolded base | 0.56 x 0.44 m / 1.84 x 1.44 ft |
| Maximum height | 6.30 m /20.66 ft |
| Minimum carriage height | 0.62 m / 2.03 ft |
| Unfolded base diameter | 2.65 m / 8.69 ft |

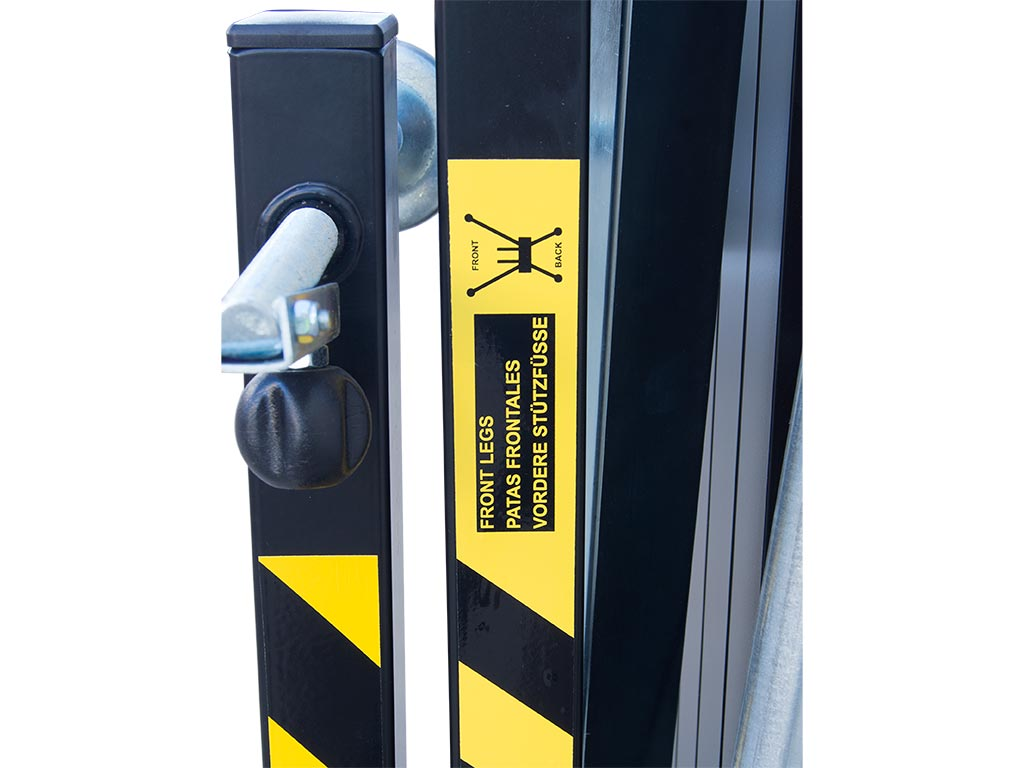

| Distance between front legs | 1.88 m / 6.17 ft |
| Distance between hind legs | 1.60 m / 5.25 ft |

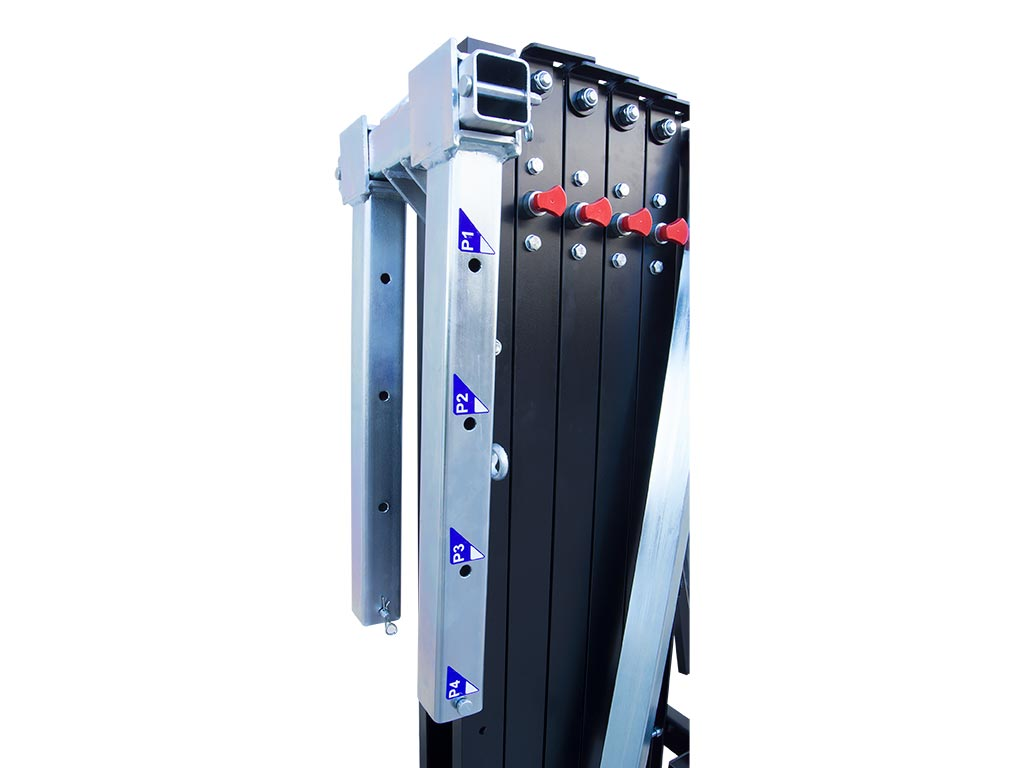

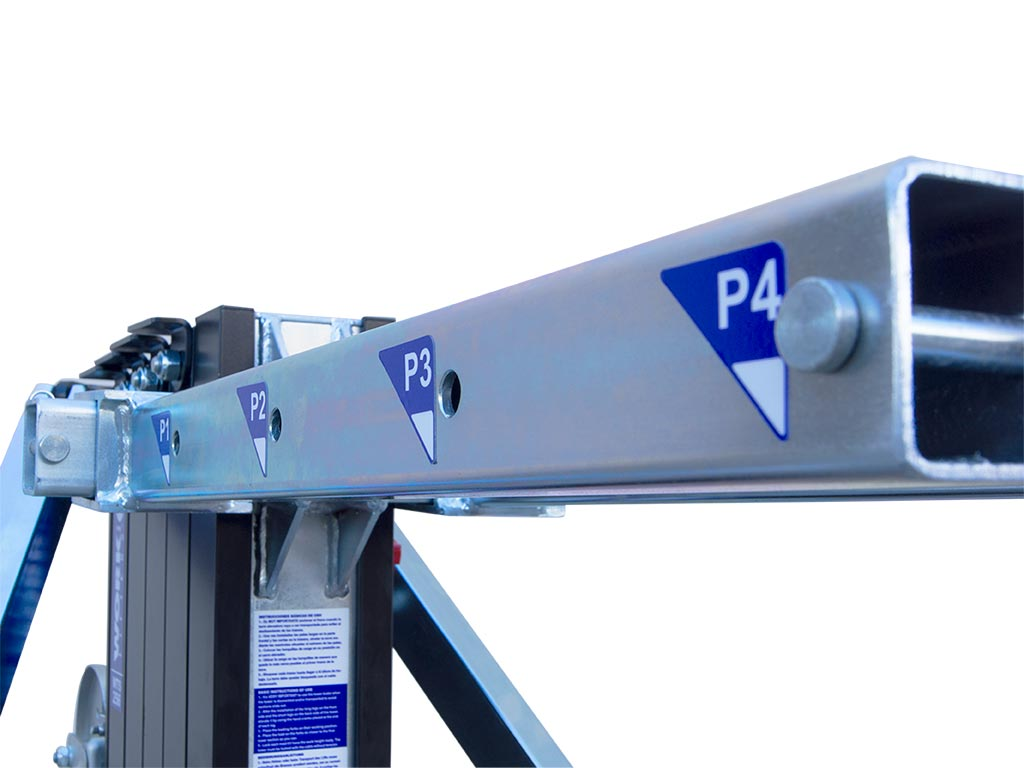

| Brackets length | 0.50 m / 1.64 ft |
| No. of sections | 5 |
| Minimum Load | 25 Kg / 55.12 Lb |
| Max load (structure mode) | 260 Kg / 573.20 Lb |
| Max load (mechanism mode) | 260 Kg / 573.20 Lb |
| Net Weight | 119.80 Kg / 264.11 Lb |
| Winch | 900 Kg / 1984.2 Lb |
| Cable diameter | 6 mm² |
| Noise Emission | 70 dB |

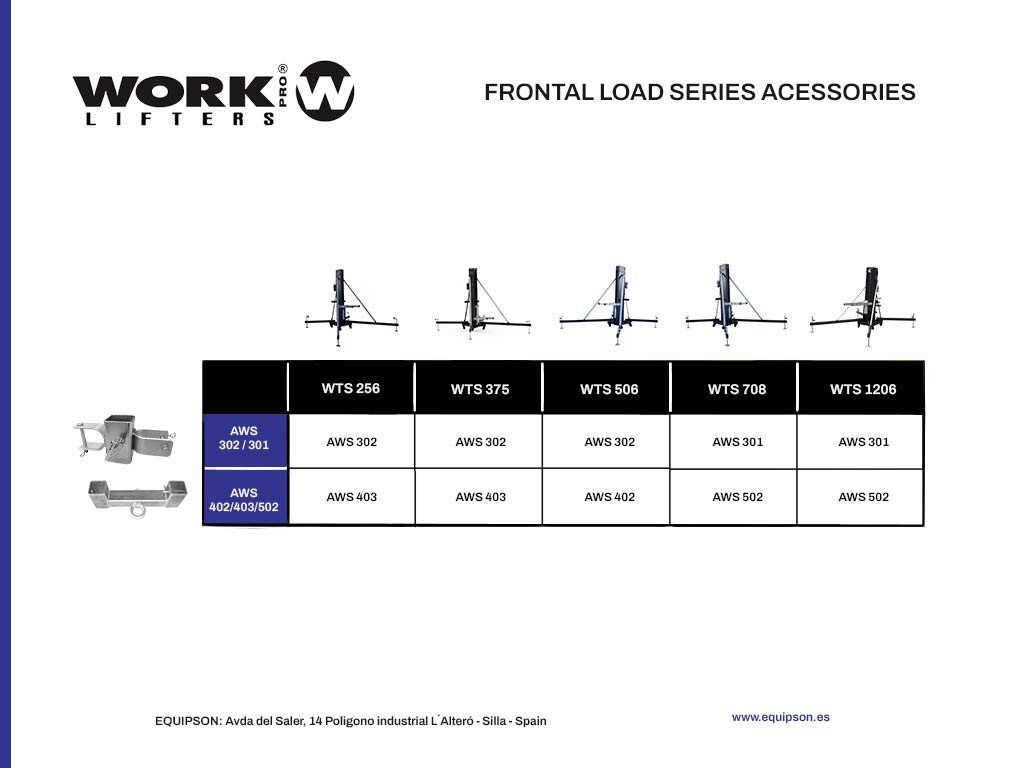

| Compatible accessories | AWS 403, AWS 302, AWS 401 |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.56 | 0.44 | 1.60 | 119.80 |
| Box | 0.10 | 0.10 | 1.98 | 120.00 |
Manual | WTS 256 - MANUAL DE USUARIO v1.6 | Download | |
Manual | WTS 256 - USER MANUAL v1.7 | Download | |
Certificate | WTS Series. Certificate |  | Download |
