THEATRE AUTOZOOM LED 200
27MAR010

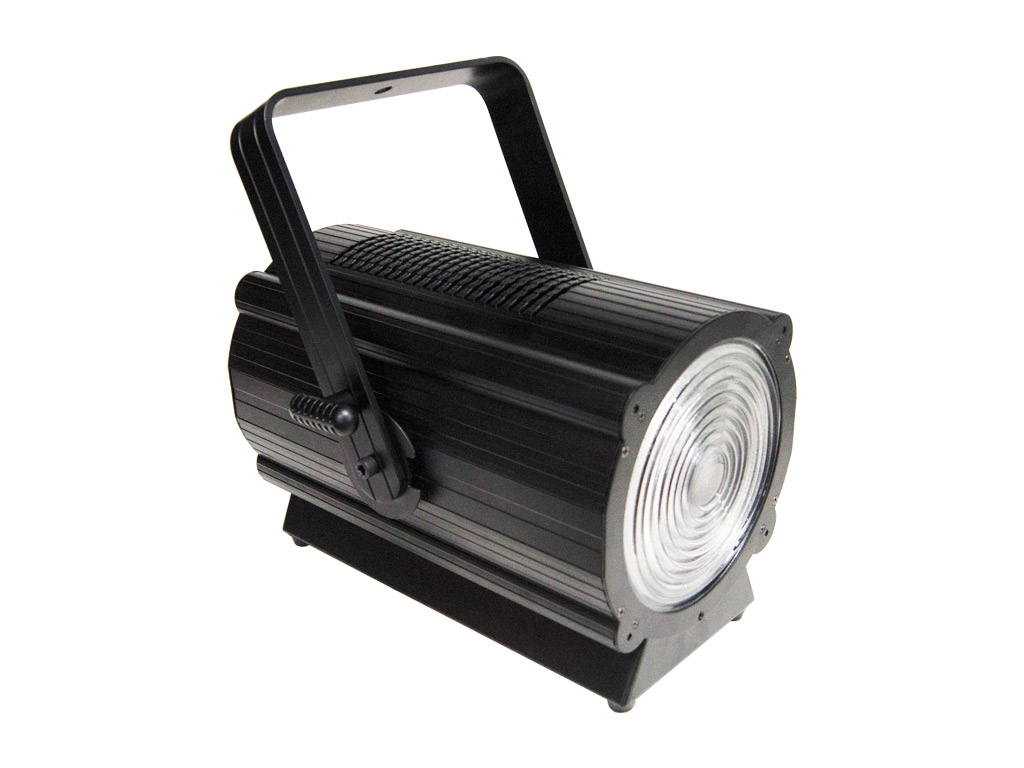

Fresnel type Lighting Projector.
THEATRE AUTOZOOM LED 200 is a lighting projector which includes 1x COB LED 200W White colour. This powerful LED allows to obtain a homogeneous white tone with 3200 K colour temperature.

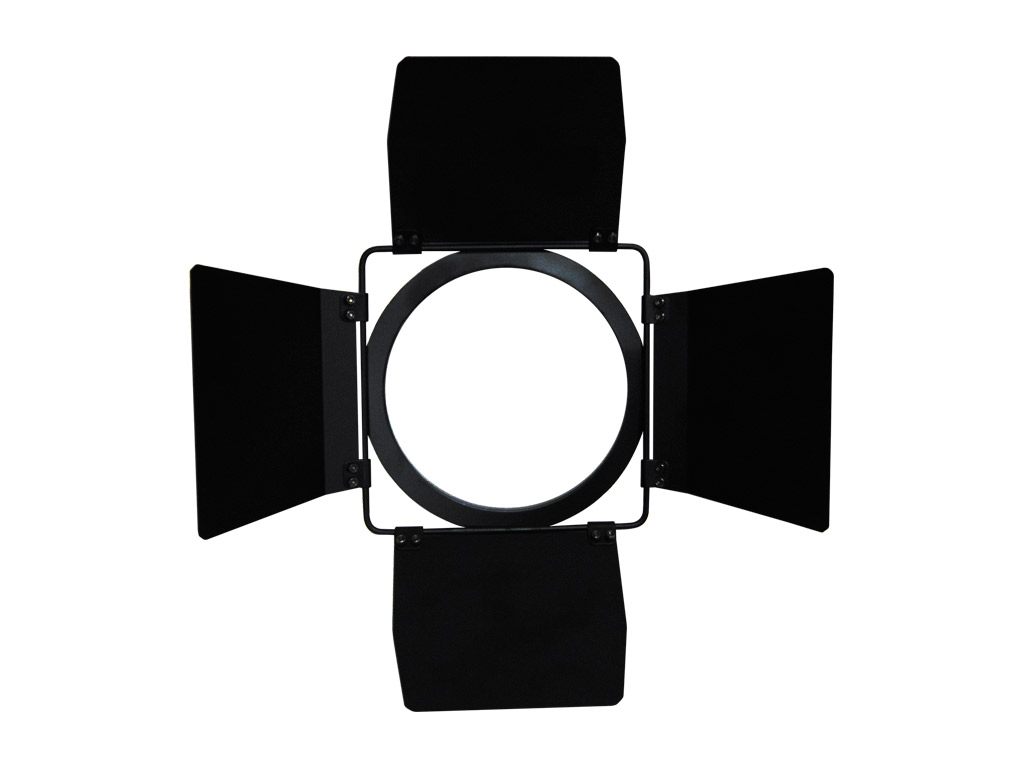

The device includes a Fresnel type lens and barndoors, making it suitable for stage applications.

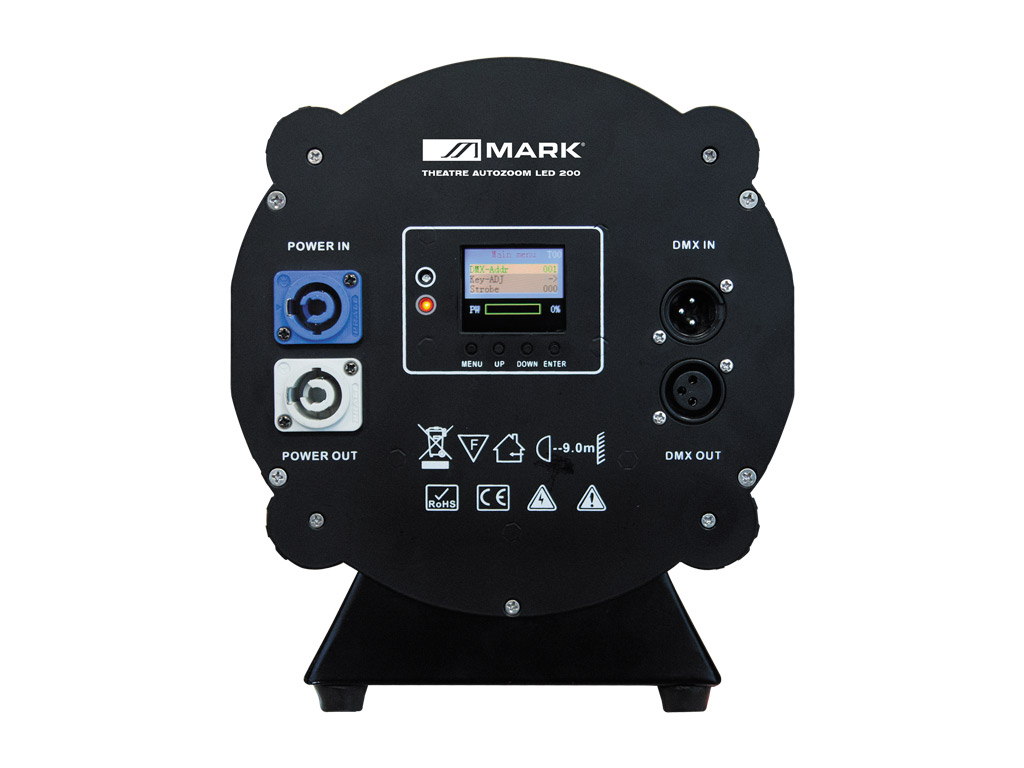

The configuration interface has LCD colour display with all the information and buttons to navigate through menus, selecting parameters such as manual dimmer level and strobe speed.
The focal length and response speed can be controlled through its DMX mode (4 channels) with dimming and strobe functions.
Features
- 1 white COB LED 200W. 3200 k.
- 4 DMX channels.
- Motorized zoom.
- Strobe function
| Light engine | 1 white COB LED 200W |
| Color temperature | 3200 k |
| Power | 200W |
| Beam angle | 20º to 50º |
| DMX channels | 4 DMX channels |
| Operating modes | DMX 512 /Manual |
| Controls | Configuration menu navigation buttons |
| Indicators | LDC display |
| Connections | Power: Powercon for input and output; Signal: XLR3 for input and output |
| Housing material | Aluminium |
| Barndoor | Yes |
| Colour | Black |
| Rigging | U-Bracket handle |
| Power supply | AC 100-240 V 50/60 Hz |
| Dimensions | 345 x 205 x 225 mm |
| Weight | 8 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.26 | 0.35 | 0.21 | 8.00 |
| Box | 0.48 | 0.35 | 0.30 | 9.52 |
- Stage lighting projector that includes 1x COB LED 200W White colour.
- 3200 K colour temperature.
- LCD display and interface for setting functions.
- Strobe function.
- Focal length and speed controlled via DMX.
Manual | THEATRE AUTOZOOM LED 200 - USER MANUAL v1.0 |  | Download |
Software | EQUIPSON_CHAMSYS_FIXTURES_12_2023 | | Download |
