MR 2200/2

59MMR222

UHF Diversity wireless system with 2 lavalier microphones.

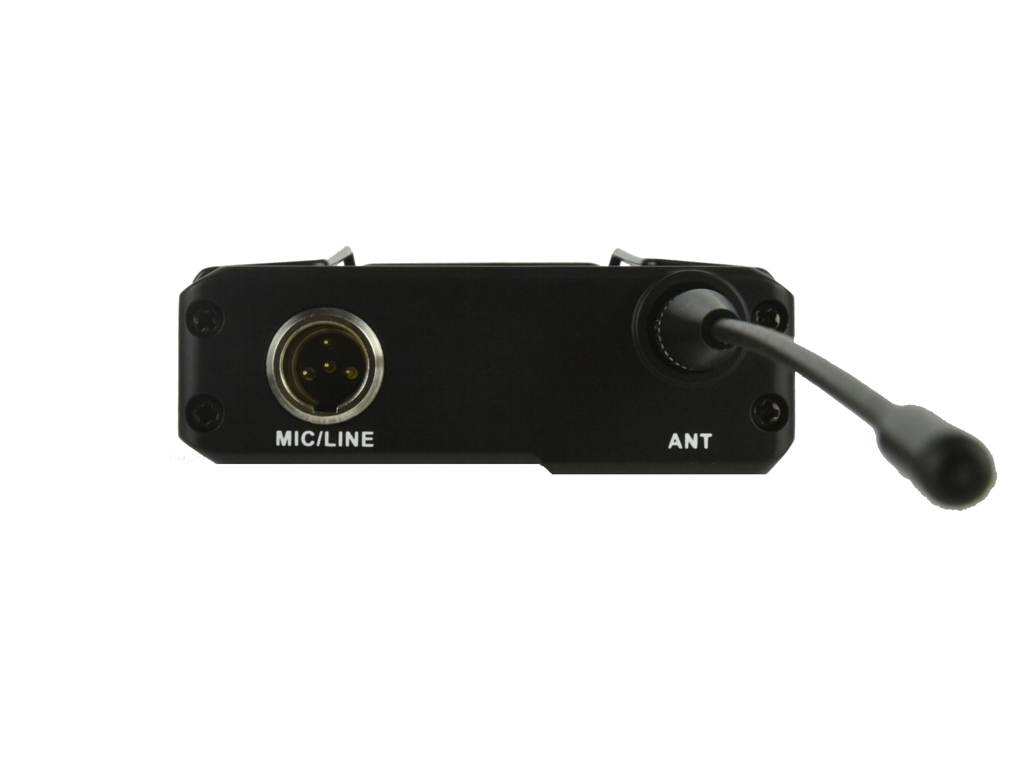

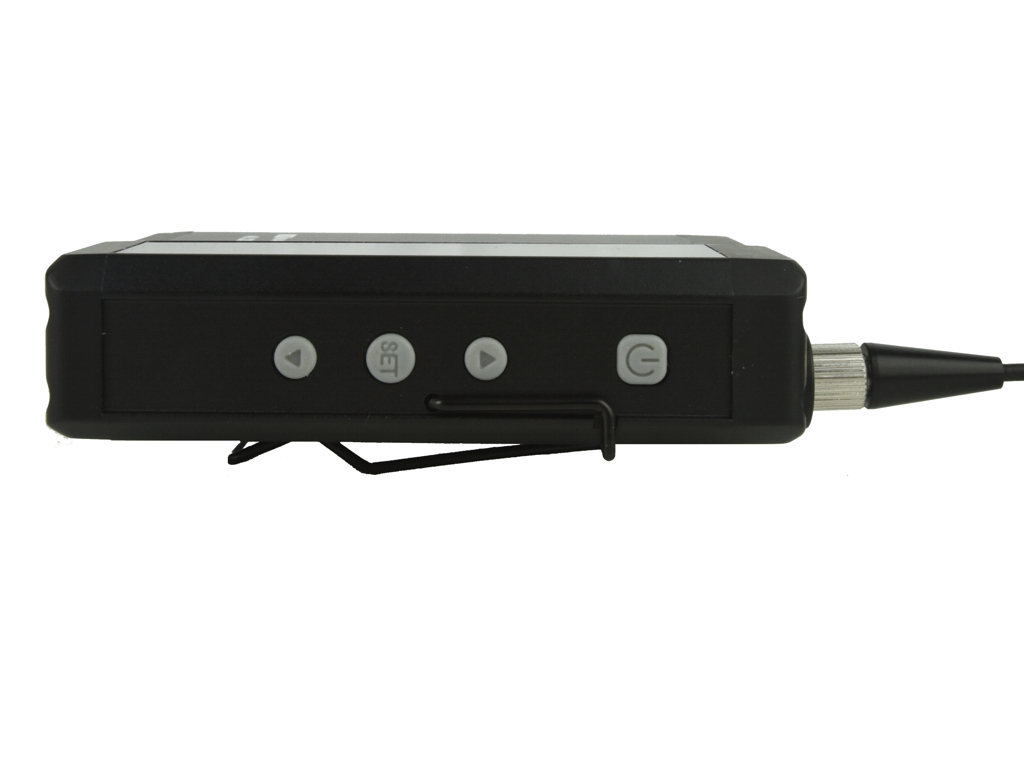

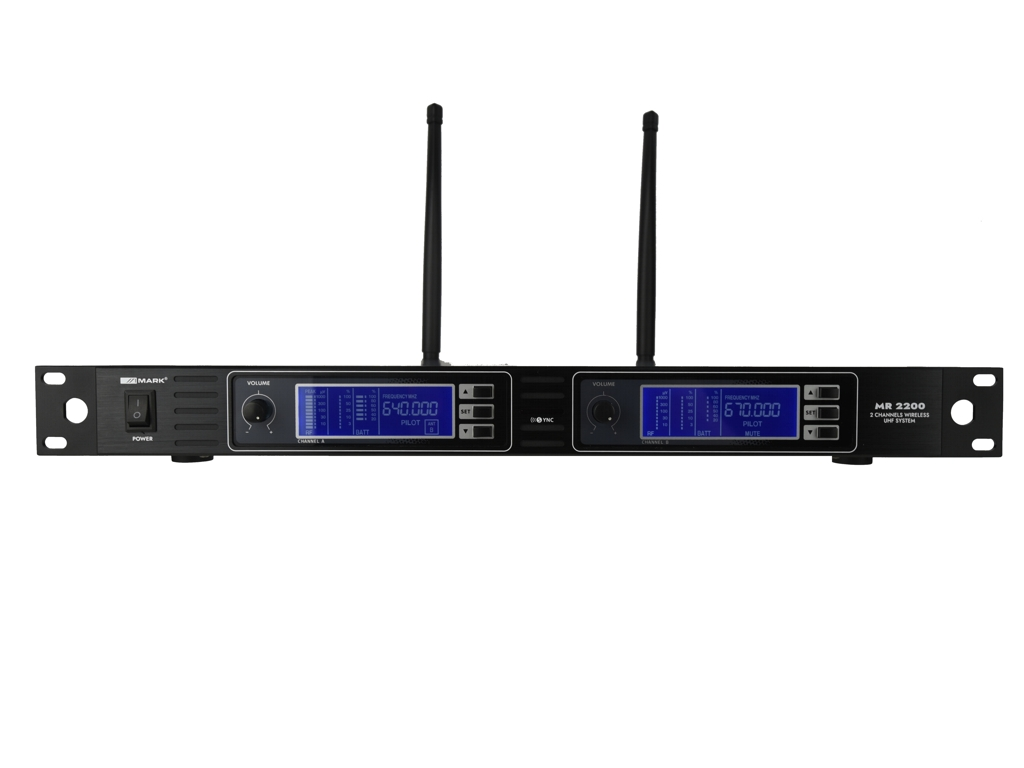

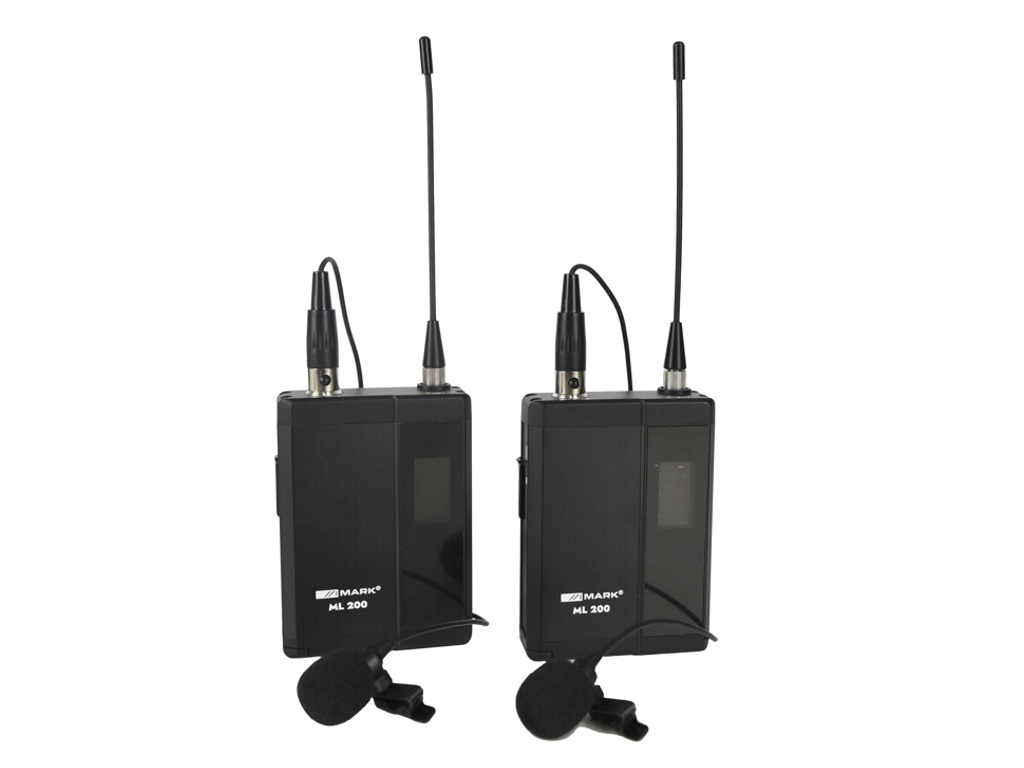

MR 2200/2 is a 2-channel diversity wireless microphone system in the UHF band (610 MHz to 640 MHz), with PLL signal stabilization system. It has an IR sensor for synchronization between transmitter and receiver. The LCD screen on the receiver shows the output frequency, AF, RF and gain level. With the buttons on the front it is possible to adjust the frequency manually, mute the tone and scan free frequencies. The receiver incorporates balanced output on each channel and unbalanced mixing for all channels. MR 2200/2 is made up of: Receiver (MR 2200) + 2 bodypack transmitters and 2 lavalier microphones (ML 200).

Features

UHF Diversity system.
610 MHz to 640 MHz.
Balanced outputs per channel.
Unbalanced output with channel mixing.

Frecuency Band	UHF true Diversity (610 MHz to 640 MHz)
Bandwidth	25 kHz
Frequency Response	20 Hz a 20 KHz
Frecuency stability	Â± 0.0005%
Sensitivity	12 dBu (80dB S/N)
S/N ratio	> 105 dB (A)
THD	< 0.5 %
Dynamic Range	> 100 dB
Audio Output	-10 dBV
Microphone capsule	Condenser

Polar pattern	Cardioid
Emtting power	30 mW
Spurious emisions	-60 dB
Continuous use	8 horas
Compatible headset	*XS 901, XS 1301, XS 1351, XS 1401, XS 1451, XS 1801 ( with XSAD5 adapter to MINI XLR 4)**
Compatible lavalier mics	XS 2000 PRO (with XSAD2 adapter)
Power supply	RECEIVER: 12-18V DC / 1000 mA, external power supply (included), EMITTER: 2 x 1.5 V (AA)
Dimensions	RECEIVER: 483 x 44 x 195 mm, EMITTER: 64 x 82 x 24 mm

Professional Diversity 2-channel wireless system in UHF band.
Frequency range: 610 - 640 MHz

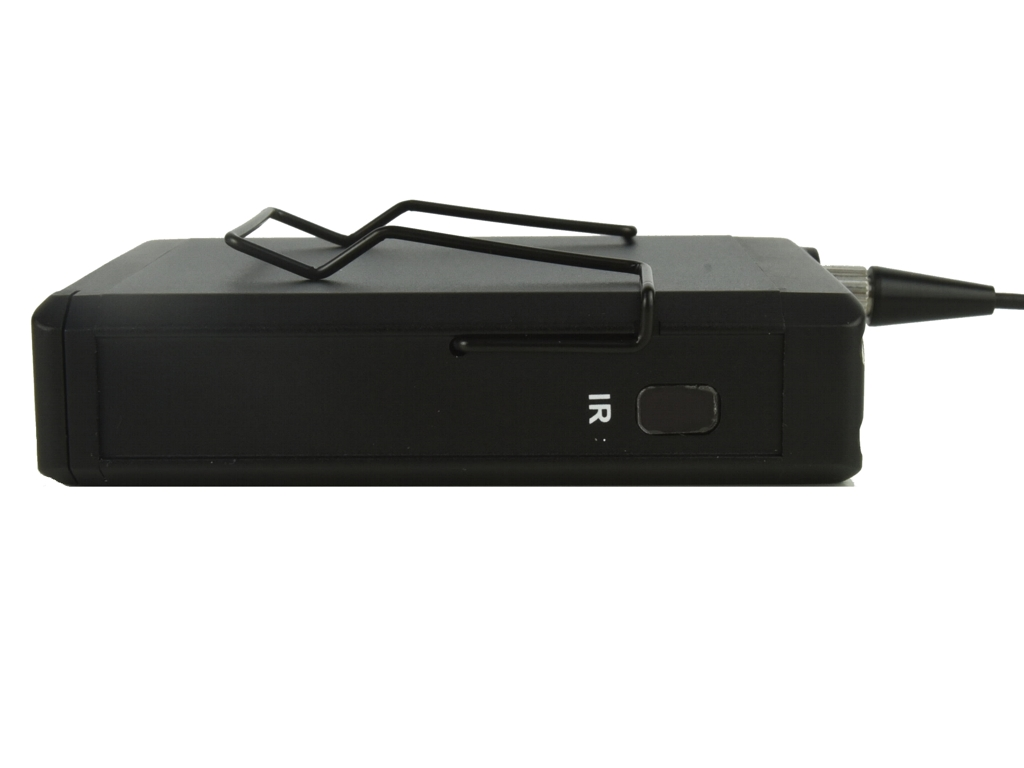

IR synchronism between receiver and microphones.
LCD display with AF, RF, gain and frequency information.
Manual adjustment, free frequencies scan and squelch level functions.

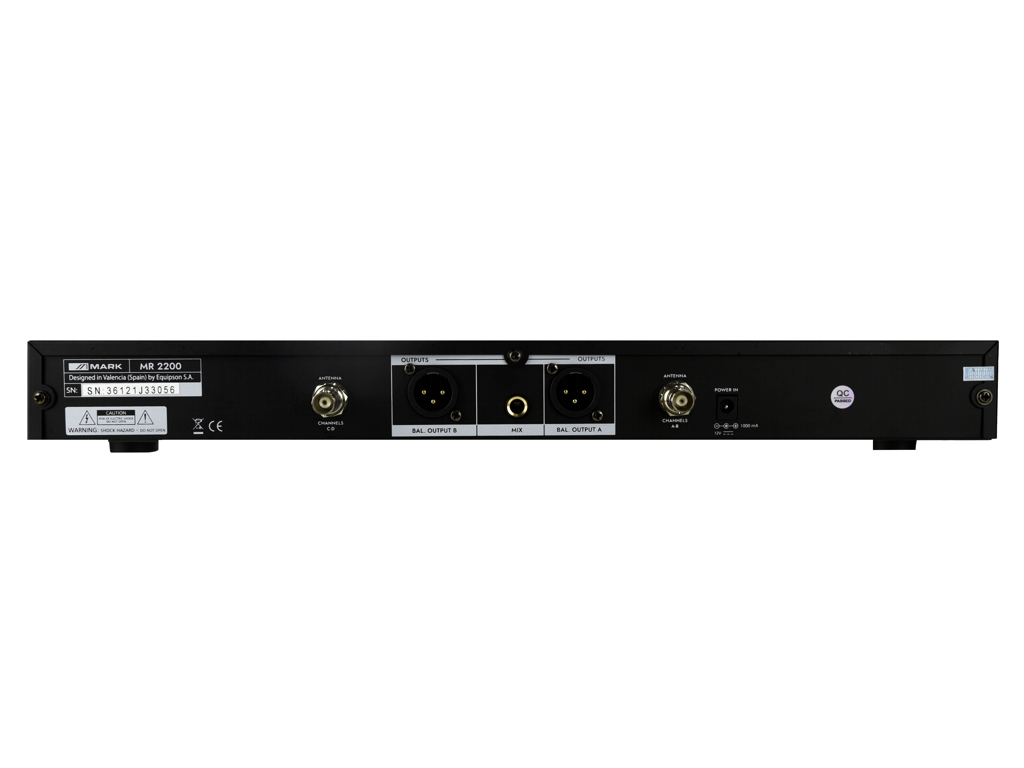

Balanced and mix unbalanced outputs.
WR 2200/1 consists of: Receiver (WR 2200) + 2 bodypack transmitter + 2 lavalier microphone (WL 200).
