MR 4200/2

59MMR423

Quadruple wireless system with 4 lavalier microphones.

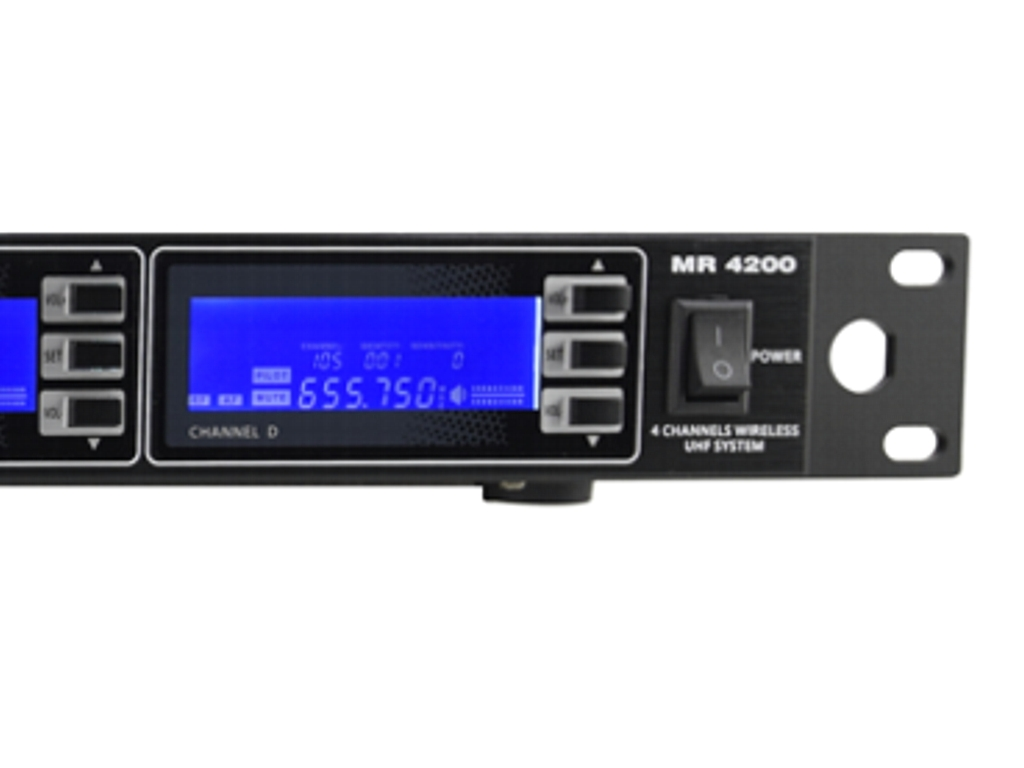

MR 4200 /2 is a 4-channel diversity wireless microphone system in the UHF band (610 MHz to 640 MHz), with PLL signal stabilisation system. It has an IR sensor for synchronisation between transmitter and receiver. The LCD display on the receiver shows frequency, AF, RF and output gain level. With the buttons on the front it is possible to adjust the frequency manually, mute the tone and scan for free frequencies. The receiver incorporates balanced output on each channel and unbalanced mix for all channels. MR 4200/2 consists of: Receiver (MR 4200) + 4 bodypack transmitters and 4 lavalier microphones (ML 200).

Features

  • UHF Diversity System.
  • 610 MHz to 640 MHz.
  • Balanced outputs for each channel.
  • Unbalanced output with channel mixing.
Frecuency BandUHF true Diversity (610 MHz to 640 MHz)
Bandwidth25 kHz
Frequency Response20 Hz a 20 KHz
Frecuency stability± 0.0005%
Sensitivity12 dBu (80dB S/N)
S/N ratio> 105 dB (A)
THD< 0.5 %
Dynamic Range> 100 dB
Audio Output-10 dBV
Microphone capsuleCapacitor
Polar patternCardioid
Emtting power30 mW
Spurious emisions-60 dB
Continuous use8 hours
Compatible headsetXS 901, XS 1301, XS 1351, XS 1401, XS 1451, XS 1801 (* with adapter XSAD5 to MINI XLR 4)
Compatible lavalier micsXS 2000 PRO (with XSAD2 adapter)
Power supplyRECEIVER: 12-18V DC / 1000 mA, external power supply (included), SENDER: 2 x 1.5 V (AA)
DimensionsRECEIVER: 483 x 44 x 195 mm, TRANSMITTER: 64 x 82 x 24 mm
  Manual
Download
