Cable and Accessories
M DRUM XL 100
65LSD103
Audio
100 m

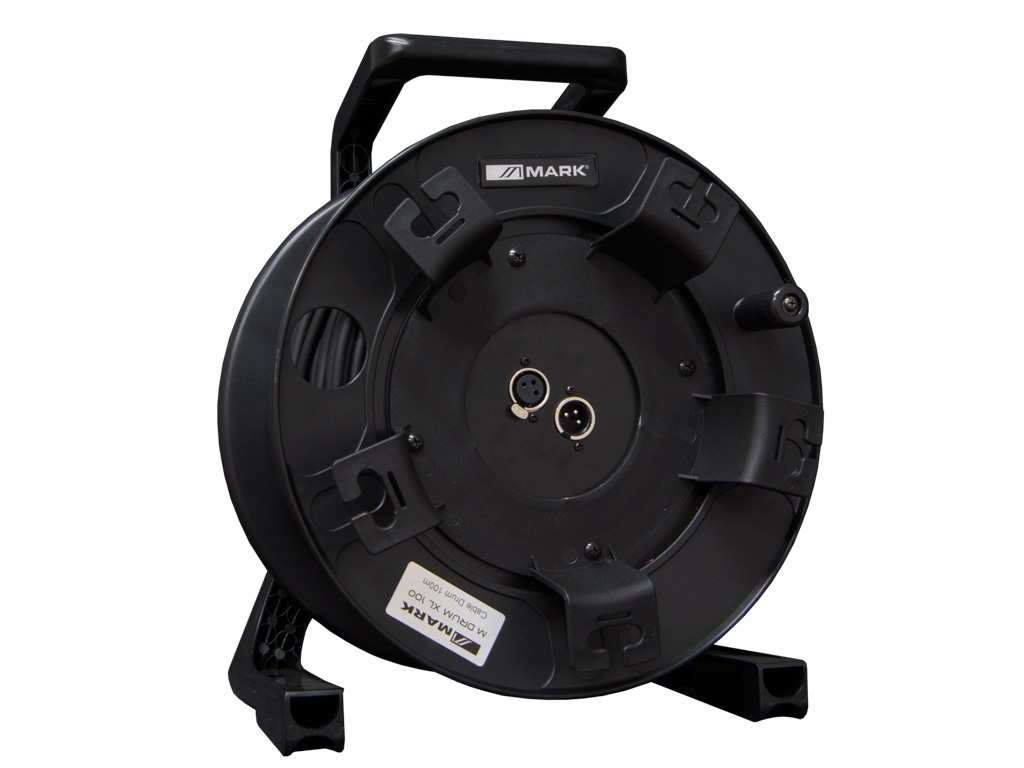

Microphone cable with reel
Professional microphone cable reel cart (low impedance), 100 m long and heavy duty, with 1 x 3-pin XLR male aerial connector, and at its base, 1 x XLR female and 1 x XLR male connection.
Features

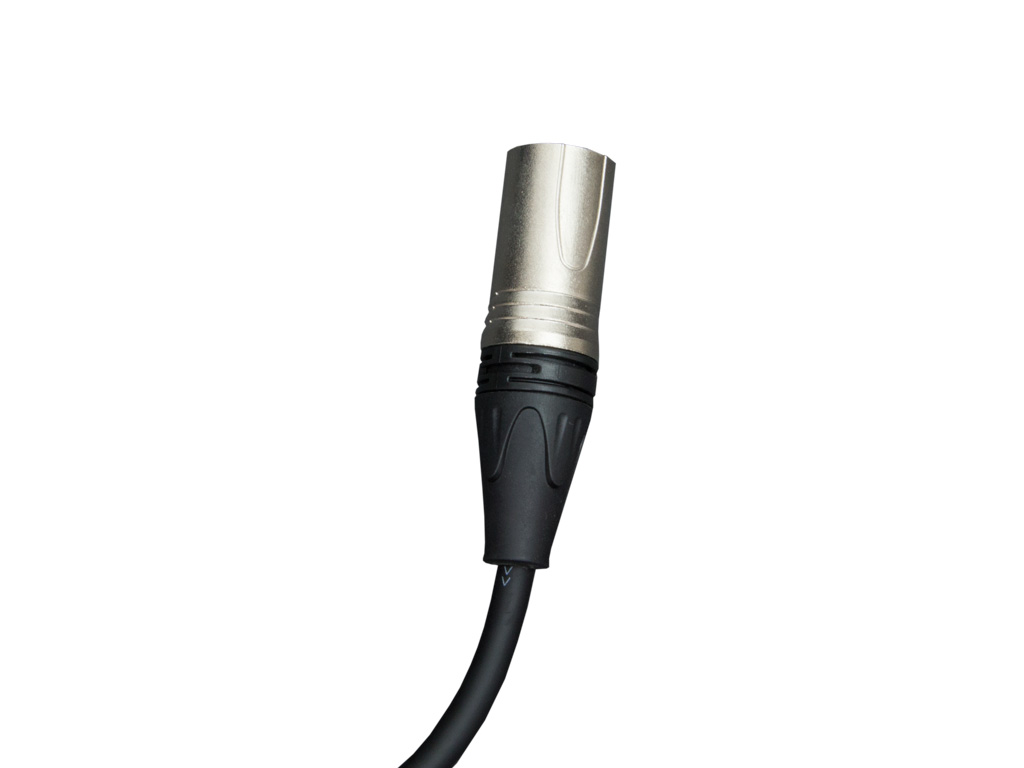

- XLR3 aerial male - XLR3 base male/female.
- 100 metres length.
| Type | Audio signal |
| Connections | XLR3 male aerial XLR3 - XLR3 male/female base |
| Length | 100 metros/ 100 m |
| Diameter | 6.5 mm |
| AWG | 22 |
| Conductors | 2 x 0.34 mm² |
| Threads per conductor | 19 x 0.15 mm |
| Conductor insulation | PE 1.50 mm |
| Shield | Copper spiral copper shielding with 80 x 0.10 mm |
| Shield factor | 95 % |
| Temperature range | -20 ºC to +70 ºC |
| Conductor capacitance | 58 pF/m |
| Shield capacitance | 115 pF/m |
| Conductor resistance | 53 Ohm/Km |
| Shielding resistance | 25 Ohm/Km |
| Insulation resistance | > 1 GOhm |
| Characteristic impedance | 100 Ohm |
| Colour | Black |
Noiseless microhpone cable with low capacity.
At its base 2 XLR connection.
Its total length is 100 meters.
95% shielded.
At its base 2 XLR connection.
Its total length is 100 meters.
95% shielded.
